DeWalt DW060 Manual De Instrucciones

D WALT Industrial Tool Co., 701 Joppa Road, Baltimore, MD 21286
E
(APR06) Form No. 643180-00
The following are trademarks for one or more D
the "D" shaped air intake grill; the array of pyramids on the handgrip; the kit box configuration; and the array
of lozenge-shaped humps on the surface of the tool.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please
read the manual and pay attention to these symbols
DANGER: Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D
CALL US TOLL FREE AT: 1-800-4-D
Safety Instructions for Lasers
WARNING! Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
personal injury.
SAVE THESE INSTRUCTIONS
WARNING! Laser Radiation Exposure. Do not disassemble or modify the laser level.
There are no user serviceable parts inside. Serious eye injury could result.
WARNING: Hazardous Radiation. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
• Do not operate the laser in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust
or fumes.
• Use the laser only with the specifically designated batteries. Use of any other batteries
may create a risk of fire.
• Store idle laser out of reach of children and other untrained persons. Lasers are dan-
gerous in the hands of untrained users.
• Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one laser, may create a risk of injury when used on
another laser.
• Tool service must be performed only by qualified repair personnel. Service or mainte-
nance performed by unqualified personnel may result in injury. To locate your nearest
D WALT service center call
E
http://www.dewalt.com on the Internet.
• Do not use optical tools such as a telescope or transit to view the laser beam. Serious
eye injury could result.
• Do not place the laser in a position which may cause anyone to intentionally or unin-
tentionally stare into the laser beam directly or off of a reflective surface. Serious eye
injury could result.
• Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring
into the laser beam.
• Do not disassemble the laser tool. There are no user serviceable parts inside.
• Do not modify the laser in any way. Modifying the tool may result in Hazardous Laser
Radiation Exposure.
• Do not operate the laser around children or allow children to operate the laser.
Serious eye injury may result.
• Do not remove or deface warning labels. Removing labels increases the risk of exposure
to radiation.
• Position the laser securely on a level surface. Damage to the laser or serious injury
could result if the laser falls.
DW060 Copyright © 2006 D
WALT power tools: the yellow and black color scheme;
E
WALT (1-800-433-9258)
E
1-800-4-DEWALT (1-800-433-9258)
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other con-
struction activities contains chemicals known to the State of California to cause cancer, birth
defects, or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to
filter out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,
and other construction activities. Wear protective clothing and wash exposed areas
with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may
promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disburse dust, which may cause serious
and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory pro-
tection appropriate for the dust exposure. Direct particles away from face and body.
• The label on your tool may include the following symbols.
V ............................volts
mW ........................milliwatts
................laser warning symbol
nm ..........................wavelength in nanometers
II..............................Class 2 Laser
IIIa ..........................Class 3a Laser
WARNING LABELS
For your convenience and safety, the following label is on your laser.
CAUTION: LASER RADIATION - DO NOT STARE INTO THE LASER BEAM.
CLASS 2 LASER PRODUCT.
CAUTION: CLASS 2 LASER RADIATION WHEN OPEN DO NOT STARE INTO
THE BEAM.
WALT
E
Laser Information

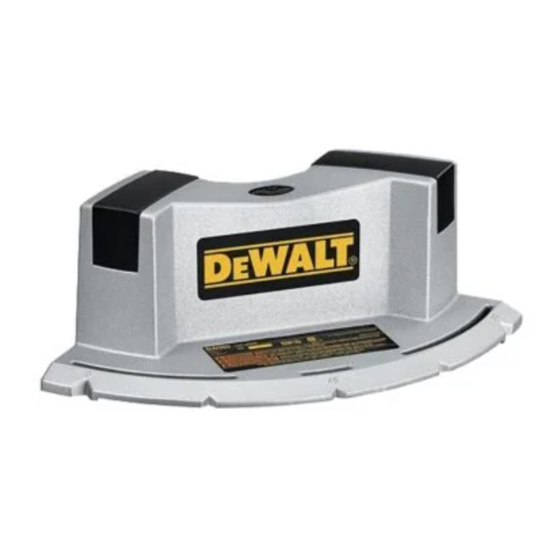

The DW060 Floor Tile Laser is a Class 2 laser product and complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to laser notice No. 50, dated July 26, 2001.
INTRODUCTION
The DW060 Floor Tile Laser can be used inside and outside for tile layout and other alignment
projects.
General Safety Rules For Battery Operated Tools
WARNING! Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
personal injury.
WORK AREA
• Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
WALT TOOL,
E
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or
fumes.
• Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Use battery operated tool only with the specifically designed batteries. Use of any
other batteries may create a risk of fire.
Battery
This tool is powered by two 1.5V C-size batteries.
CAUTION: Point lasers away from yourself and others. Laser may come on when inserting
battery.
WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce this
risk:
• Carefully follow all instructions and warnings on the battery label and package.
• Always insert batteries correctly with regard to polarity (+ and –), marked on the battery
and the equipment.
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries
of the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
or go to
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair
can be caught in moving parts. Air vents often cover moving parts and should also be
avoided.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.
