Overview

Different electric power tools are described in these instructions. The illustrated electric power
tool may differ in detail from the one which you purchased.

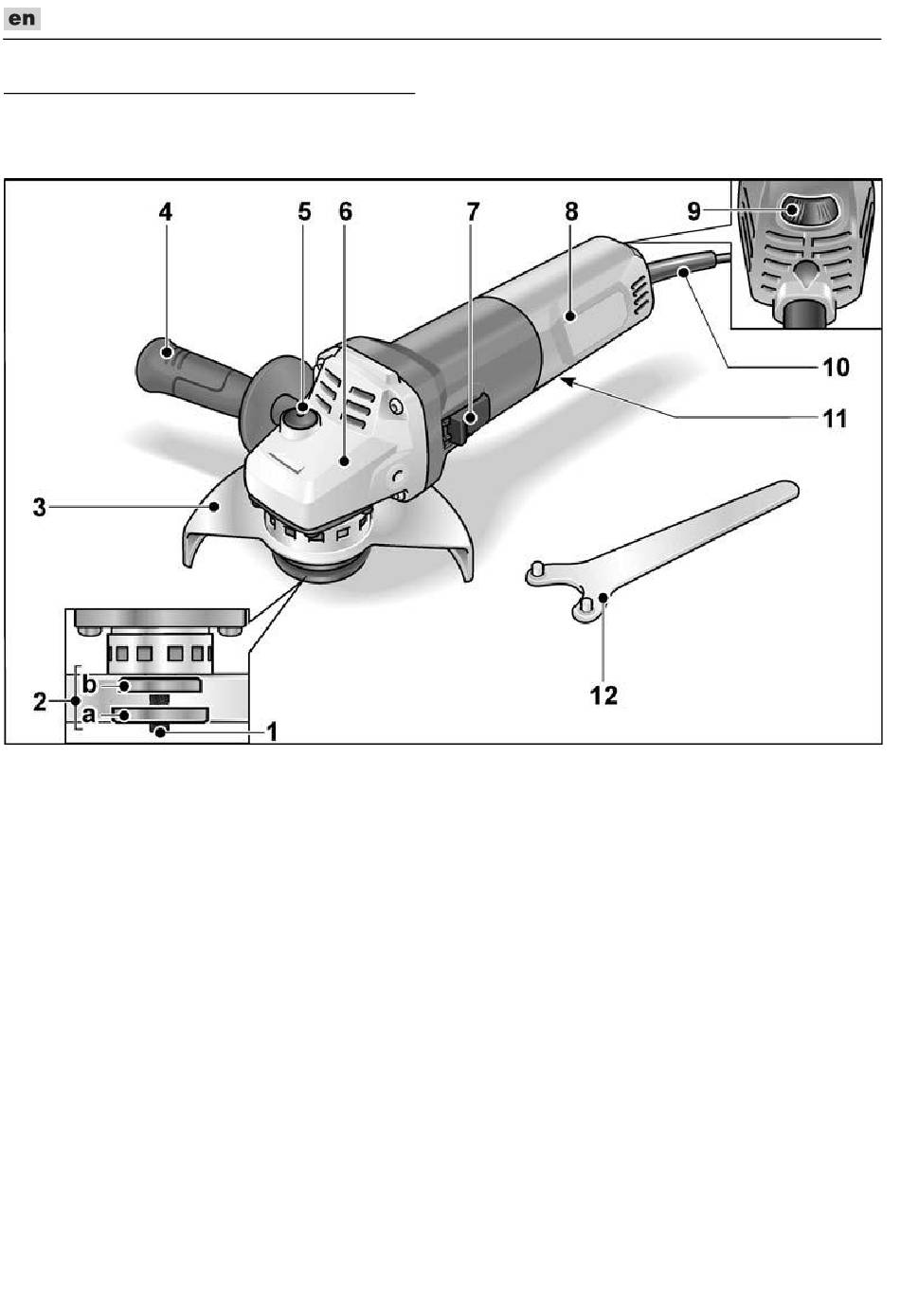

1 Spindle
2 Threaded flange
a Clamping nut
b Clamping flange
3 Guard hood
Can be adjusted without a tool through
360° by means of 12 notches.
a) 115 mm (L 8-11 115)
b) 125 mm
4 Handle
Handle can be fitted to the left or right.
(L 14-11 125, LE 14-11 125: handle
with integrated pin wrench)
5 Spindle lock
Secures the spindle when the tool
is changed.
22
6 Gear head
With air outlet and direction-of-rotation
arrow.
7 Switch rocker
Switches the power tool on and off.
With notched position for continuous
operation.
8 Rear handle
9 Dial for preselecting the speed
(LE 9-11 125, LE 14-11 125)
10 4.0 m power cord with plug
11 Rating plate (not illustrated)
12 Face spanner
