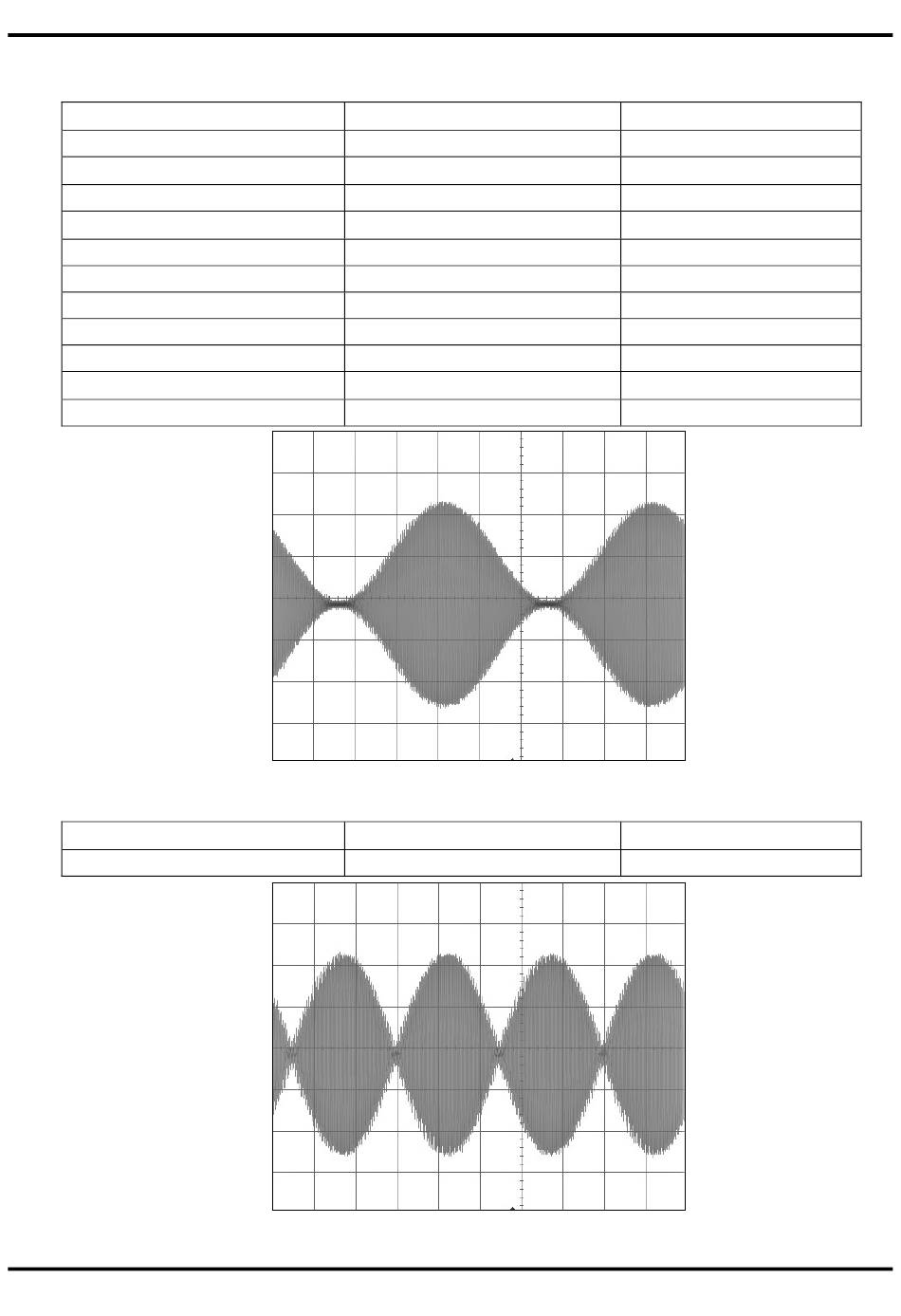

Setting-up an AM modulated Sine Waveform

Start with the instrument returned to Default Settings. .
Parameter
Frequency
MENU
Modulation
Parameter
Frequency
Depth
Source
Shape
Modulation state
Parameter
Output State
Change the modulation to AM-SC
Parameter
Type
Soft-key Name
-
HARD KEY NAME
Mod
Soft-key Name
Freq
Depth
Source
Shape
On/Off
HARD KEY NAME
Output1 / Output 2
Soft-key Name
Type > AM
Setting
10MHz
Setting
100kHz
100%
Internal
Sine
On
Setting
On
Setting
AM-SC
