6 Putting into operation
®
6.1.1 ABITIG MT 200/300W
1 Setting gauge
2 Electrode holder
3 Adapter

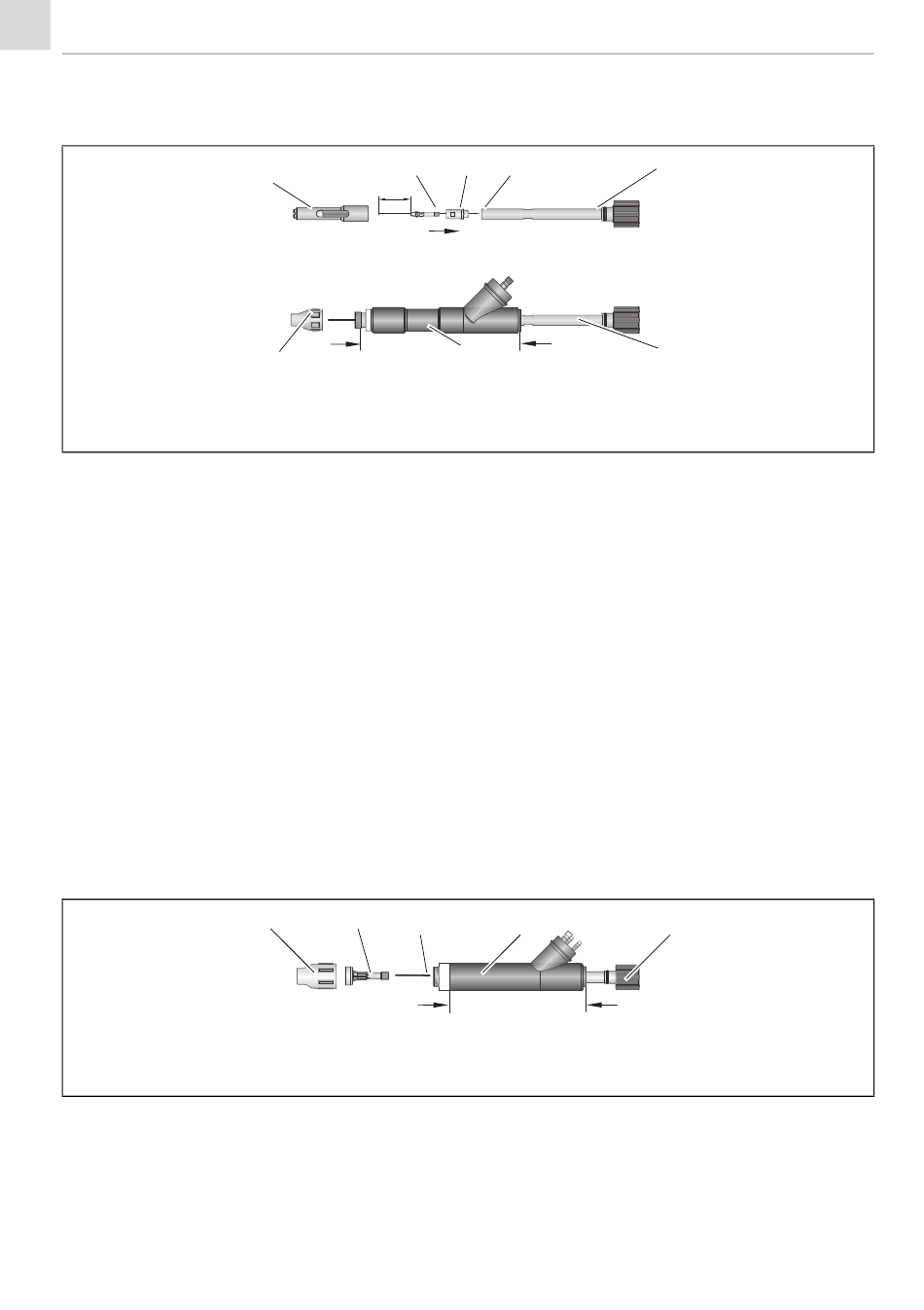

Fig. 1 Equipping the ABITIG
®
6.1.2 ABITIG MT 260W/400W/500W
1 Gas nozzle
2 Gas diffuser
Fig. 2 Equipping the ABITIG
EN - 12
1 2
x
8
4 Tungsten electrode
5 Guide tube
6 Pre-mounted unit
®
MT 200/300W
1 Insert the electrode holder (2) into the adapter (3) from the front.
2 Slide tungsten electrode (3) from the front through the adapter (3) into the
guide tube (4).
3 Screw electrode holder (2) containing the tungsten electrode (3) into the
guide tube (4) but do not tighten.
4 Set the length x using the setting gauge (1).
The length x depends on the welding task.
5 Tighten electrode holder (2) .
6 Screw pre-mounted unit (6) into the torch body (6) as far as it will go.
7 Screw in gas nozzle (8).
1 2 3
3 Tungsten electrode
4 Torch body
®
MT 260W/400W/500W
1 Screw the tungsten electrode (2) into the gas diffuser (2) from behind.
2 Insert the gas diffuser (2) into the torch body (3) from the front.
4
3
7
7
8
4
5
ABITIG
5
6
Torch body
Gas nozzle
5
Guide tube
®
MT
