SECTION II
AAP26SEG29
INSTALLATION INSTRUCTIONS
FOR
PEGASUS

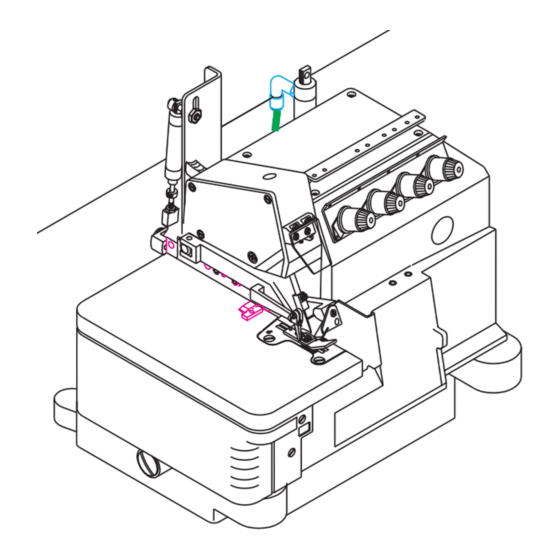

G29 FOR MODEL S52
INSTRUCCIONES DE INSTALACIÓN
PARA
PEGASUS
G29 PARA MODELO S52
AAP26SEG29
ATLANTA ATTACHMENT COMPANY
2-1
401 Industrial Park Dr.-Lawrenceville, GA 30045
