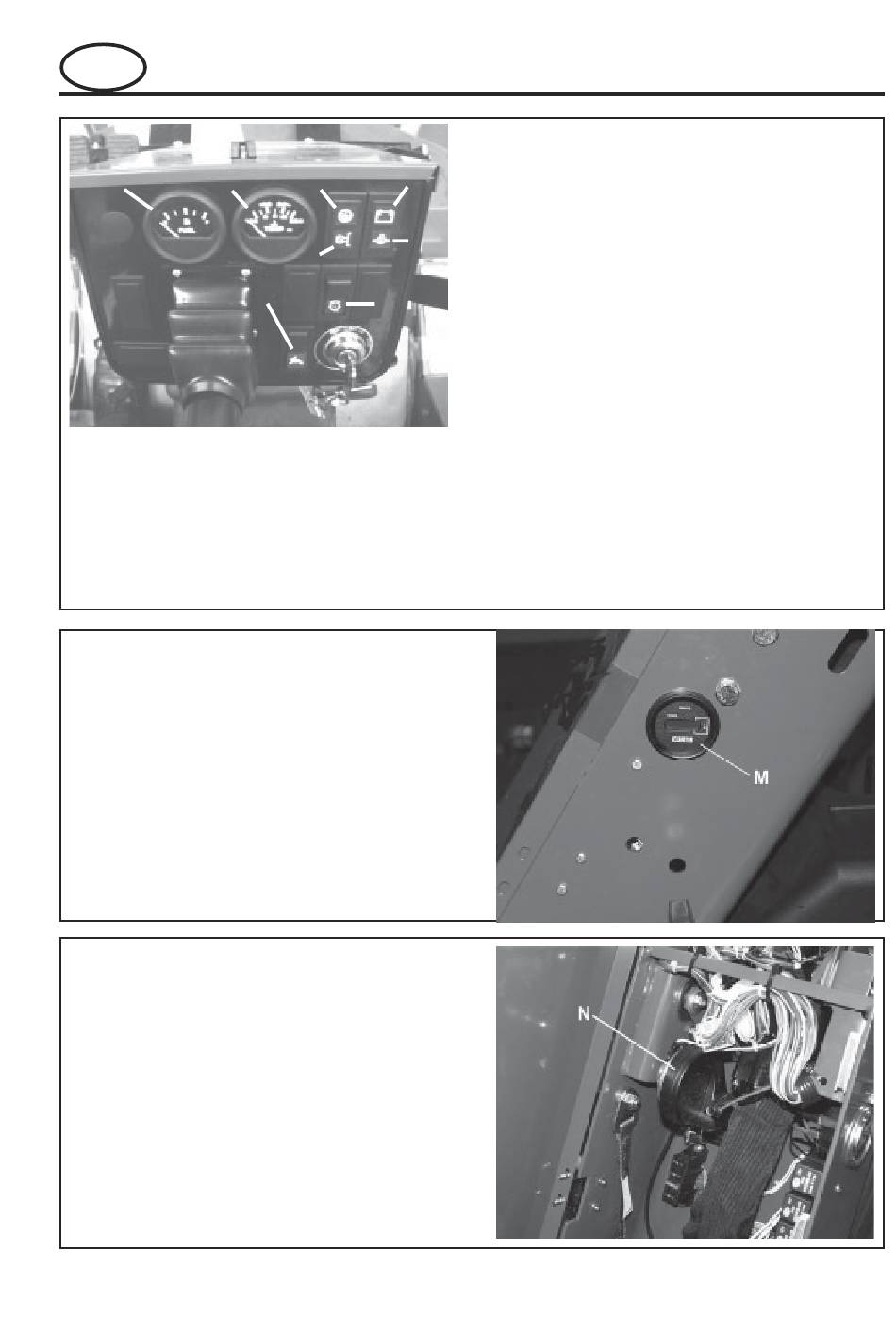

INSTRUMENTS

GB
L B
ALTERNATOR LIGHT (D)
Light comes on with the key in the start position
and in the run position if the engine has not been
started. Lamp will be illuminated while the engine
is running if system is not charging.
HOURMETER (M)
This meter records the total engine running
hours.
HORN (N)
The horn is an audible alarm for the following
situations:
a) Horn sounds continuously-this indicates a high
engine coolant temperature condition. If this
occurs, turn off the engine immediately and
resolve the problem.
b) Horn sounds intermittently-this indicates a low
engine oil pressure condition. If this occurs,
turn off the engine immediately and resolve the
problem.
C
D
E
A
F
N
SAFETY & OPERATION MANUAL
OIL LIGHT (E)
Light comes on at start up until engine builds up
pressure then extinguishes. Lamp will illuminate if
engine oil pressure drops too low. If this occurs,
shut off the engine immediately.
HYDRAULIC OIL LIGHT (C)
Lamp will illuminate when hydraulic oil becomes
too hot. If this occurs, shut off the engine
immediately and resolve the problem.
GLOW PLUG LIGHT (A)
Lamp will illuminate when key is turned
counterclockwise to the preheat position, and will
extinguish after 20-30 seconds when glow plugs
have sufficiently warmed the engine.
FUEL GAUGE (L)
Monitors quantity of fuel in tank.
TEMPERATURE GAUGE (B)
Monitors engine coolant temperature.
JACOBSEN HR9510
GB-17
