CUTTER DECK ADJUSTMENTS
GB
HEIGHT OF CUT (WING DECKS)
The cutting height is determined by the position of
the blades in relation to the caster wheels.
Changes to this height are made at (4) points and
can be made in any order. Make selections for
each adjustment below from the accompanying
height of cut charts .

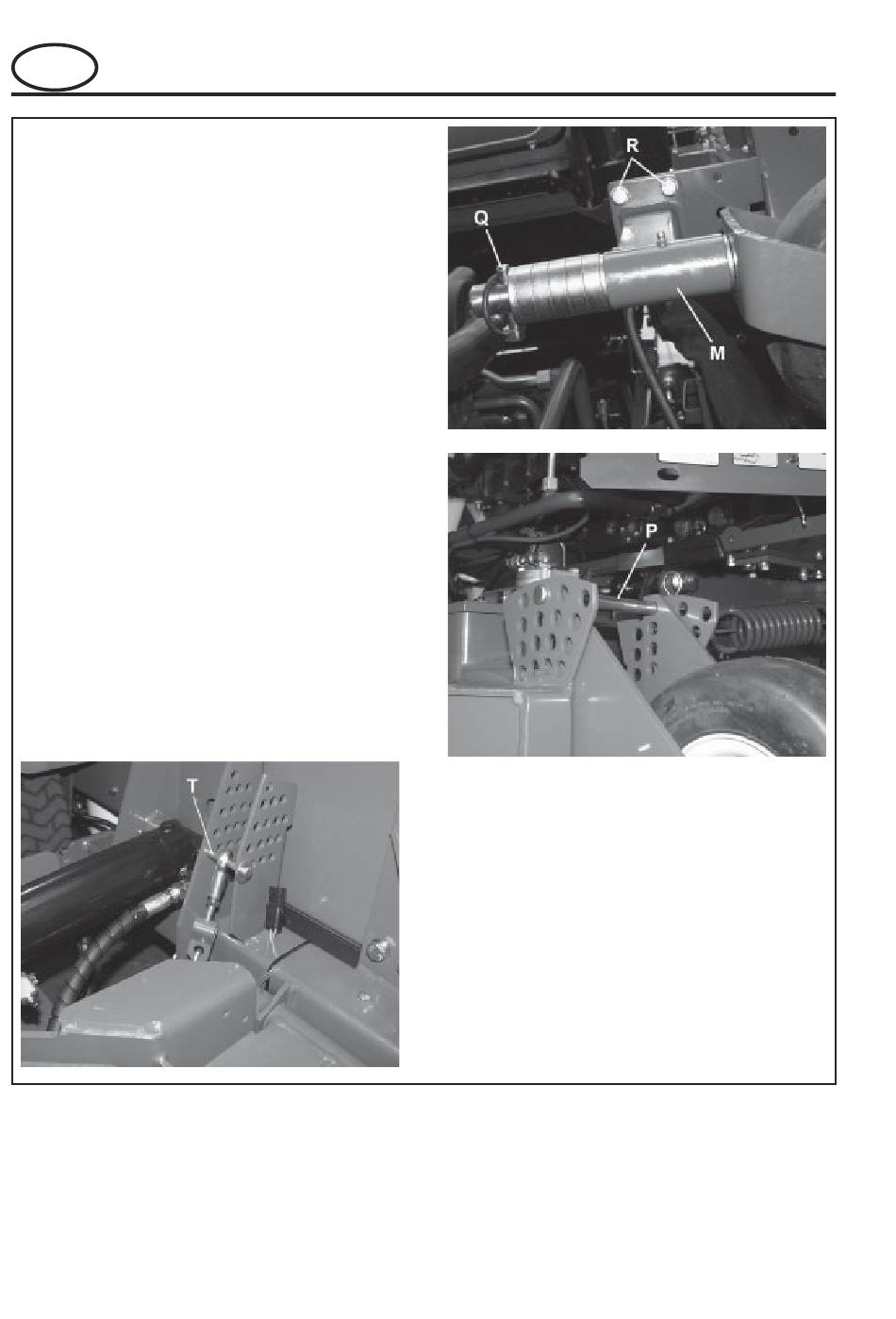

1. Remove the quick pin Q from the top of the
caster wheel pivot spindle.
2. Remove the caster wheel from caster support
M.
3. Select either Position 1 or Position 2 for wheel
mounting bracket. To change, remove (4)
mounting bolts R.
4. Place the selected size and number of spac-
ers below the caster support. Both A-size (6.5
mm) and B-size (12.5 mm) spacers are
provided. Place the remaining spacers above
the caster support.
5. Replace the quick pin.
6. Place pin P into proper hole of front caster
bracket for the selected height of cut.
7. Place chain pin T into the proper hole of chain
adjustment bracket for the selected height of
cut.
