Bestway 56217 Manual De Instrucciones

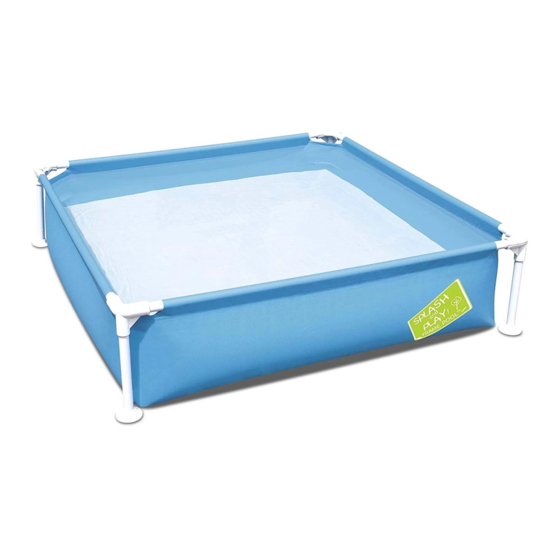

MY FIRST FRAME POOL
OWNER'S MANUAL
Item
56217
Refer to the item name or number stated on the packaging.
Packaging must be read carefully and kept for future reference.
WARNING
Never leave your child unattended – drowning hazard.
• Only for domestic use.
• Only for outdoor use.
• Children can drown in very small amounts of water. Empty the pool
when not in use.
• Do not install the paddling pool over concrete, asphalt or any other
hard surface.
• Place the product on a level surface at least 2 m from any structure
or obstruction such as a fence, garage, house, overhanging
branches, laundry lines or electrical wires.
• Recommend back towards the sun when playing.
• Modification by the consumer of the original paddling pool (for
example the addition of accessories) shall be carried out according
to the instructions of the manufacturer.
• Keep assembly and installation instruction for future reference.
Parts:
Liner
A
C
E
Aged
Over 2 years
Underwater adhesive repair
patch
B
D
Structure photo:
B
A
Drawings may not reflect actual product, not scaled to size.
Ref# Description
A Top Rail A
B Top Rail B
C Vertical Pool Leg
D Corner
E Footing
Preparation
Installation of small swimming pool usually takes only 10 minutes with
1 people.
Recommendations regarding placement of the pool:
• It is essential the pool is set up on solid, level ground. If the pool is
set up on uneven ground it can cause collapse of the pool and
flooding, causing serious personal injury and/or damage to personal
property. Setting up on uneven ground will void the warranty and
service claims.
• Do not set up on driveways, decks, platforms, gravel or asphalt.
Ground should be firm enough to withstand the pressure of the
water; mud, sand, soft / loose soil or tar are not suitable.
• The ground must be cleared of all objects and debris including
stones and twigs.
• Check with your local city council for by-laws relating to fencing,
barriers, lighting and safety requirements and ensure you comply
with all laws.
Installation
Assembly can be completed without tools.
NOTE: It is important to assemble pool in the order shown below.
Adult assembly required.
B A
Fig. 1
Fig. 3
1. Find solid, level ground and clear it of debris.
Attention: Do not set up the pool under cables or under trees.
2. Spread out the pool and make sure it is right side up.
3. Cover the water valve.
4. Assemble the top rails. Connect Top Rail A to Top Rail B, and
slide into the pole sleeve (Fig.1). Please see the structure photo
for detailed directions. Make sure the top rails' ends are in right
position.
1
A
A
A
B
B
D
C
E
Pool Size & Quantity
1.22 m x 1.22 m x 30.5 cm
(48'' x 48'' x 12'')
4
4
4
4
4
Fig. 2
Fig. 4
B
