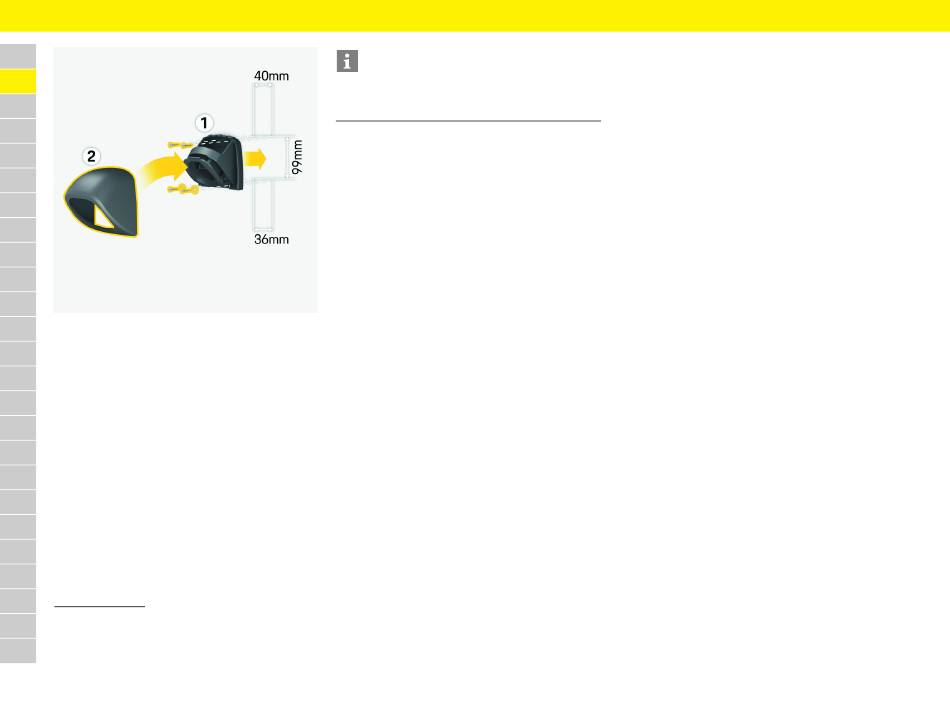

Fig. 15: Drilling dimensions
EL
1. Take the connector fastener 1 out of the cover 2.
CZ
To do this, press the upper area of the cover
together on both sides. Apply resistance to the
HU
connector fastener using a suitable tool and
PL
remove the cover.
2. Mark the drill holes on the wall.
HR
3. Drill the mounting holes and insert wall plugs.
SR
4. Screw the connector fastener 1 onto the wall.
5. Fit the cover 2 onto the connector fastener 1
SK
from below and push upwards.
SL
6. Insert the vehicle plug in the connector fastener.
7. Depending on the country, e.g. in Switzerland
ET
a cable management system must be used.
LT
LV
RO
1) Time of printing. Further information is available from
BG
a qualified specialist workshop. Porsche recommends a
Porsche partner as they have trained workshoppersonnel
MK
and the necessary parts and tools.
48
Information
To remove the connector fastener from the wall,
press together the cover at the top on both sides and
remove from the connector fastener.
1)
,
