17. Introduce the cables CONNECTED to the lamps and
connect the control panel to the plate.
ATTENTION!
THE PLATE CABLE CONNECTOR IS PROVIDED
WITH A SIDE PIN THAT MUST COINCIDE WITH THE
PERFORATION FOUND ON THE SIDE OF THE
CONNECTOR LOCATED ON THE BACK OF THE
CONTROL PANEL.
18. The double sided adhesive tape supplied should be cut
into 8 segments, then remove the protection covering
from both sides and apply the segments close to the
screws that fix the chimney flues to the structure (see
illustration for correct positioning).
19. Apply the 4 masks (supplied) to cover the fixing points of
the lower sections of the chimney flue (ATTENTION THE
MASKS FOR THE LOWER CHIMNEY FLUE ARE
RECOGNIZABLE BY THEIR NARROWER WIDTH).
The wider masks are to be used for the upper chimney
flue, and should be cut to size.
20. Hook the control panel to the opening slit so that the
ON/OFF light switch is facing downwards.
Remount the carbon filter frame and the fat/s filter/s and check
the perfect functioning of the hood.
Only for products supplied in stainless steel and
aluminum:
Remove the protective covering taking care not to damage the
metal and finish (glazing).

Description of the hood

Fig. 1
1. Control panel
2. Grease filter
3. Grease filter release handle
4. Halogen lamp
5. Vapour catcher
6. Telescopic chimney
7. Air outlet (used for filter version only)
Operation
Use the high suction speed in cases of concentrated kitchen
vapours. It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

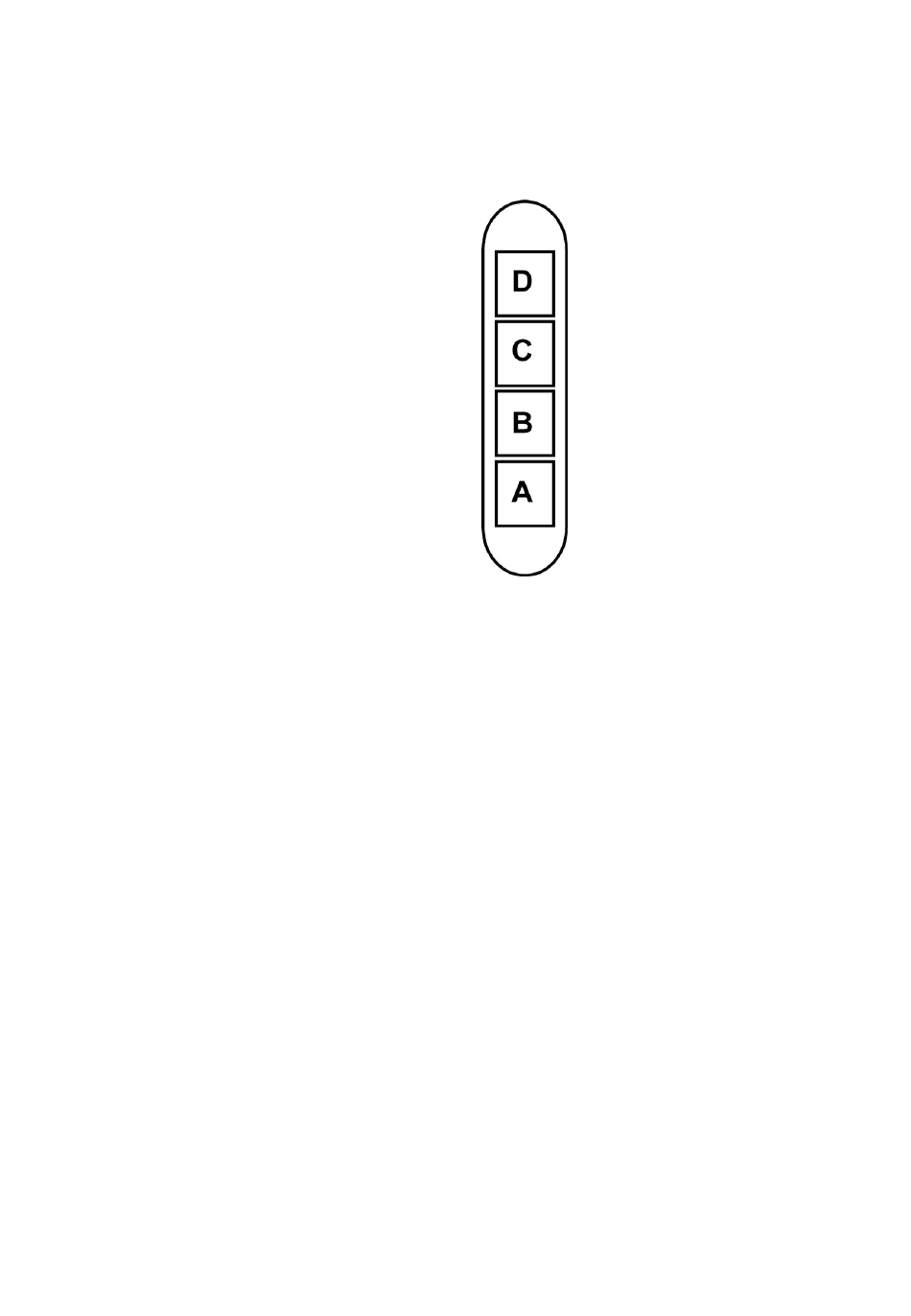

A. on/off light switch
B. on/off aspiration switch and minimum power selection
B+C. medium power selection aspiration switch
B+D. maximum power selection aspiration switch
Maintenance
ATTENTION! Before performing any maintenance operation,
isolate the hood from the electrical supply by switching off at
the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and
socket, then the plug must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat filters) internally and externally. Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning
recommendations of the cooker hood and replacement of the
filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to
the motor or any fire damage linked to inappropriate
maintenance or failure to observe the above safety
recommendations.
13
