Overview - Flex CS 60 WET Instrucciones De Funcionamiento Originales

Overview

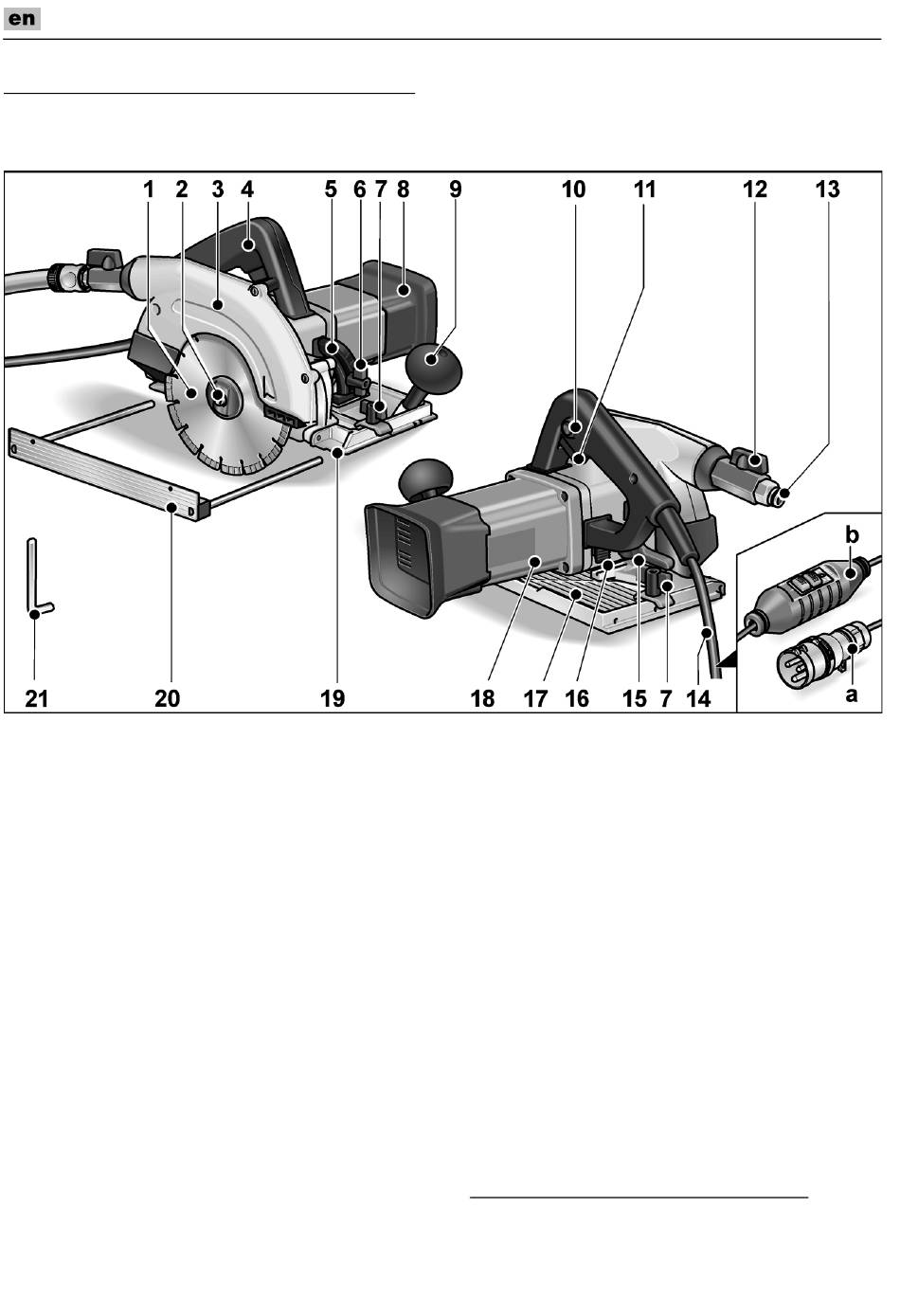

These instructions refer to several electric power tools. Diagrams may differ.
1 Diamond cutting disc
2 Spindle with threaded flange
3 Guard hood
4 Handle
5 Scale for mitre angle *
6 Wing nut *
for setting the mitre angle
7 Wing screw
for attachment of parallel stop
8 Rubber hood
9 Auxiliary handle
10 Switch interlock for switch
11 Switch
12 Shut-off valve
13 Coupling for water connection
20
14 4.0 m power cord with either
a plug in accordance with
IEC60309-2 for connection
to an isolating transformer or
b PRCD safety switch
15 Clamping lever
for setting cutting depth
16 Spindle lock
17 Saw bench
18 Rating plate
19 Cut mark
CSW 4161:
CS 60 WET:
20 Parallel stop
21 Hexagon-socket key
* CS 60 WET only
CS 60 WET/CSW 4161
0°
0°/30°/45°
