Installation and Operation Instructions for the following model:
SNCA-HRX550/EXT, SNCA-HRX550/INT,
& SNCA-HRX550EXT/W

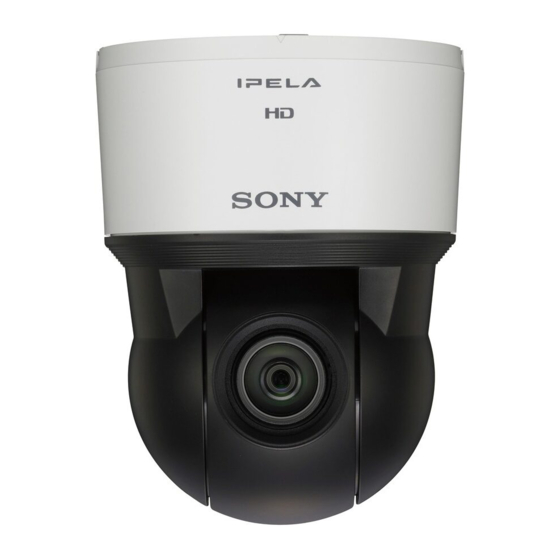

Outdoor and Indoor Dome Housings
SNCA-HRX550/EXT
SNCA-HRX550/INT
SNCA-HRX550EXT/W Outdoor Pendant Housing with heater & blower, clear lower dome,
Note: AC 24V power supply for the camera and the heater/blower is an installer/re-seller
provided item. Please refer to Electrical Specifications for power consumption details.
Indoor models do not have heater/blower or pre-run cables.
Note: Please note that to achieve the increased depth with the aspheric design for optimal
camera lens to capsule orientation, the capsule is slightly angled around the highest
section. This creates a "line', visible to the naked eye, around the upper most section
of the capsule. This "line" serves as the geometric center line used to insure proper
camera placement. It is not typically seen by the camera. However, Sony RZ series PTZ
cameras are able to tilt up above the horizon to 25°, this wide range of tilt motion at
a wide angle view may cause this line to be captured in the image.
Mounting instructions for:
SNC-RZ25
SNC-RX530, 550, 570
SNC-RS44, 46
SNC-RH124
SNC-EP580, 550, 520
SNC-ER580, 550, 520
All manuals and user guides at all-guides.com
Outdoor Pendant Housing with heater & blower, clear lower dome
Indoor Pendant Housing with heater & blower, tinted lower dome
and a wireless antenna cable
81-IN6605 12202011
Publicidad
Tabla de contenido
Manuales relacionados para Sony SNCA-HRX550/EXT
Resumen de contenidos para Sony SNCA-HRX550/EXT
- Página 1 This “line” serves as the geometric center line used to insure proper camera placement. It is not typically seen by the camera. However, Sony RZ series PTZ cameras are able to tilt up above the horizon to 25°, this wide range of tilt motion at a wide angle view may cause this line to be captured in the image.
-
Página 2: Important Safeguards
Questo simbolo del punto del exclamaton è inteso per Sony at the following number: avvertire l’utente alla presenza delle istruzioni importanti nella letteratura che accompagna l'apparecchio. TECHNICAL SUPPORT Manufactured exclusively for Sony Electronics by: 8:15 AM to 7:30 PM Videolarm, Inc (Eastern Time) 2525 Park Central... -
Página 3: Contents Of Box
All manuals and user guides at all-guides.com Contents of Box Contents of Box Details (1) Spacer Packet 2” ½” 1” 200mm 25mm 50mm (4) M3 x 6mm Machine Screw (4) M3 lock washers (1) 1/4 x 20 Bolt (1) 1/4 flat washer (1) 1/4 lock washer (3) 8 x 32 x 3/8"... -
Página 4: Electrical Specifications
SNCA-HRX550/INT See Camera Specifications. Tools Required: .100" Flat Head Screwdriver Phillips Head Screwdriver (ONLY AL AIRE LIBRE): SNCA-HRX550/EXT, SNCA-HRX550EXT/W There are no pre-run cables on the indoor 26 vatios en 24VAC (calentador y soplador) models. (Proceed to Camera Installation section) 25 vatios en 24VAC (cámara fotográfica) - Página 5 All manuals and user guides at all-guides.com Camera Installation: SNC-RZ25 SNCRZ25 (2) 3mm screws (1) ¼”x 20 bolt lock washer SNCRZ25 MOUNTING HOLES Remove the quick release plate from the Mount the camera to the plate using the housing. appropriate pattern. •...
- Página 6 All manuals and user guides at all-guides.com Camera Installation: SNC-RX530 / RX550 / RX570 SNCRX550 SNCRX550 (4) 3mm screws SNC RX550 MOUNTING HOLES Mount the camera to the plate using the Remove the quick release plate from the appropriate pattern. housing.
- Página 7 All manuals and user guides at all-guides.com Camera Installation: SNC-RZ25 & SNC-RX SERIES in Wireless Ready Housing SNC-RZ25 (2) 3mm screws (1) ¼”x 20 bolt lock washer MOUNTING PATTERN 1/2” Spacers Remove the quick release plate and mount it to the camera using the correct pattern, then add (4) 1/2” spacers, align tabs on the mounting plate and turn counterclockwise to secure.
- Página 8 All manuals and user guides at all-guides.com Camera Installation: SNC-RH124 / RS44 / RS46 SNC-RH124 SNC-RH124 SNC-RS44 SNC-RS44 SNC-RS46 SNC-RS46 Remove existing bracket to mount SNC-RH124 Leave four 1/2” spacers as shown. or the SNC-RS series cameras. • Retire el soporte existentes para organizar SNC-RH124 o la •...
- Página 9 • Attacchi il piatto del soffitto di SNC RH124„ ai distanziatori 1 • Colleghi il controllo ed alimenti i legare alla base della macchina (di 25mm) in alloggiamento. fotografica, (vedi le istruzioni della macchina fotografica di Sony). SNC-RH124 SNC-RH124 SNC-RS44...
- Página 10 All manuals and user guides at all-guides.com Camera Installation: SNC-EP/ER SERIES (EP580, 550, 520 and ER580, 550, 520) 1½” spacers ½” spacers Add (4) 1” and (4) ½“ spacers to the base bracket Mounting holes for SNC-ER/EP as shown. NOTE: ½“ spacers already in place. series cameras .
- Página 11 All manuals and user guides at all-guides.com Camera Installation: SNC-EP/ER SERIES (EP580, 550, 520 and ER580, 550, 520) Cont. Attach the M3 locking screws provided. Twist the unit clockwise to secure. • Ate los tornillos de cierre M3 proporcionados. • Tuerza la unidad a la derecha para asegurar. •...
-
Página 12: Mounting Preparation
All manuals and user guides at all-guides.com Mounting Preparation Connecting the Wireless Card and Antenna MMCX For wireless models, after installing the wireless card Securely attach pendant pipe or the UNI-WMB1. Pull connect the antenna cable to the card. Please refer to wiring through pipe and position grommet as shown. - Página 13 All manuals and user guides at all-guides.com Loop the lanyard over the set screw to temporarily hold housing. Screw the (2) bolts into the coupling. • Loop el cordón sobre el tornillo de fijación para mantener temporal- • Atornille (2) los pernos en el acoplador. mente de la vivienda.
-
Página 14: Wiring Instructions
All manuals and user guides at all-guides.com Wiring Instructions RJ45 24VAC SNC-RZ30/SNC-RZ550 Camera 18 Watts 25 Watts Camera Orange Heater/Blower Yellow 26 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White RJ45 Make the appropriate male and female connections. Indoor model does not include pre-run cables. Note: The video and alarm wires are not pre-run on these models. - Página 15 All manuals and user guides at all-guides.com Wireless Systems Only The 2’ cable provided is to be connected at the top of the Slide the grommet down over the coupling to prevent housing. Push down onto the connector and thread until it is water from entering and complete the assembly.
- Página 16 All manuals and user guides at all-guides.com Before After Loop the lanyard around the tab inside the Align the arrows on the outside of the dome housing. and lock. • Alinee las flechas en el exterior de la bóveda y •...
-
Página 17: Materials Needed
All manuals and user guides at all-guides.com How - to Clean a Dome Bubble To effectively clean your video surveillance dome bubble (acrylic or polycarbonate) from debris, follow these simple step-by-step instructions. Materials Needed • Clean, dry, pressurized air • Water •... -
Página 18: Replacement Parts List
All manuals and user guides at all-guides.com Replacement Parts List SNCA-HRX550/EXT, SNCA-HRX550/INT, & SNCA-HRX550EXT/W Part Number Description RPFD060 CAMERA BRACKET RPFD080 12 VDC BLOWER RPRH707 CONNECTION PCB RPFD702 24 VAC HEATER RPFD709 HOUSING TOP RPFD7C CLEAR REPLACEMENT DOME RPFD7T TINTED REPLACEMENT DOME... - Página 19 All manuals and user guides at all-guides.com...
-
Página 20: Disclaimer Of Warranty
CONNECT TO THE PRODUCT. LIMITATION OF LIABILITY THE LIABILITY OF SONY, IF ANY, AND PURCHASER'S SOLE AND EXCLUSIVE REMEDY FOR DAMAGES FOR ANY CLAIM OF ANY KIND WHATSOEVER, REGARDLESS OF THE LEGAL THEORY AND WHETHER ARISING IN TORT OR CONTRACT, SHALL NOT BE GREATER THAN THE ACTUAL PURCHASE PRICE OF THE PRODUCT WITH RESPECT TO WHICH SUCH CLAIM IS MADE. - Página 21 All manuals and user guides at all-guides.com Available Mounting Accessories SNCA-WM20FC SNCA-POWER BOX SNCA-WM30G SNCA-CA2 SNCA-PM3 Aluminum Gooseneck Aluminum Existing Aluminum Corner Power Block Unit Parapet Mount Wall Mount Pole Mount Adaptor Mount Adaptor SNCA-WM20FC SNCA-PM3 Wall Mount Pole Mount Mounting Accessories Needed: Mounting Accessories Needed: •...
