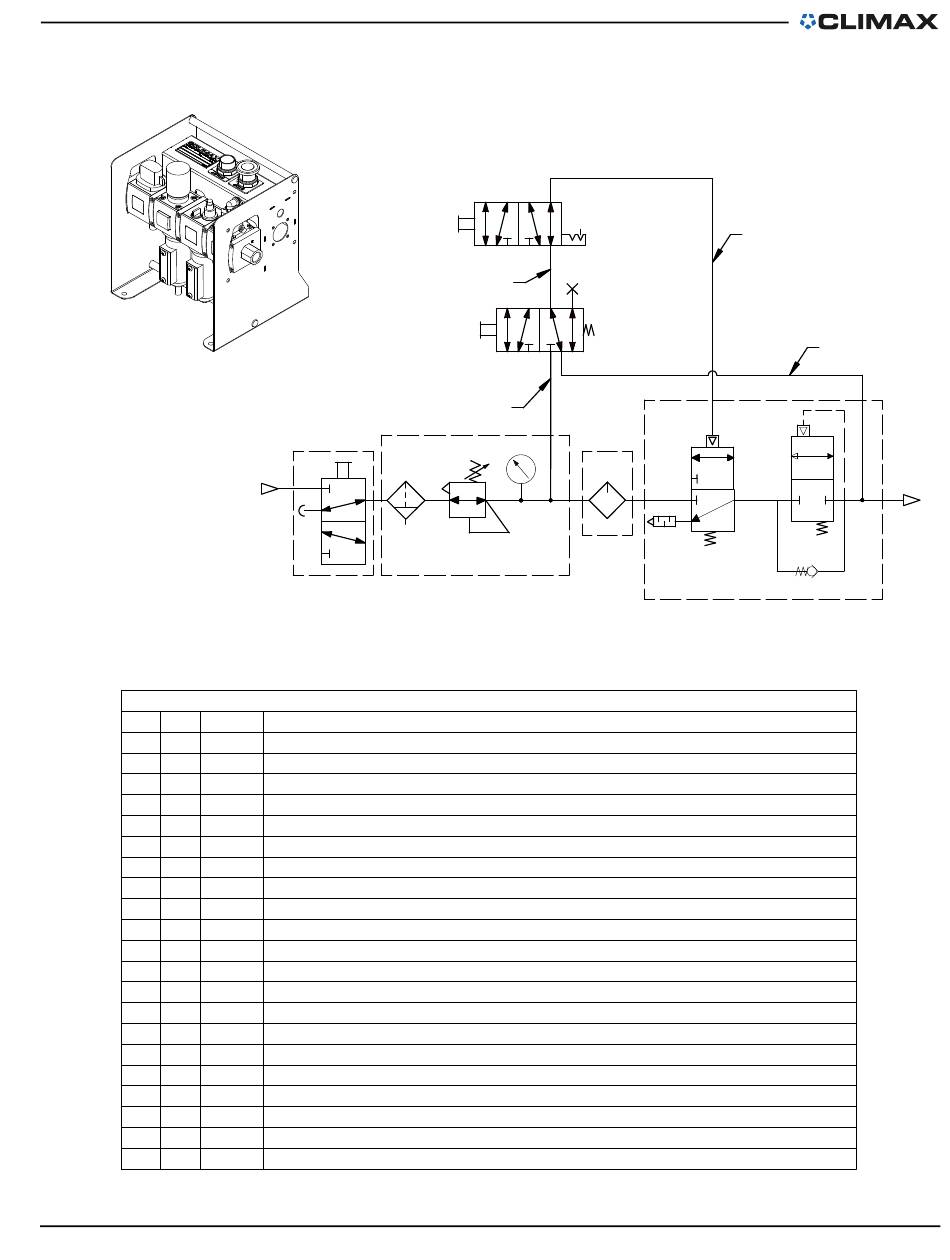

Figura A-26. Esquema Y Lista De Piezas De La Unidad De Accionamiento Neumático; (N/P 101920) - Climax KM3000 Manual De Funcionamiento

ASSEMBLED VIEW
SCALE 1 : 8
ITEM QTY P/N:
1 8 11315
2 4 12648
3 1 14726
4 2 15285
5 2 46785
6 1 46797
7
1 59458
8 1 59459
9 1 59462
10 1 59825
11 1 83517
12 2 83520
13 4 87533
14 1 91792
15 4 96348
16 1 98553
17 24 98554
18 5 98555
19 1 101003
20 1 101206
21 2 2151012
N/P 104075-S, Rev. 0
STOP
START
SHUT OFF
MFG PN
8652APAM4FA00GA
8652A3M04011100
WASHER #10 FLTW BLACK OXIDE
SCREW 10-24 X 3/4 SHCS
SCREW 10-32 X 1/4 SHCS
(NOT SHOWN) FTG REDUCING ADAPTER 1 NPTF X 1/2 NPTM
VALVE PUSHBUTTON 5 PORT PNEUMATIC
LEGEND PLATE START 10250 SERIES
PUSHBUTTON GREEN FLUSH
PUSH BUTTON PUSH PULL MAINTAINED (M-M)
PUSH BUTTON OPERATOR RED 1-5/8
LEGEND PLATE STOP 10250SERIES YELLOW BACKGROUND
FTG ELBOW 1/8 NPTM X 5/32 TUBE PRESTOLOK
FTG, STRAIGHT, 1/8 NPTM X 5/32 TUBE PRESTOLOK
NUT 10-24 STDNYLOC SS
PLATE PART NO YEAR MODEL 1.5 X 3.0 ADHESIVE BACKED
BUMPER RUBBER 1/4" ID X 1/2" OD 1/16" MATL THICKNESS
O-RING 4.5MM ID X 6.5MM OD X 1MM W NITRILE 70A DUROMETER
(NOT SHOWN) TUBING 5/32 OD POLYURETHANE (INCHES)
FTG STRAIGHT SOCKET HEAD 5/32 TUBE PUSH LOCK 10/32UNF
STAND PCU
FILTER REGULATOR LUBRICATOR CONTROL VALVE W SEMI AUTO DRAIN
(NOT SHOWN) FTG COUPLER 1/2 NPTM X CHICAGO W/ SAFETY PIN & LANYARD
F A-26. E
IGURA SQUEMA Y LISTA DE PIEZAS DE LA UNIDAD DE ACCIONAMIENTO NEUMÁTICO
2 4
1 3 5
6.0"
2 4
1 3 5
4.0"
MFG PN
MFG PN
8652AL0M40A0000
PARTS LIST
DESCRIPTION
6.0"
6.0"
MFG PN
8652A5E04NA0000

(N/P 101920)

Página 81
