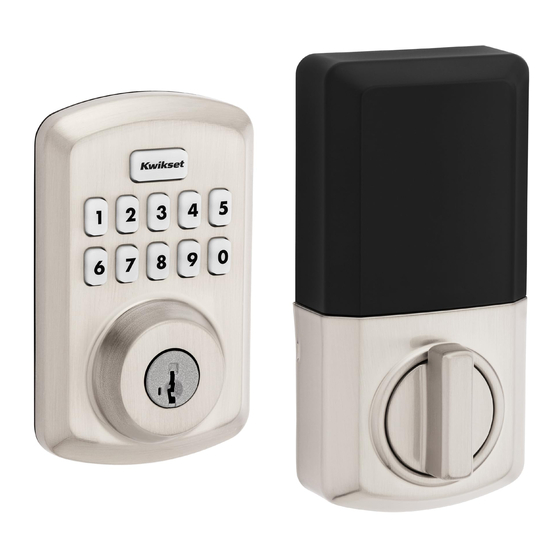

Kwikset Powerbolt 250 Guía De Instalación Y Usuario

54449
Rev 01
9250
Installation and User Guide
Kwikset Technical Support | 1-800-327-5625 | www.kwikset.com
Required tools
Batteries
Ruler Screwdrivers
Additional Tools (depending on application)
Hammer Wood block
1
Prepare the door and check dimensions
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep.
A
the door is either 2-1/8 in (54 mm) or
1-1/2 in (38 mm).
2-1/8 in
54 mm
or
1-1/2 in
38 mm
Note: Additional door preparation may be
required for doors with 1-1/2 in (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep.
2
Install the latch and strike
A
Hold the latch in front of the door hole, with the latch
Is the rectangular shaped hole centered in the
door hole?
YES
or
Rectangular shaped hole
No adjustment is required.
Proceed to next step.
B
either 2-3/8 or 2-3/4 in ( 60 or 70 mm).
2-3/8 or 2-3/4 in
60 or 70 mm
B
Is the door edge chiseled?
Install latch in door with
supplied screws.
NO
Make sure
Rectangular shaped hole
slotted hole is at
bottom of latch.
Rotate latch face as
shown to extend latch.
180°
Parts in the box
Latch
Adapter Mounting
Ring Plate
Collar
Keys
C
the door edge is 1 in (25 mm).
b a
c k s
e t
YES NO
or
chiseled
not
chiseled
Use a athead screwdriver to remove
latch face. Once removed, grip the
latch with one hand and with the
other hand twist collar o . Install
drive-in collar.
Align tabs with
holes in collar.
Ensure collar
snaps into place.
Pull collar to test
for tight t.
Install latch in
door with wood
block and
hammer.
53648
(2x)
(For Latch/
Strike Bag)
Make sure
slotted hole is at
bottom of latch.
1 / 8
Interior Assembly Exterior Assembly
Transitional
For Latch / Strike For Lock
Strike SmartKey
Tool
53648 52367
D
Measure to con rm that the door is
between 1-3/8 and 1-3/4 in (35 mm and
44 mm) thick.
1 in
25 mm
Note: Please contact customer service if door
thickness exceeds 1-3/4 in for a thick door kit.
For Latch /
Strike Bag
C
Install strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1 in (25 mm) deep.
53648
(2x)
(For Latch/
Strike Bag)
D
IMPORTANT: Make sure the latch bolt is fully
retracted (in the unlocked position).
Contemporary
52502
1-3/8 – 1-3/4 in
35 – 44 mm
(4x)
53648
actual size
C
door frame
unlocked
