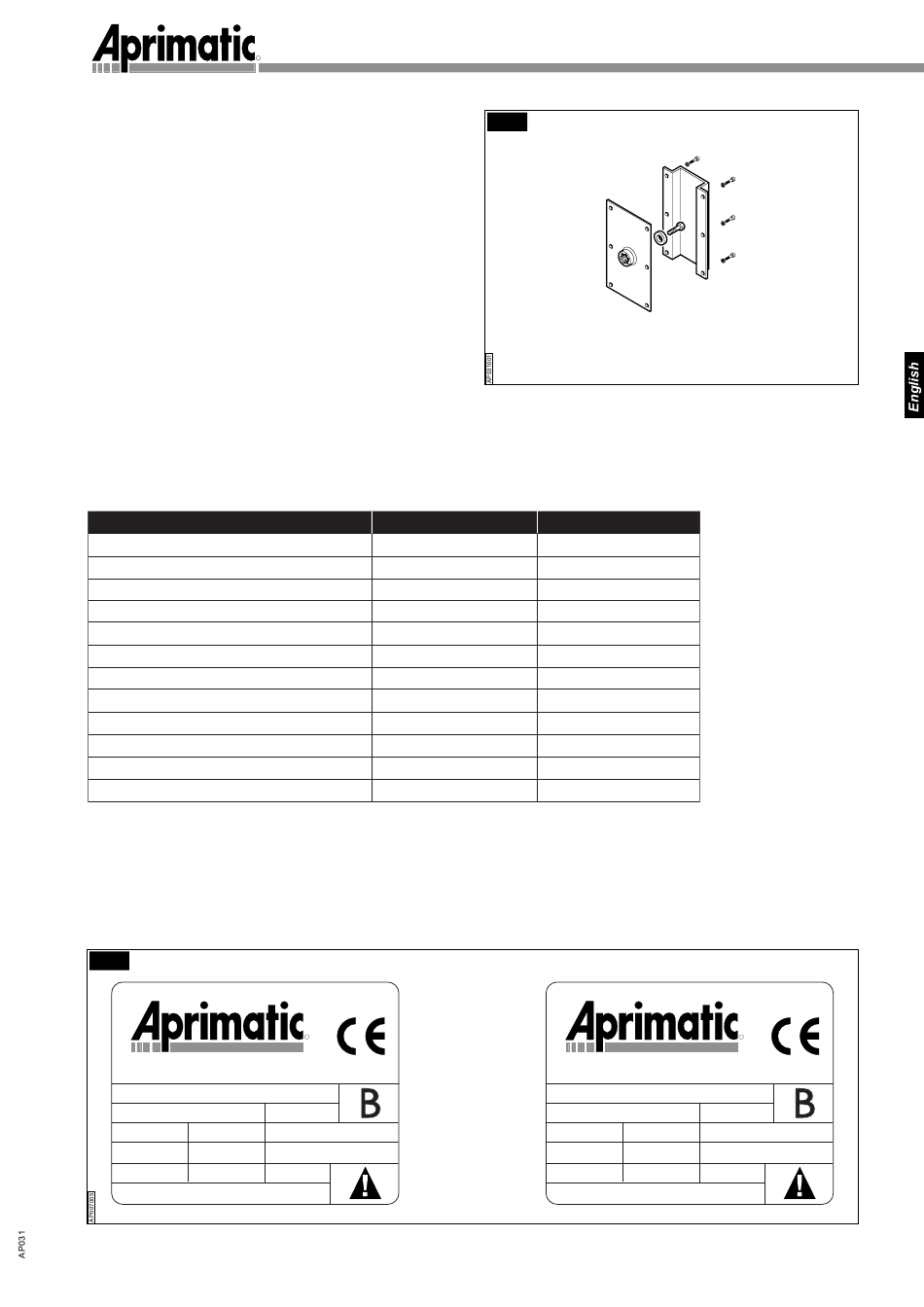

2.1 163/164 BARRIER EQUIPMENT

(FIG. 3)
The barrier body comes complete with:
- Flange,
- beam fi xing counter-plate,
- counter-plate fi xing screws,
- anchorage fi xing bolts,
- special centring washer,
- hex-head screws,
- connectors kit (quantity 4).

3.1 DATA TABLE

Characteristics
Power supply
Loadless power absorption
Loadless current absorption
Thermal overload cutout
Operating temperature
Weight with oil
Oil quantity
Oil type (do not mix with other oils)
Max pressure
Rotation angle
Opening/closing time
Beam length
3.2 APRIMATIC S.P.A. IDENTIFICATION PLATE
It is applied on one side of the barrier body and on the internal jamb, and contains the technical data of
the barrier (fi g. 5).
The plate is made of a special tamperproof material that prevents any re-use after its removal.
Fig.5
S.p.A S.p.A MADE IN ITALY MADE IN ITALY
Type BARRIERA 163
AprimOil HC13
120 Nm
230 v ~
25 BAR
50 Hz
1.5s / s
263 W
0000 NR.00000000000 S 0000000
Barrier 163
230V+/-10% 50Hz
263 W
2,2 A
120˚C
-25˚/+90˚C
75 Kg
2 lt
AprimOil Hc13
25 Bar
90˚
1,5 sec.
3,5 mt
R
C.I.F
10 g/min
4 L/min
IP 44
Standard equipment / Technical features
Fig.2
Barrier 164
230V+/-10% 50Hz
230 W
1,75 A
120˚C
-25˚/+90˚C
73 Kg
2 lt
AprimOil Hc13
35 Bar
90˚
4,5 sec.
4,5 mt
S.p.A S.p.A
Type BARRIERA 164
AprimOil
230 v ~
50 Hz
230 W
0000 NR.00000000000 S 0000000
- 11 -
R
MADE IN ITALY MADE IN ITALY
HC13
C.I.F
168 Nm
3.3 g/min
35 BAR 1 L/min
4.5s / s
IP 44
