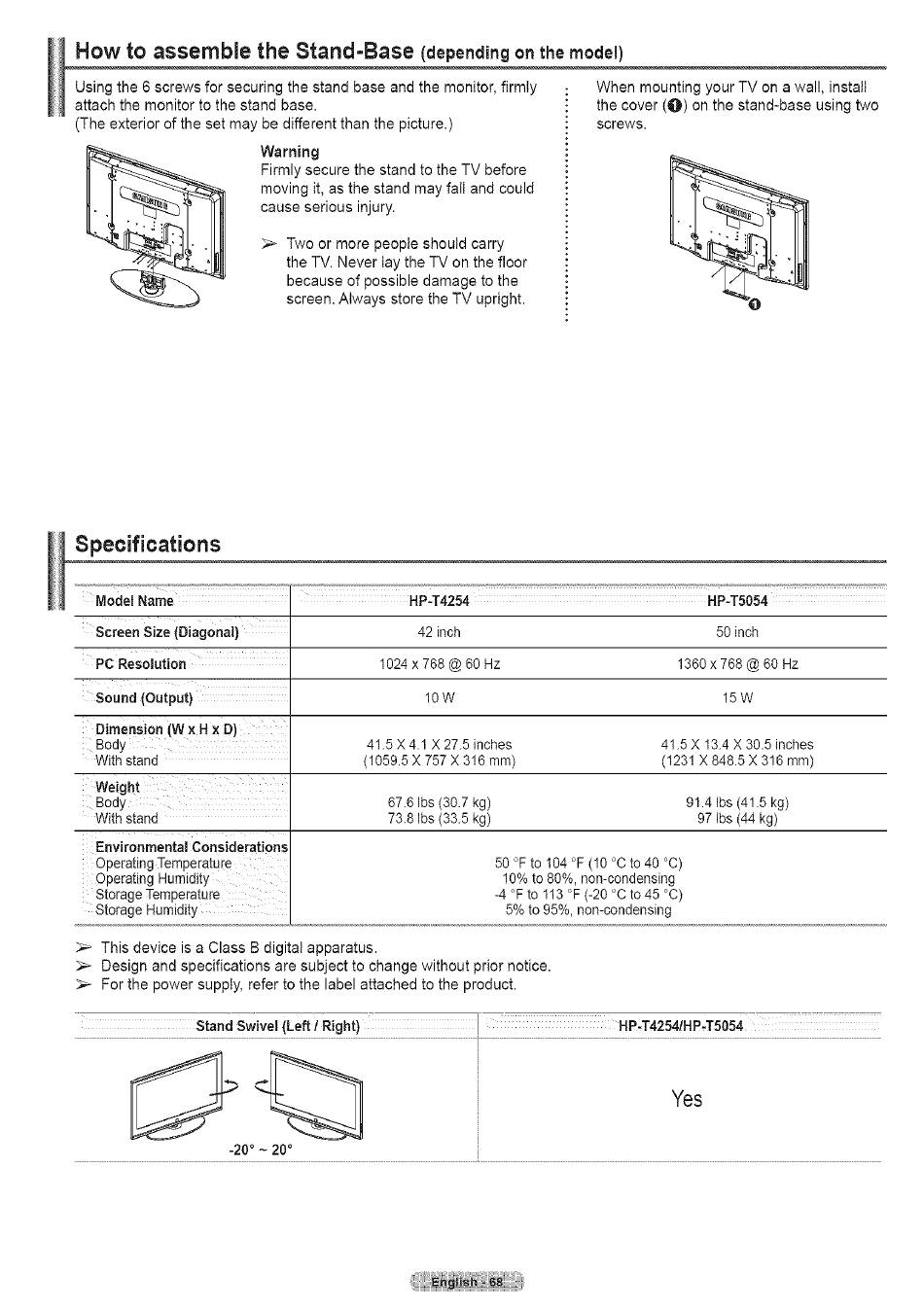

How To Assemble The Stand=Base; Specifications - Samsung HP-T4254 Manual Del Proprietário

How to assemble the Stand=Base (depending on
the
model)
Using the 6 screws for securing the stand base and the monitor, firmly
attach the monitor to the stand base.
(The exterior of the set may be different than the picture.)
Warning
Firmly secure the stand to the TV before
moving it, as the stand may fail and could
cause serious injury.
;,_ Two or more people should carry
the TV. Never lay the TV on the floor
because of possible damage to the
screen. Always store the TV upright.
When mounting your TV on a wall, install
the cover (O) on the stand-base using two
screws.
Specifications
Model Name
Screen Size (Diagonal)
PC Resolution
Sound (Output)
Dimension (W x H x D)
Bod_ 41.5 X 4.1 X 27.5 inches 41.5 X 13.4 X 30.5 inches
With stand (1059.5 X 757 X 316 ram) (1231 X 848.5 X 318 mm)
Weight
Bodj 67.6 Ibs (30.7 kg) 91.4 Ibs (41.5 kg)
With stand 73.8 Ibs (33.5 kg) 97 Ibs (44 kg)
Environmental Considerations
Operating Temperature
Operaung Humidity
Storage Temperature
Storage Humidity,
HP-T4254 HP-T5054
42 inch 50 inch
1024 x 768 @ 60 Hz 1360 x 768 @ 60 Hz
10W 15W
50 °F to 104 °F (10 °C to 40 °C)
10% to 80%, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5% to 95%, non-condensing
_-- This device is a Class B digital apparatus.
)_- Design and specifications are subject to change without prior notice.
_-- For the power supply, refer to the label attached to the product.
Stand Swivel (Left/Right) HP-T4254/HP-T5054
Yes
.20 ° ~ 20 °
