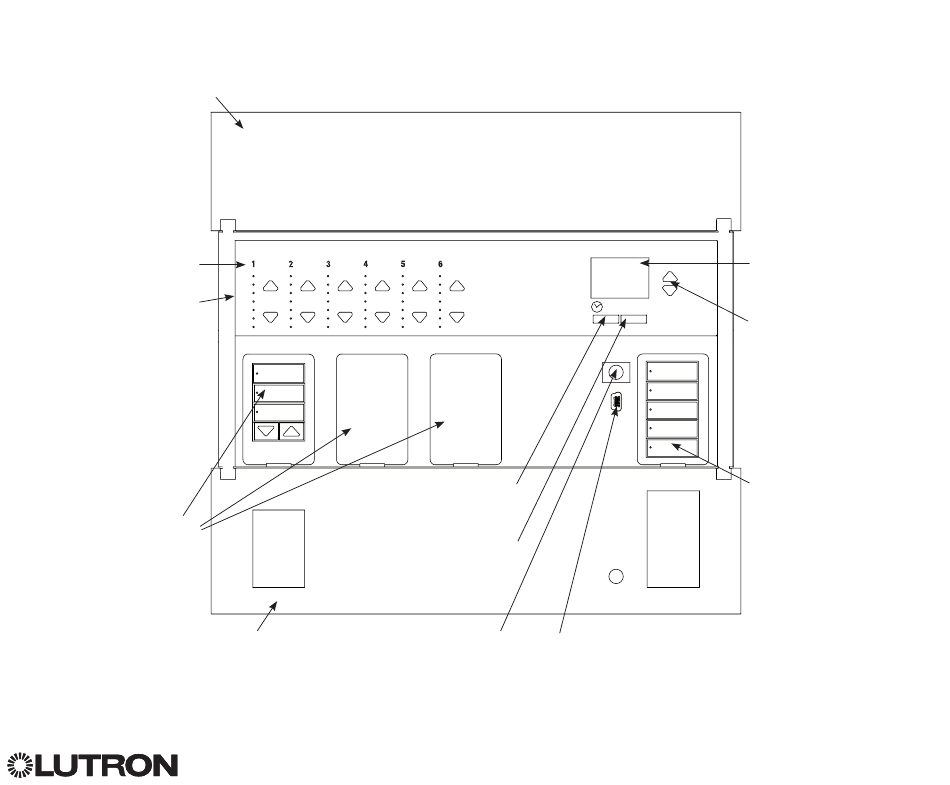

Features and Functions of the GRAFIK Eye
Hinged faceplate
Zone numbers
Zone raise/lower buttons
Zone LEDs display current
lighting zone levels
Optional Shade
button groups
Preset and raise/lower
buttons with integral LEDs
(maximum of 3 button
groups)
Hinged faceplate
®
{
Timeclock button
Displays current
Used for programming
Infrared receiver
For handheld remote use
For additional information, see the complete installation and operation guide at www.lutron.com/qs
QS Control Unit
®
timeclock info
OK button
USB type mini B
For programming via PC
GRAFIK Eye QS Control Unit Quick Installation and Operation Guide 2
®
Info screen
Displays status or
programming functions
OK
Master buttons
Temporarily raise and lower
lighting levels on unit
Scene buttons
With integral scene
indicator LEDs
