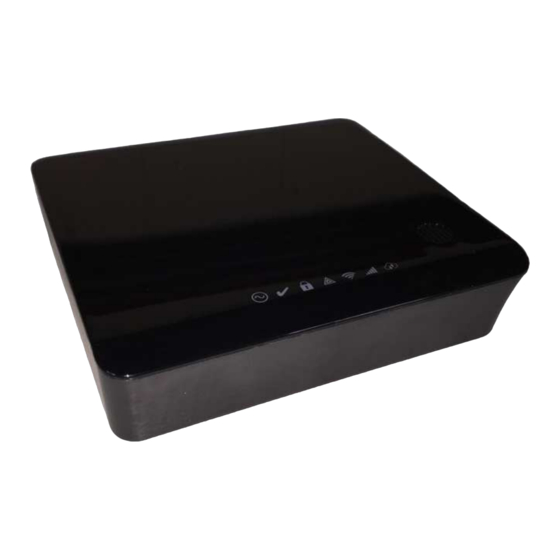

DSC iotega Guía De Usuario De Inicio Rápido

To download the full installation and user manuals and register your product, please visit:
www.DSC.com/m/29009982 or scan the QR code to the right.
Status LED
Power
Ready
Armed
Trouble
Wi-Fi
Signal Strength
Cellular
Signal Strength
Remote Connection
Notes: During a system test, all LEDs flash at the same time.
During an installer walk test, the Ready, Trouble, and Armed LEDs flash at the same time.
l
If the Remote Connection status LED flashes red, the server may be undergoing maintenance or experiencing technical difficulties. If the prob-
l
lem persists, contact your installer.
For more detailed descriptions of the panel indicators, refer to the iotega Self-Contained Wireless Security System User Manual.
l
Observe all safety, cleaning, and maintenance instructions specified in the user manual.
l
29010227R001
Quick Start User Guide
Panel indicators
Description
ON (green): AC power is connected to the system.
Flashing (green): System test is in progress.
OFF: There is no AC to the system.
ON (green): The system is ready to arm and there are no fire or CO alarm conditions.
Flashing (green):
The system is eady to arm, but force arm able zones are open.
l
System test is in progress, installer walk test is in progress.
l
OFF: The system is not ready to arm because a zone is not secure, or a fire or CO alarm condition is present.
ON (red): The partition is armed.
Flashing (red):
The system is in alarm.
l
System test is in progress.
l
Installer walk test is in progress.
l
OFF: The partition is disarmed.
ON (amber): A system trouble is present.
Single flash (amber): The system is in the first level trouble menu [*][2].
Double flash (amber): The system is in the second level sub-menu.
Triple flash (amber): The system is in the third level sub-menu.
Flashing (amber):
Enter your access code to view troubles.
l
System test is in progress.
l
Installer walk test is in progress.
l
OFF: There are no system troubles.
ON:
Green: The radio is active with strong signal strength.
l
Amber: The radio is active with weak signal strength.
l
Red: There is no signal.
l
Flashing (green): The radio is active in Wi-Fi protected setup (WPS) mode.
Flashing (amber): Z-Wave radio is active in learn pair mode, system test is in progress.
OFF: The radio is inactive or not connected to the network.
ON:
Green: Cellular is active with strong signal strength.
l
Amber: Cellular is active with weak signal strength.
l
Red: A communicator is installed but there is no signal or connection.
l
Flashing (amber): System test is in progress.
OFF: A communicator is not installed or not configured.
ON (green): The link is active with a server.
Flashing (red): The link is active, but is not connecting with a server.
Flashing (amber): System test is in progress.
OFF: The link is not yet active with any server.
