420010309700 Multiflam 500.1 - 600.1 PR/PR
EN

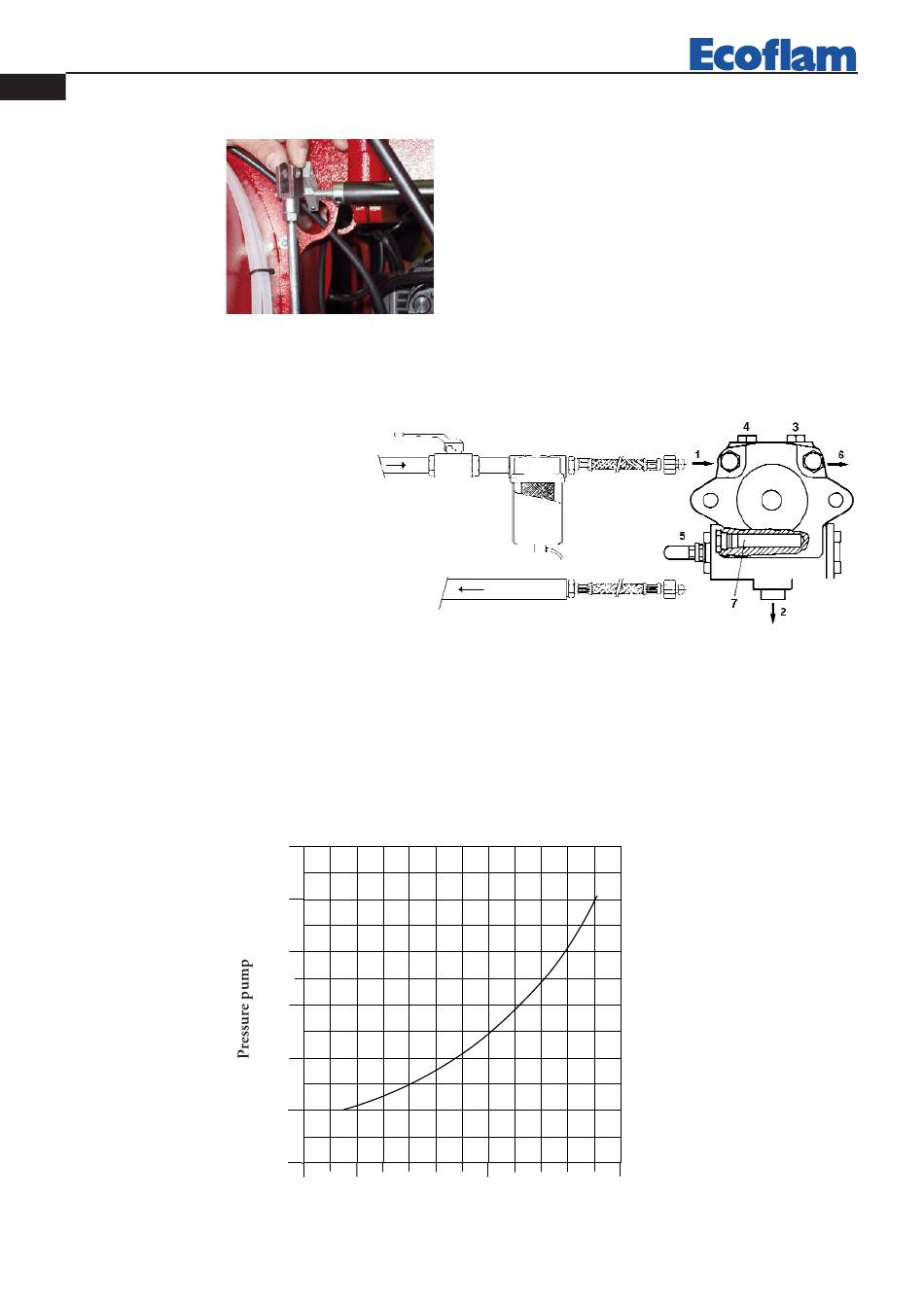

1 - Inlet
2 - Return
3 - Bleed and pressure gauge port
4 - Vacuum gauge port
5 - Pressure adjustment
6 - Nozzle outlet
7 - Heater
WARNING: For a correct working of the pump, verify what follows:
Pump :
Oil temperature at the pump:
Maximum allowable pressures:
Pump inlet pressure:the vaporisation of light fraction of heated heavy oil causes premature pump wear, to
avoid this, use the inlet pressures shown in the graph.
WARNING !

HEAVY OIL FEEDING

SUNTEC TA...C40105
Max. 140 °C
Max. 5 bar on inlet
PUMP'S PRESSURE / OIL TEMPERATURE DIAGRAM
bar 6
5
4
3
2
1
0
50
Oil temperature
230V 50Hz
100
Oil temperature
28
150 C°
LFL 1.333
