KZ705AS
KZ705IAS
Installation Manual
D
ESCRIPTION

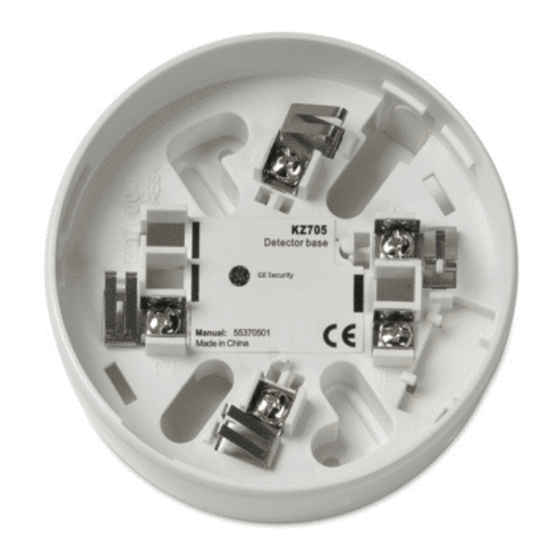

The KZ705 family of sounder bases comprises:
•
KZ705AS. Detector base with siren for use with analogue fire
systems.
•
KZ705IAS. Isolated detector base with siren for use with
analogue fire systems.
I
NSTALLATION
For general guidelines on fire system planning,
design, installation, commissioning, use and
maintenance refer to the EN54-14 (2001) standard
and local regulations.
Placement and spacing
Locate ceiling mounted detector bases near the centre of the room
or hall whenever possible. Always place bases a minimum of 100
mm from any wall. When the base is wall mounted, the top of the
base should be 100-300 mm from the ceiling.
© 2003 GE Interlogix B.V.. All rights reserved.
Version 1.1 / May 2004
55370508
KZ705 Series Detector Base with Siren
When more than one detector is used, use the spacing of 9 m as a
guide on smooth ceilings. Other spacing may be used depending
on ceiling height, high air movement, and other conditions or
response requirements.
Where NOT to place detectors
One of the major causes of nuisance alarms is improper
placement of detectors. Avoid locating detectors:
•
Too close to kitchens or wood stoves where smoke can be
generated.
•
In garages and furnace rooms (due to exhaust fumes).
•
Too close to bathrooms. This can cause problems from
steamy baths or showers.
•
Where normal ambient air temperature can exceed 40°C, such
as attics.
Installation Manual
