Waste Tube
Outlet
Waste Stack

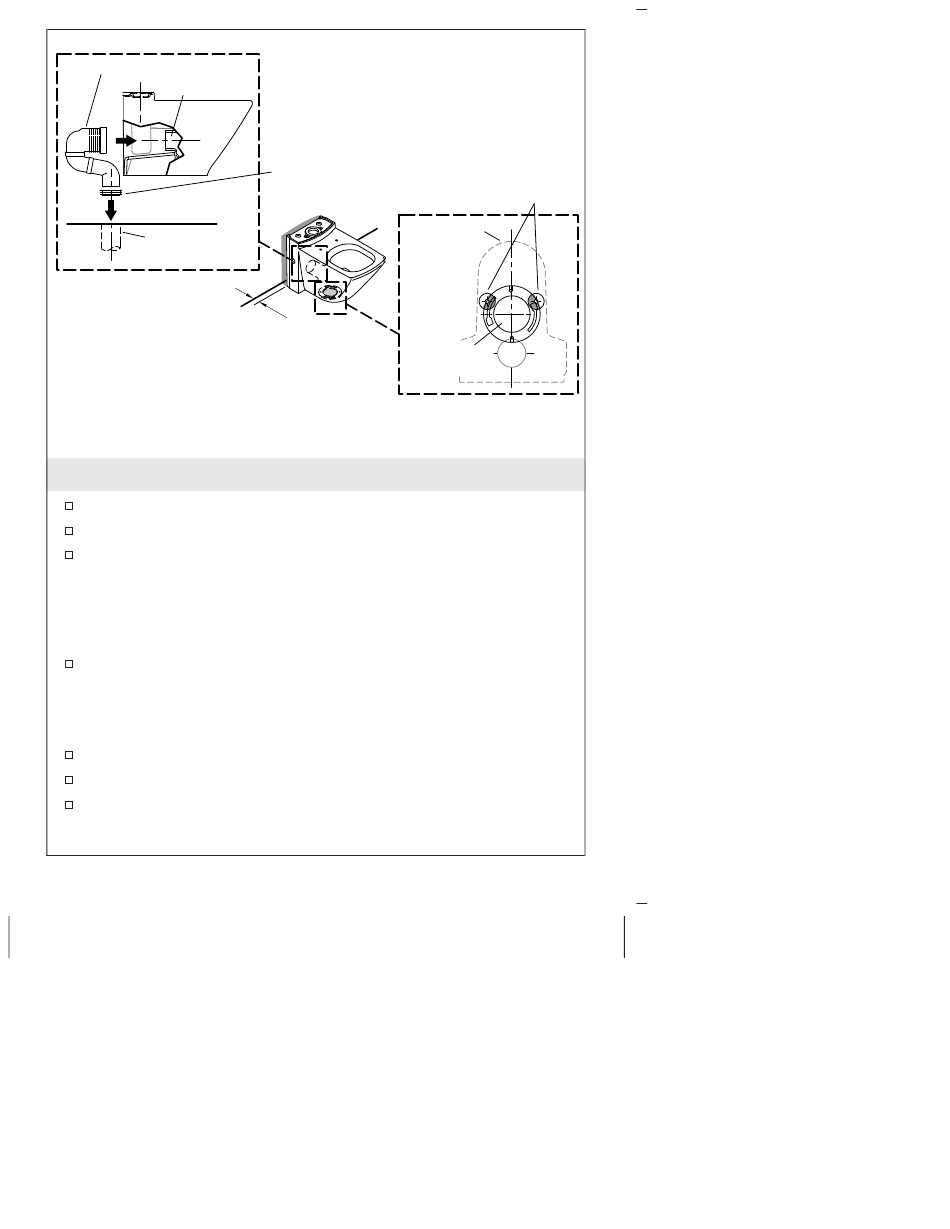

1. Mark the Installation
Remove the gasket from the waste tube.
Tilt the toilet and attach the 4" waste tube.
Move the toilet into the installation position. The waste tube and
waste outlet should be engaged.
IMPORTANT! If there is a floor flange and the base of the toilet
does not fit over the flange, you will need to cut or grind the flange
to allow proper installation.
Make sure there is a 1" (25 mm) gap between the back of the
toilet and the wall.
IMPORTANT! Make sure the toilet is correctly positioned before
marking the installation location.
Trace the base of the toilet on the floor.
Remove the waste tube and toilet, and set aside.
Using a scissors, cut the template along the outside line.
1095641-2-E
Remove gasket when
dry fitting the toilet.
Front of
Bowl
1"
(25 mm)
Waste
Stack
Orientation of flange
may vary.
4
Notch
flange here.
