and national installation requirements. Depending on
the power supply and system, a 12 to 6 AWG copper
conductor is required for installation. Commercially
available 6 AWG wire is recommended. The length of
the cable depends on the proximity of the switch to
proper grounding facilities.
• A screwdriver (not included in the accessory kit).

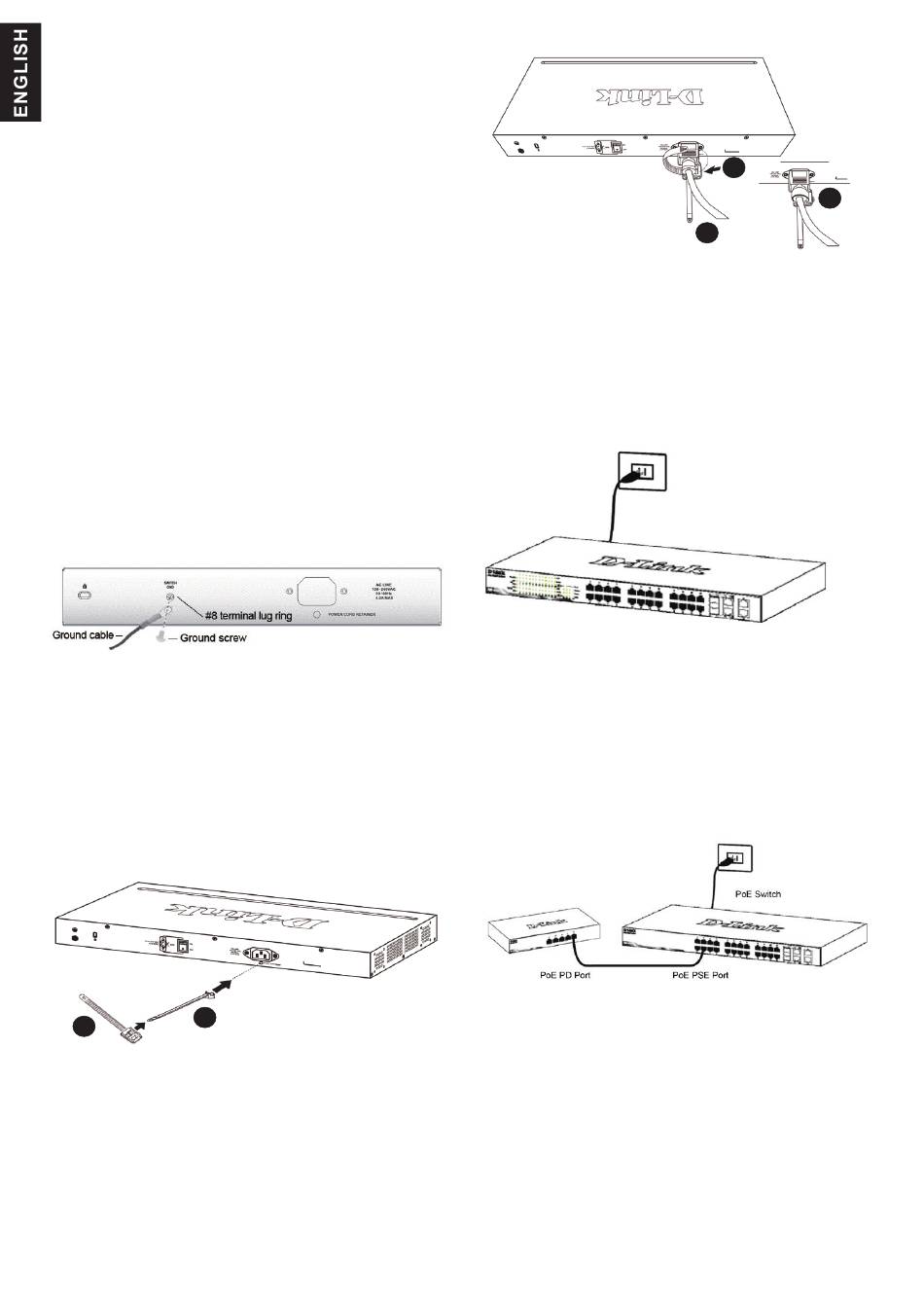

You can connect the switch to a protective ground by
following the steps below:
1. Verify if the system power is off.
2. Use the grounding cable to place the #8 terminal lug
ring (not included in the accessory kit) on top of the
ground-screw opening.
3. Insert the grounding screw into the ground screw
opening.
4. Using a screwdriver, tighten the grounding screw to
secure the grounding cable to the switch.
5. Attach the terminal lug ring at the other end of the
grounding cable to an appropriate grounding stud or
bolt on the rack where the switch is installed.
6. Verify that the ground connections on the switch and
the rack are securely attached.
7.
Install Power Cord Retainer(depending
on the purchased model)
To prevent accidental removal of the AC power cord, it is
recommended to install the power cord retainer together
with the power cord.
1. Attach the tie wrap to the switch.
2. Slide the retainer through the tie wrap.
1
2
3. Connect the power cord to the switch.
4. Use the retainer to circle around the power cord.
5. Fasten the tie wrap on the retainer to secure the
power cord.
4
Step 3 – Plugging In The AC Power
Cord
It is now possible to connect the AC power cord to
the rear of the switch and connect the other end to an
electrical outlet (preferably one that is grounded and
surge protected).

Power Failure

As a precaution, the switch should be unplugged in case
of a power failure. When power is resumed, plug the
switch back in again.
Note: Some models are a PoE Powered Device (PD)
and can receive power from PoE Power Sourcing
Equipment (PSE). To power such switch from a PoE
power source, you can connect PSE to PD port through
a standard Cat5 UTP cable.
Management Options
The D-Link switch can be managed by using the Web
User Interface (Web UI), D-Link Network Assistant
(DNA), console port, Telnet, or Simple Network
Management Protocol (SNMP) management interfaces.
If you wish to manage a single D-Link switch, the Web UI
may be the best option. Each switch must be assigned
its own IP address, which is used for communication with
the management PC. However, if you wish to manage
multiple D-Link switches, DNA may be the best option.
You do not need to change the IP address of your PC
4
5
3
