Left a free space of 50 cm around the autoclave.
Recommended minimum
separation: 50 cm
Fig. 6.1 Lock wheels (80L)
Fig. 6.1 Lock wheels (150L)
Water type mg/l
Soft water ≤17
Slightly hard water ≤60
Moderately hard water ≤120
Hard water ≤180
Very hard water >180
mg/l: milligrams per liter of calcium carbonate water (CaCO
*fH: French grade (10.0 mg CaCO
/l)
3
*dH: German grade (17.8 mg CaCO
3
*eH: English grade (14.3 mg CaCO /l)
3
J
.P. SELECTA s.a.u.
CODIGO 80342 REV H

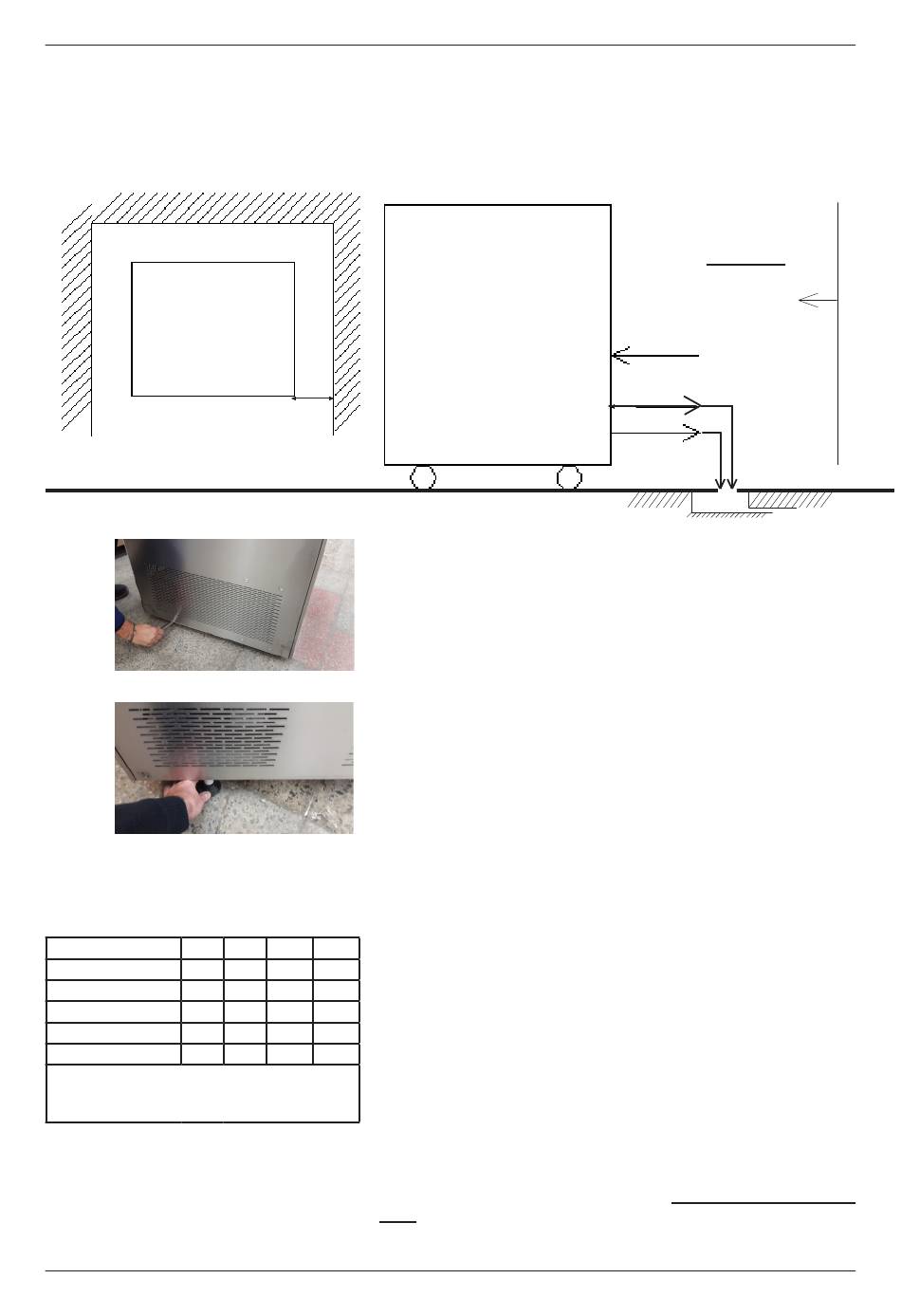

6. Installation

6.1 Location
Provide a water tap and a drain box, approximately at this point:
Place the autoclave on a flat, horizontal and stable surface, appropriate to
the weight of the machine.
For an ergonomic use, leave a free space of about 50cm around the machine.
To facilitate maintenance operations, it is advisable to have direct access to
all sides of the autoclave.
Immobilize the autoclave, adjusting it to the ground, by using the stops located
in the front part of the appliance, provided for that purpose.
Place the autoclave near an electrical outlet, water, and drain.
According to the legislation, the autoclave must be located in such
a way that the discharge outlet of the safety valve does NOT point
to people or can reach them in the case of steam escaping.
In the autoclave, the safety valve outlet points to the rear.
6.2 Connection to the water network
- You need a water tap with 3/4 thread (same as washing machines or other
*fH *dH *eH
appliances) (see point 3. Water installation)
≤1.7 ≤0.95 ≤1.19
- It needs a water pressure between 3 and 4 bar. If the water pressure is
≤6.0 ≤3.35 ≤4.20
greater than 4 bar, it is advisable to install a reducer.
≤12.0 ≤6.70 ≤8.39
≤18.0 ≤10.05 ≤12.59
- Connect one of the hoses between the tap and the "water inlet".
>18.0 >10.05 >12.59
)
6.3 Connection to the drain
3
/l)
The autoclave will eject excess steam, hot air and hot water during pasteuri-
zation / sterilization.
They should be connected to a drain, chest, open air ..., two hoses:
«CONDENSED OUTPUT»: This hose must be firmly attached to the
drain, to prevent the force of the steam from removing the hose from the
drain.
Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España
e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es
ENE/2020 (Sujetas a modificaciones sin previo aviso)
AUTOCLAVE
Water in
Air/steam out
Water/steam out
Front
Drainage preferably at a level below the
water outlets and purge.
Water faucet
(above the water entrance)
Water in pressure:
Between 3bar...4bar
Arqueta
