SimplyGo User Manual

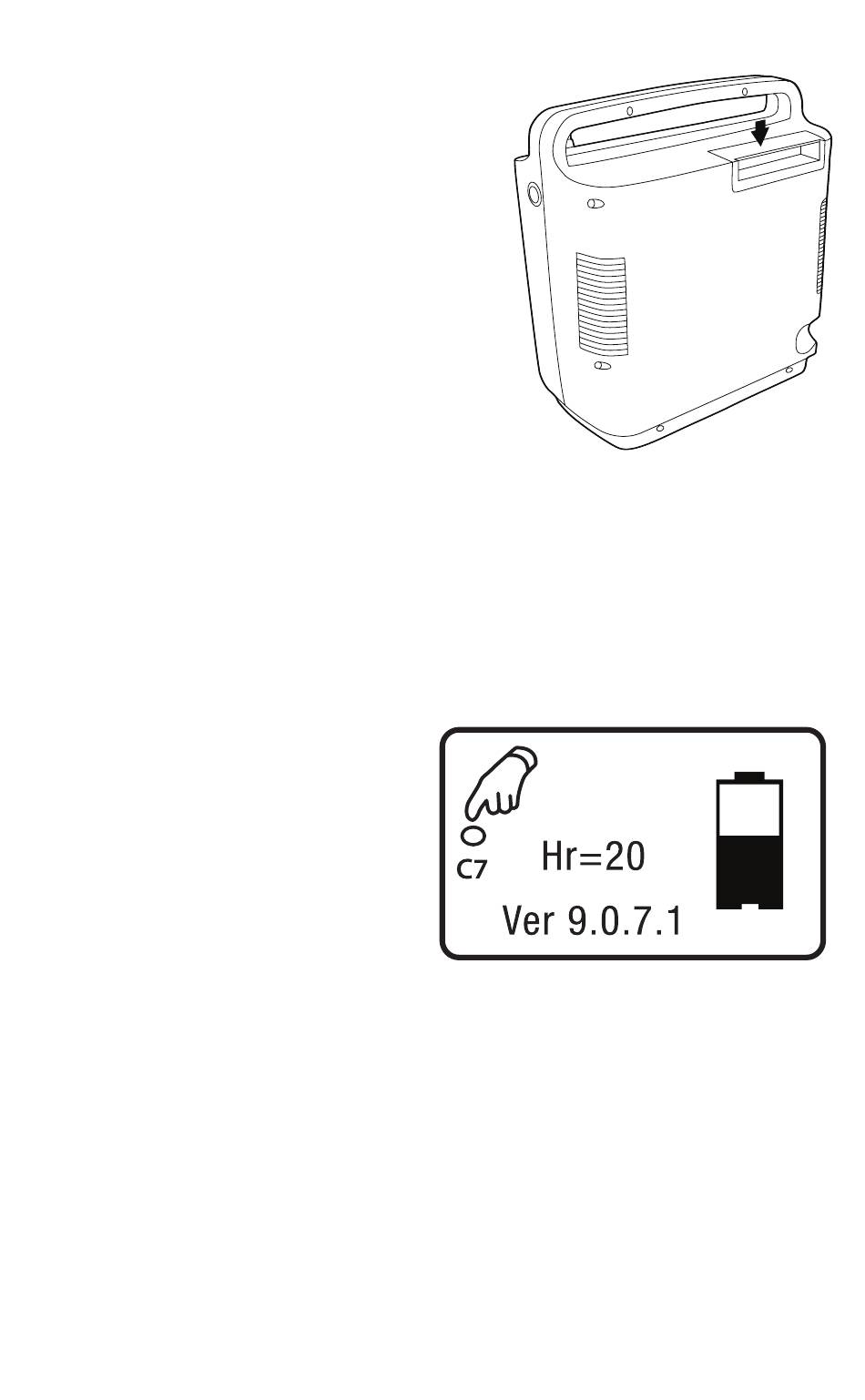

4� To insert the battery, insert your
fingers into the opening in the battery
handle and grip the handle between
your fingers and thumb� Position the
battery over the battery compartment
in the top, rear corner of the SimplyGo
enclosure with your fingers pointing
toward the handle� The battery
compartment is shaped so that there
is only one way the battery can be
inserted and this will align the battery
correctly� Lower the battery into its
compartment until the handle contacts
the equipment enclosure� Firmly push on the battery handle until it snaps
into place in the enclosure top�
5� After the battery is inserted, check to make sure the battery handle is
level with or slightly below the top of the plastic case�
6� Momentarily depress the Power key, and the following should occur:
· The LCD and the 5 Key
backlights turn ON
· The screen shown here
displays on the LCD
If you do not see the battery
symbol or the device does not
turn On, the battery is not installed
correctly� Re-insert the battery and
make sure it snaps in place�
14
