NOTE: This step is applicable after the necessary wiring

is completed.

WARNING

To avoid possible fire or shock, make sure that the

electrical wires are completely inside the canopy housing

and not pinched between the housing and the ceiling.

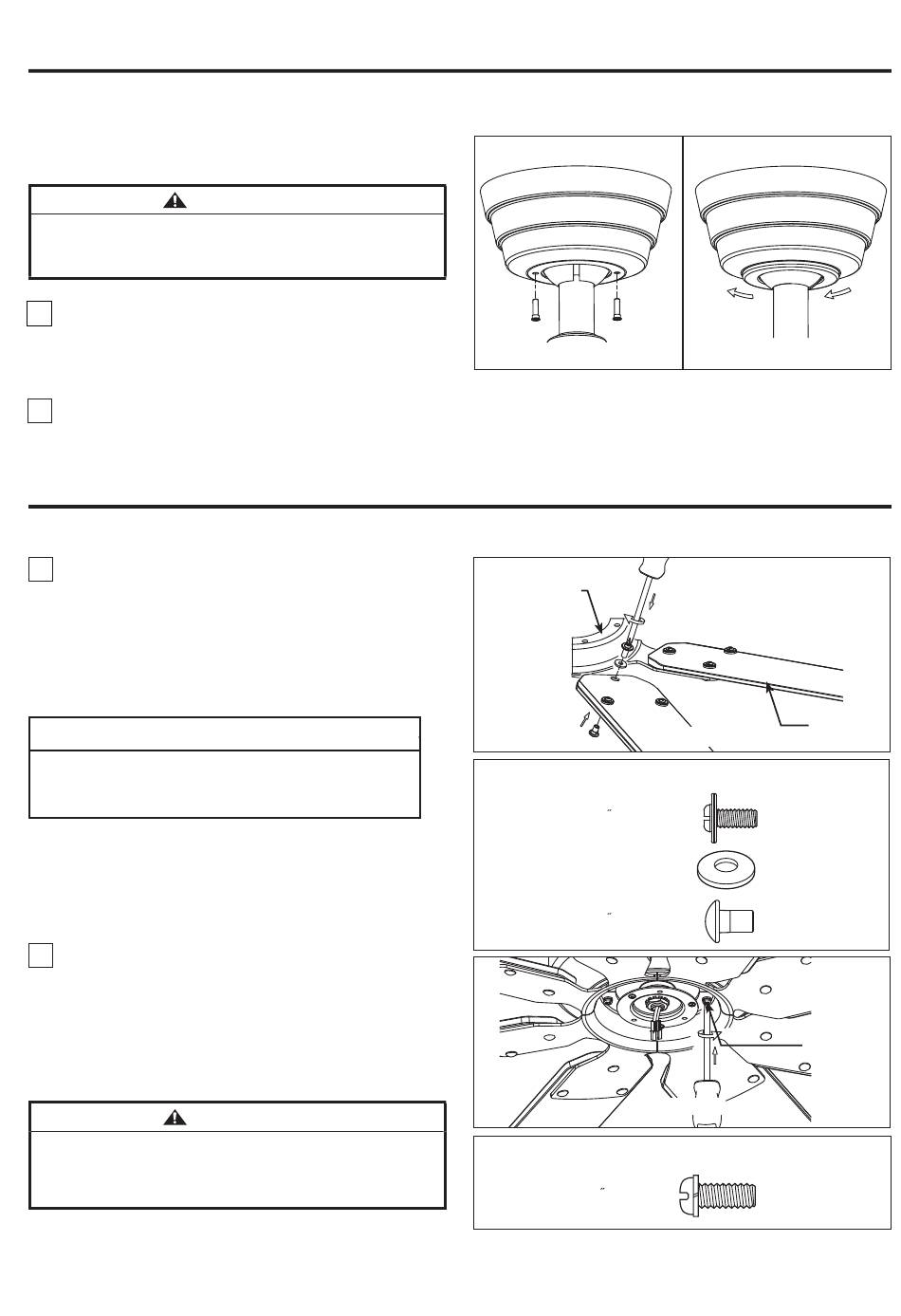

1. Remove the two shoulder screws in the hanger

bracket. Align holes in the canopy with holes in the

hanger bracket and securely attach canopy using the two

shoulder screws from the hanger bracket. (Figure 1a)

2. Securely attach and tighten the canopy screw cover

r e

h t

d l

r e

c s

the keyslot twist-lock feature. (Figure 1b)

1. Lay the side of the blade holder on a flat surface

with the inside of the blade holder facing up.

Assemble the blade to the blade holder with the

carriage nuts, flat washer, and screws. Make sure

that the blades are fully seated against the blade

holders. Tighten screws with screwdriver provided,

don't over-tighten. (Figure 1)

CAUTION

Do not connect fan blades until the fan is completely

installed. Installing the fan with blades assembled

may result in damage to the fan blades.

2. Attach assembled blades and blade holders to

the motor hub using the provided screws with lock

washers. Make sure the screws securing the blade

holders to the motor hub are tight and that the blade

holders are properly seated. (Figure 2)

NOTE: Periodically check Blade Holder hardware and re-

secure if necessary. (see Maintenance below)

WARNING

To reduce the risk of personal injury, do not bend the

blade holders when installing, balancing the blades or

cleaning the fan. Do not insert foreign objects in between

the rotating blades.
