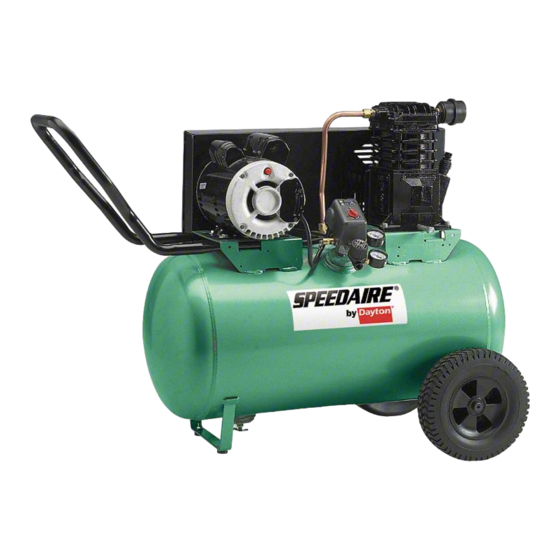

Speedaire 3JR85 Manual De Instrucciones De Operación

Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Speedaire
Air Compressors
For Warranty & Service call 1-888-606-5587
Do Not Return To Branch
Description
Air compressor units are intended to provide compressed air to power pneumatic
tools and to operate spray guns. The pumps supplied are oil lubricated. A small
amount of oil carryover is present in the compressed air stream. Applications
requiring air free of oil or water should have the appropriate filter installed. The air
compressor unit must be mounted on a solid floor or solid ground. Any other use of
these units will void the warranty and the manufacturer will not be responsible for
problems or damages resulting from such misuse.
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT EQUIPMENT PROBLEMS.
To help recognize this information,
observe the following symbols.
Danger indicates
an imminently
hazardous situation which, if not
avoided, WILL result in death or serious
injury.v
Warning indicates
indicates a
potentially hazardous situation which,
if not avoided, COULD result in death or
serious injury.
Caution indicates
indicates a
potentially hazardous situation which,
if not avoided, MAY result in minor or
moderate injury.
Notice indicates
important
information, that if not followed, may
cause damage to equipment.
NOTE: Information that requires special
attention.
Form 5S6007
Portable
®
unpacking
After unpacking the unit, inspect
carefully for any damage that may
have occurred during transit. Make sure
to tighten fittings, bolts, etc., before
putting unit into service.
Do not operate tool
if damaged during
shipping, handling or use. Damage
could result in bursting and cause
injury or property damage.
General Safety Information
CALIFORNIA PROPOSITION 65
This product or its
power cord may
contain chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.
You can
create
dust when you cut, sand, drill
or grind materials such as
wood, paint, metal, concrete,
cement, or other masonry. This dust
often contains chemicals known to
cause cancer, birth defects, or other
reproductive harm. Wear protective
gear.
Printed in U.S.A.
02433
0410/041/VCPVP
Cast Iron Series
Breathable Air Warning
This compressor/pump is NOT
equipped and should NOT be
used "as is" to supply breathing
quality air. For any application of
air for human consumption, you
must fit the air compressor/pump
with suitable in-line safety and
alarm equipment. This additional
equipment is necessary to properly
filter and purify the air to meet
minimal specifications for Grade
D breathing as described in
Compressed Gas Association
Commodity Specification G
7.1 - 1966, OSHA 29 CFR 1910.
134, and/or Canadian Standards
Associations (CSA).
DISCLAIMER OF WARRANTIES
IN THE EvENT THE COMPRESSOR
IS uSED FOR THE PuRPOSE OF
bREATHING AIR APPLICATION
AND PROPER IN-LINE SAFETy
AND ALARM EquIPMENT IS
NOT SIMuLTANEOuSLy uSED,
ExISTING WARRANTIES ARE vOID,
AND DAyTON ELECTRIC MFG.
CO. DISCLAIMS ANy LIAbILITy
WHATSOEvER FOR ANy LOSS,
PERSONAL INjuRy OR DAMAGE.
GENERAL SAFETy
Since the air compressor and other
components (material pump, spray
guns, filters, lubricators, hoses, etc.)
used, make up a high pressure pumping
system, the following safety precautions
must be observed at all times:
