Zi-Ste5500; Zi-Ste8000 / Zi-Ste8004 - Zipper ZI-STE2800 Instrucciones De Servicio

14.2.2

ZI-STE5500

14.2.3

ZI-STE8000 / ZI-STE8004

ZIPPER MASCHINEN GmbH www.zipper-maschinen.at

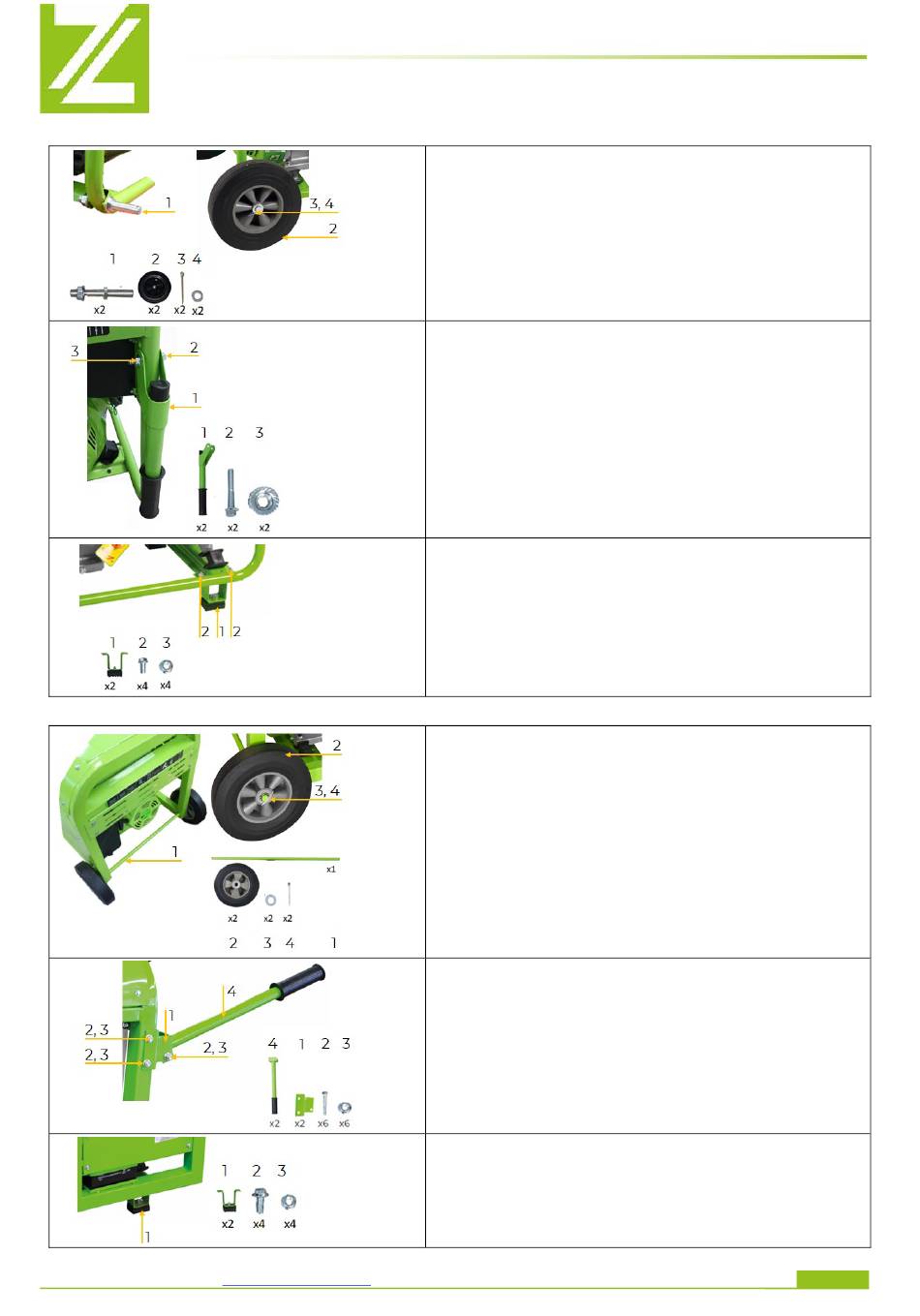

1. Assembly wheels
Install the axis (1) in the holes provided for this
•
purpose on the machine.
Place a wheel (2) with a washer (4) on the axis
•
(1) and fix it with a cotter pin (3).
2. Assembly handly
• Install the transport handles (1) on the frame
with a bolt (2) and nut (3) each.
3. Assembly rubber feet
Attach the rubber feet (1) to the frame with two
•
bolts (2) and nuts (3) each.
1. Assembly wheels
• Install the axis (1) in the holes provided on the
machine.
Place a wheel (2) with a washer (3) onto the axis
•
(1) and secure with a cotter pin (4).
2. Assembly handle
• Fix the handle mountings (1) to the frame using
bolts (2) and nuts (3) and then install the
handles (4) in the handle mountings (1) using a
bolt (2) and nut (3) each.
3. Assembly rubber feet
Attach the rubber feet (1) to the frame with two
•
screws (2) and nuts (3) each.
ZI-STE2800 / ZI-STE5500 / ZI-STE8000 / ZI-STE8004
ASSEMBLY
39
