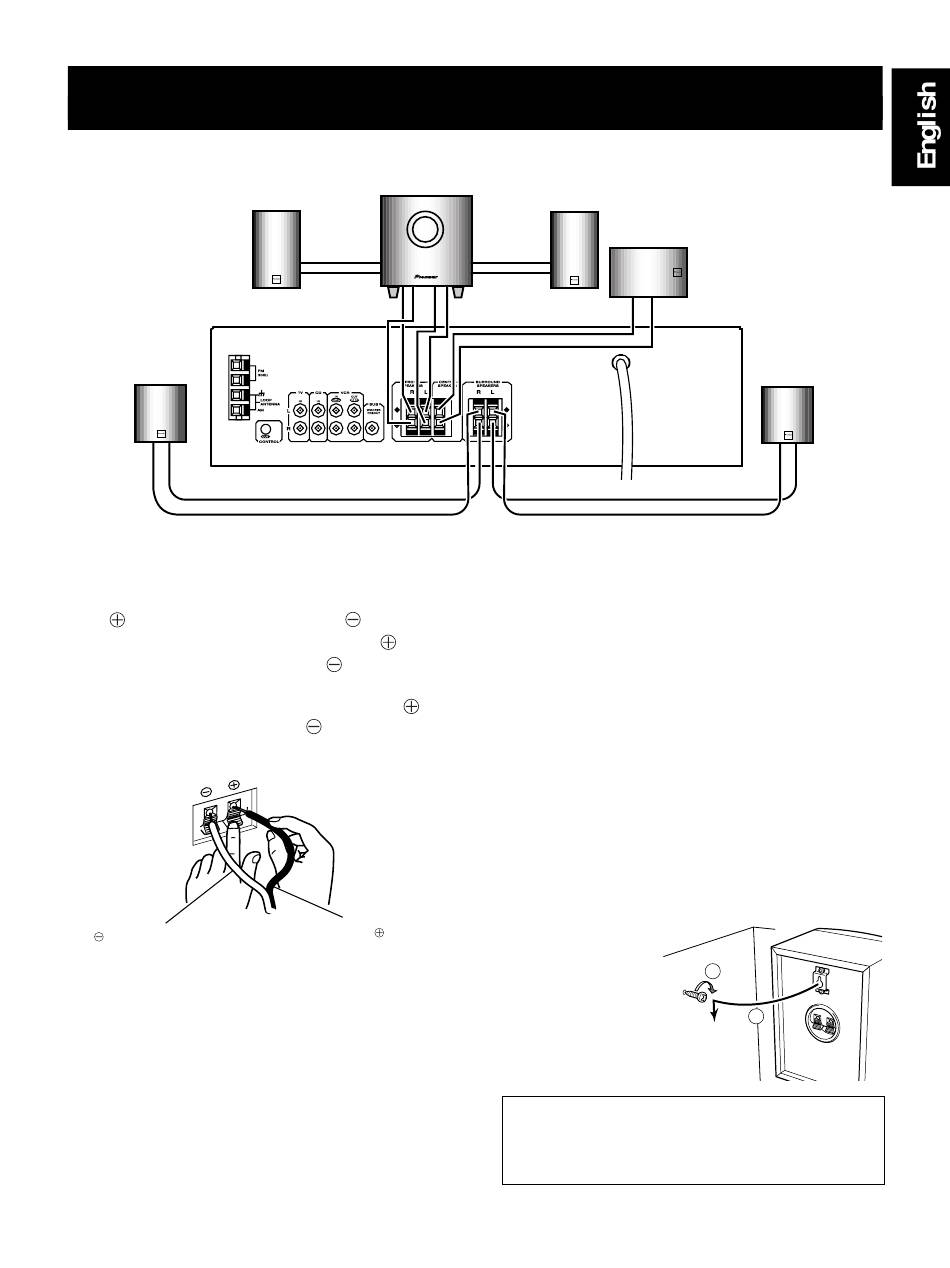

When use packed speaker system
Front right speaker
Rear right speaker
+ –
orange line
CONNECTIONS
1. Set the amplifier's power switch to OFF.
2. Connect the speaker cords to the input terminals at the
rear of the speaker system; connect the colored cord to
the terminal and the white cord to the
Bear in mind that the red input terminal has a " "
polarity, and the other terminal has a " " polarity.
3. Connect the speaker cords to the amplifier's speaker
output terminals. Connect the colored cord to the
terminal and the white cord to the
Presione la palanca del terminal de entrada e inserte la punta
del cable en el orificio, y luego suelte la palanca de modo que
retorne con efecto de resorte a su posición original.
Connect the white cord
to the teminal.
NOTES:
¶ Make sure that the speaker cords are connected to the
terminals securely. Insecure connections may cause not
only sound to be interrupted and noise to be generated
but also the cords to be shorted and the amplifier to
break down.
¶ If listening to a stereo performance with the speaker
system connected to a stereo amplifier and you find that the
bass is insufficient, the sound is not spread out and there is no
stereo effect; the cords of one of the speaker systems have
been plugged into the wrong polarity terminals.
¶ When test tone signal is set to Lch, Cch or Rch,
Subwoofer out has test tone sound.
Subwoofer
OUTPUT
OUTPUT
–
+
pink line light blue line
INPUT
INPUT
+ – – +
red line
dark blue line
terminal.
terminal.
Connect the colored cord
to the teminal.
NAMES AND FUNCTIONS OF PARTS
Front left speaker
Center speaker
–
+
+ –
yellow line
WHEN THE SPEAKER SYSTEM IS
MOUNTED ON A WALL (Except for
Subwoofer)
¶ Before fitting the satellite speakers, examine the walls to
confirm that their strength is sufficient to bear the weight
of the speaker system.
¶ This system is not provided with nuts and screws for
installation, so select suitable ones corresponding to the
qualities of your walls.
¶ If you are unsure of the qualities and strength of the
walls, consult a professional for advice.
¶ Pioneer will not be responsible for any accidents or
damage that result from improper installation.
¶ If fitted on a slanted wall, it may become loose and
present an accident risk.
1. Screw the screws into the wall.
2. Attach the speaker
to the wall so that
the heads of the
Wall
screws enter the
holes in the back of
the speaker, and then
push the speaker
downward to secure it.
PIONEER disclaims all
responsibility for damages that are caused by improper
connection, installation, inappropriate strength of the
wall, improper use and natural calamities etc.
Rear left speaker
+
–
green line
1
2
15
En
