ssembly Plan

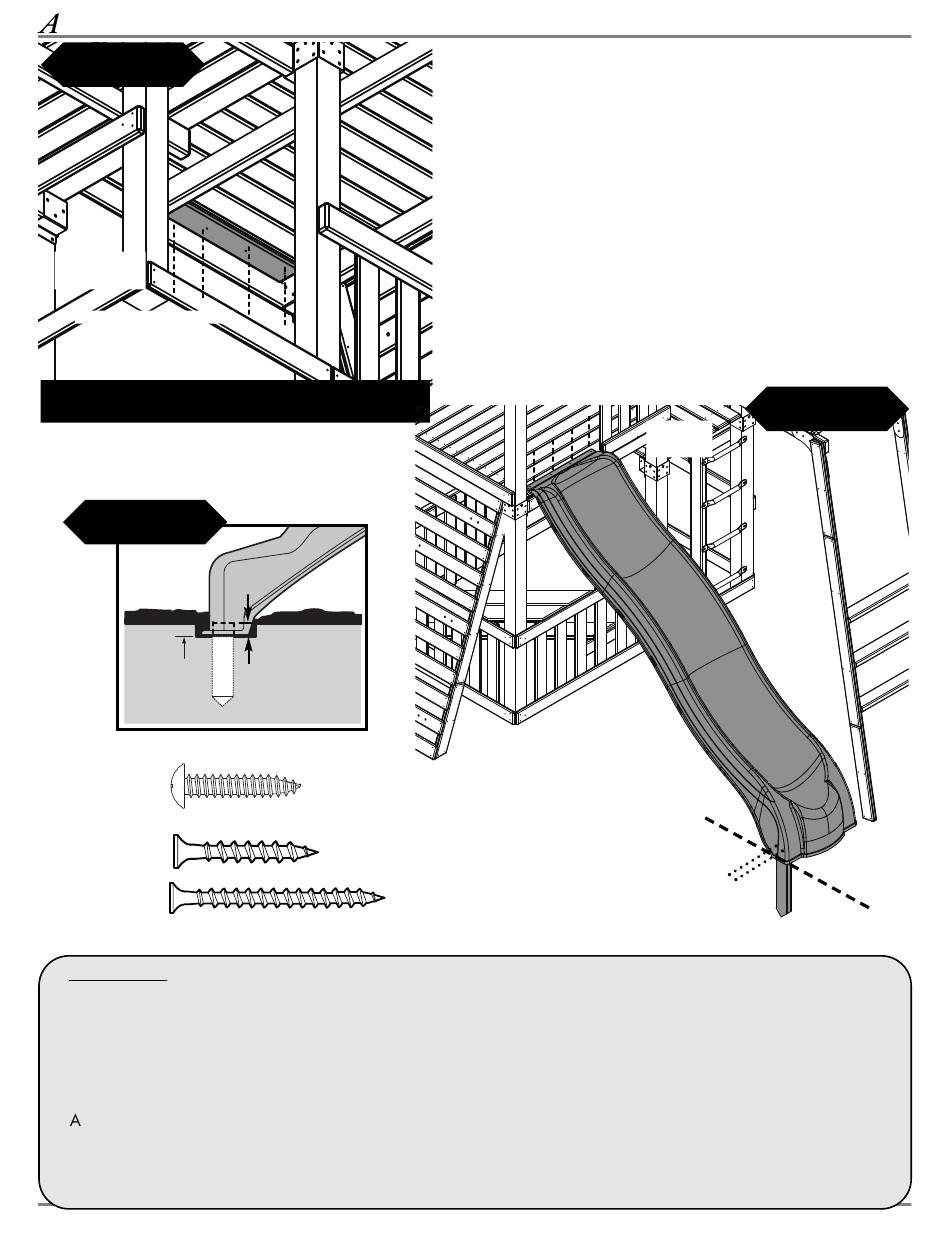

Fig. 36
(4)
1-1/2'' screws
[PF 3628] 1'' x 4'' x 20''
UNDER SIDE VIEW
Fig. 36b
2'' Below
Grade
1'' Truss screw
1-1/4'' screw
1-1/2'' screw
Slide Install.
1. Install Slide Support Board under Front Opening as shown in (Fig. 36).
2. Install Slide centered in the provided opening as shown in (Fig. 36a).
3. Prepare a level area of ground where the bottom of the slide rests 2" below grade (Fig. 36b).
4. Mark where the slide's bottom meets the ground and drive a 2" x 4" x 17-1/4" stake until its top is 2'' above the
grade prepared in Step 3. For reference, see (Fig. 36b).
5. ttach Slide to Stake using (2) 1-1/4'' screws as shown in (Fig. 36a).
Surfacing
Material
2'' Above
Grade
SLIDE
STAKE
1-1/4'' screws
46
Fig. 36a
(4)
1'' Truss
screws
(2)
2'' x 4'' x 17-1/4''
PF 3419
