6.1.2 AUT-WIG 200W
1
5
1 Gas nozzle
2 Gas diffuser

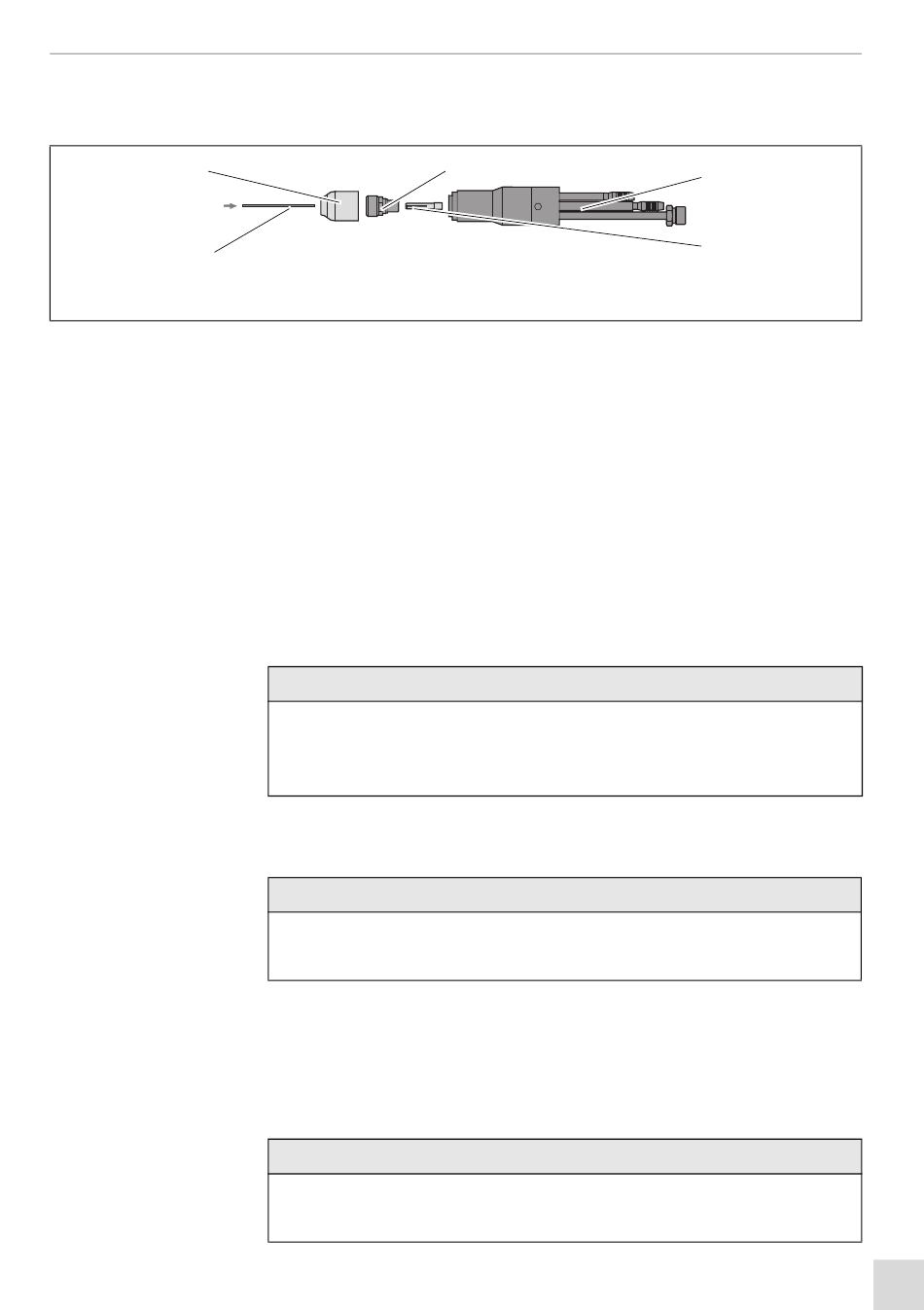

Fig. 2 Equipping the AUT-WIG 200W

6.2 Tungsten electrode

6.3 Connecting the TIG welding torch

6.4 Setting the shielding gas quantity

3 Torch body
4 Collet
1 Screw collet (3) with gas diffuser (2) into torch body.
2 Insert the tungsten electrode (4) into the torch body (2) from the front and
tighten it with the gas diffuser (2).
3 Screw gas nozzle (1) onto gas diffuser (2).
The electrode type is set by EN ISO 6848. The max. length of electrode
depends on the type of torch.
 2.3 Technical Data on page EN-4
NOTE
• The welding performance is affected by the selection of the tungsten
electrode and by wear. A smooth, groove-free sharpened end of the
tungsten electrode has a positive effect on the welding result.
NOTE
• Please observe the operating instructions of the power supply
manufacturer.
1 Connect machine-side hose assembly to power supply and secure it with a
connection nut.
NOTE
• The type and quantity of the shielding gas depends on the welding task
and the gas nozzle geometry.
2
5 Tungsten electrode
6 Putting into operation
3
4
EN - 9
