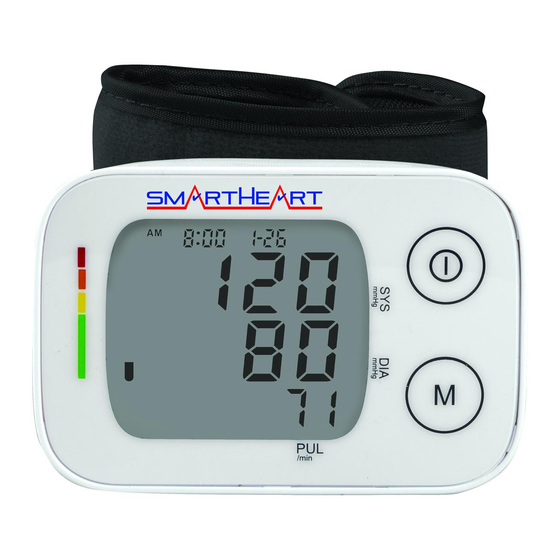

Automatic Digital
Blood Pressure Wrist Monitor
Model # 01-541
THIS QUICK START GUIDE IS INTENDED
AS A SUPPLEMENT TO THE INSTRUCTION
MANUAL. PLEASE READ THE COMPLETE
MANUAL PRIOR TO FIRST USE.
Before applying your blood pressure cuff, be sure your
wrist is within the appropriate range:
Wrist Circumference Range Suitable for
5.5" – 7.6" (14 cm – 19.5 cm)
A 15 minute resting period is needed to stabilize the
body prior to taking a reading. No eating, drinking or
smoking while resting.
Applying the Wrist Cuff
1. Be seated at a table or desk
with your feet flat on the floor.
Hold your left arm in front of
you with your palm facing
upward.
2. Apply the preformed cuff to
your left wrist so that the digital
display face is positioned on the
inside area of your wrist facing
you.
IF YOU HAVE ANY QUESTIONS OR ARE EXPERIENCING DIFFICULTIES, PLEASE CALL THE TOLL-FREE
CUSTOMER SERVICE HELP LINE FOR FURTHER ASSISTANCE AT 1-866-326-1313.
3. Adjust the cuff approximately 0.5" from the edge
of the head of the ulna bone. The cuff should fit
comfortably, yet snugly around your wrist.
Taking the Measurement
1. Rest your elbow on a solid
surface with your palm
facing upward. Elevate
your arm so that the cuff is
at the same level as your
heart. Be certain that cuff is
elevated to the proper level;
you may choose to support
your hand with a folded
towel or book. Relax your left hand. Be seated with
your feet flat on the floor and legs uncrossed.
2. Firmly press the POWER
button to turn the unit on.
The display will briefly flash
a test display. Fig. 1
3. The cuff will automatically
inflate; when the
measurement is complete
and the cuff deflates,
your blood pressure
measurement and pulse
will display simultaneously
on the display screen. Both
the systolic and diastolic
readings will display at the
same time, Fig 2.
4. Consult the included
Instruction Manual for information on
interpreting your reading results.
5. Select POWER to turn the unit off and conserve
energy and battery life.
Please Note:
• You can stop the inflation or deflation process of the
cuff at any time by pressing the POWER button.
• Many factors such as genetics, age, sex, altitude,
physical activity, anxiety, muscular development,
certain medications or even the time of day can
influence blood pressure.
• Blood pressure varies from moment to moment; even
readings taken after proper rest periods can vary.
Home blood pressure readings may vary as much as
10-20 points from ones taken at your doctor's office.
• Variations in your individual readings should only be
interpreted by your physician or trained health care
professional.
• We encourage you to consult with your physician
to achieve the maximum benefit from your blood
pressure monitor.
Fig. 1
Fig. 2
#93-2100 09/16
©2016 Veridian Healthcare
