Install the Wall Charger Connect on a smooth
surface.
–
The Wall Charger Connect is designed for instal-
lation on walls. In order to ensure secure fasten-
ing, check the condition of the wall before instal-
lation. Make sure that the wall on which the Wall
Charger Connect is to be installed is sufficiently
stable to hold 88 lbs (40 kg) in weight.
–
Install the Wall Charger Connect as close as pos-
sible to the preferred parking position for the
vehicle. Take the orientation of the vehicle into
account.
–
Install the Wall Charger Connect so that it is not
near pathways and the cables do not cross any
pathways.
– Please note: When charging with high currents,
the Wall Charger Connect can heat up. Make
sure that the Wall Charger Connect is installed in
a well-ventilated place.
–
The Wall Charger Connect has a charging cable
measuring 14.8 feet (4.5 m). Make sure that you
can reach the charging socket of your vehicle
without putting tension on the cable.
– Make sure that the Wall Charger Connect is
installed such that the parking position of the
charging plug is between 2 feet and 4 feet
(60 cm and 120 cm) above the ground.
Cable accesses and electrical sup-
ply
The Wall Charger Connect is intended for installation
with cable conduits. Access to the Wall Charger Con-
nect is possible from above or below.

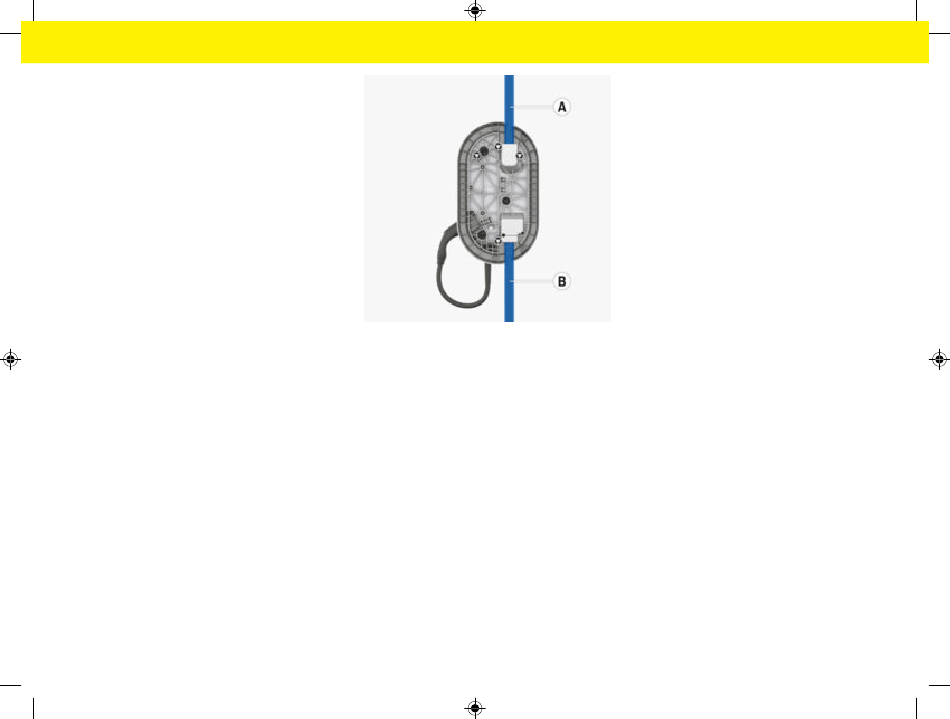

Fig. 9 Upper and lower cable access (rear view of the
Wall Charger Connect, cable conduits are marked in
blue)
The following criteria must be observed when select-
ing and installing cable accesses:
– The Wall Charger Connect can accommodate
cable conduits between ¾" and 1¼".
– The cable conduits used must be metal, and
flame-retardant.
– Always use sealed cable conduits so that a de-
gree of protection of 3R can be ensured.
– Always use a UL-certified cable conduit system.
– Metallic cable conduits are not grounded
through the Wall Charger Connect. Conduit
grounding must be ensured by a qualified elec-
trician.
–
The Wall Charger Connect is designed for con-
nection cables from AWG 0 to AWG 4.
Requirements and prerequisites
–
The Wall Charger Connect is designed exclu-
sively for the connection of copper wires. When
using an AWG 4 supply cable, it must have a
temperature rating of 90 degrees.
When using a supply cable of AWG 3 or larger,
this cable must have a temperature rating of 75
degrees.
– Use a fuse that guarantees reliable operation of
the Wall Charger Connect.
– If your power supply does not permit 80 A, the
electric current of the Wall Charger Connect can
be limited during installation.

Installation materials required

The following material is required for the installation:
– Cables and cable conduits including tight cable
conduit fittings
– Duct seal category R11374 UL-certified
– Fastening materials for the wall installation (flat
head screw 8 x 200; wall plugs to suit the wall)

Tools required

The following tools are required:
–
Torx screwdriver TX 25
–
Philips screwdriver
–
Hexagon socket wrench 1/8"
–
Holesaw for the cable conduit
–
Small screwdriver
–
Pliers to remove insulation from the wires
–
Small hacksaw
–
Knife
–
Torque wrench
