LIFT CORPORATION

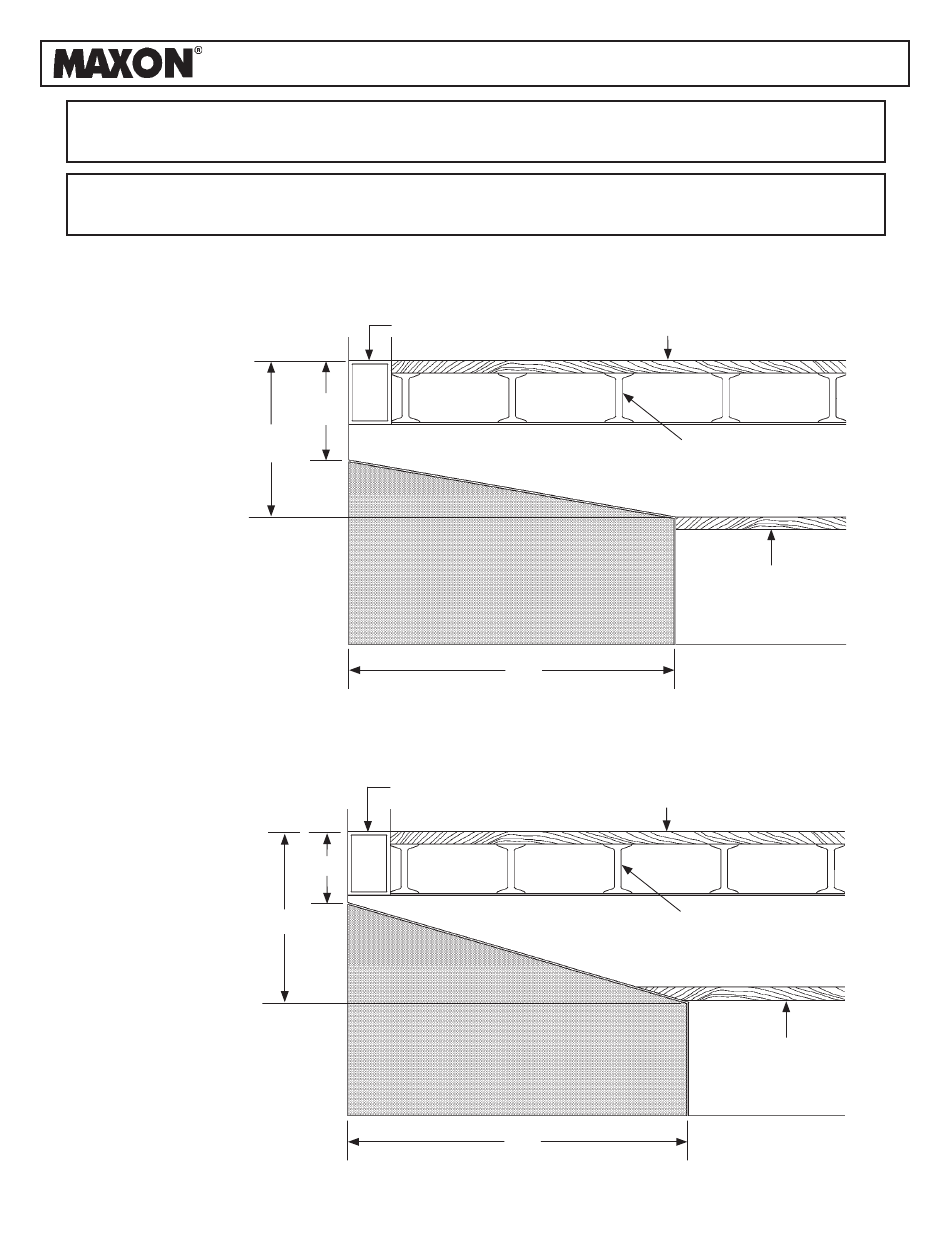

NOTE: The platform cutout area shown below applies to trucks and trailers. Typical
truck frame is shown. The dimensions, shown in the illustrations, are maximum.
NOTE: Refer to the platform clearance cutout areas shown in FIGS. 2-1 and 2-2. Re-
move any part of the rear sill that protrudes into this area.
1. Fit the Liftgate to vehicle body by cutting
vehicle frame as shown in FIGS. 2-1 or 2-2.
© MAXON Lift Corp. 2020
REAR SILL
7"
11"
PLATFORM CLEARANCE CUTOUT AREA
VEHICLE FRAME CUT FOR GPTLR-25 & GPTLR-33
REAR SILL
5"
10-5/16"
PLATFORM CLEARANCE CUTOUT AREA
VEHICLE FRAME CUT FOR GPTLR-44 & GPTLR-55
M-20-16
Sht. 2 of 6 DSG#
BODY FLOOR
TRUCK FRAME
23"
FIG. 2-1
BODY FLOOR
TRUCK FRAME
23"
FIG. 2-2
Rev. - Date: 11/02/20
BODY CROSS
MEMBER
WOODEN SPACER
BODY CROSS
MEMBER
WOODEN SPACER
