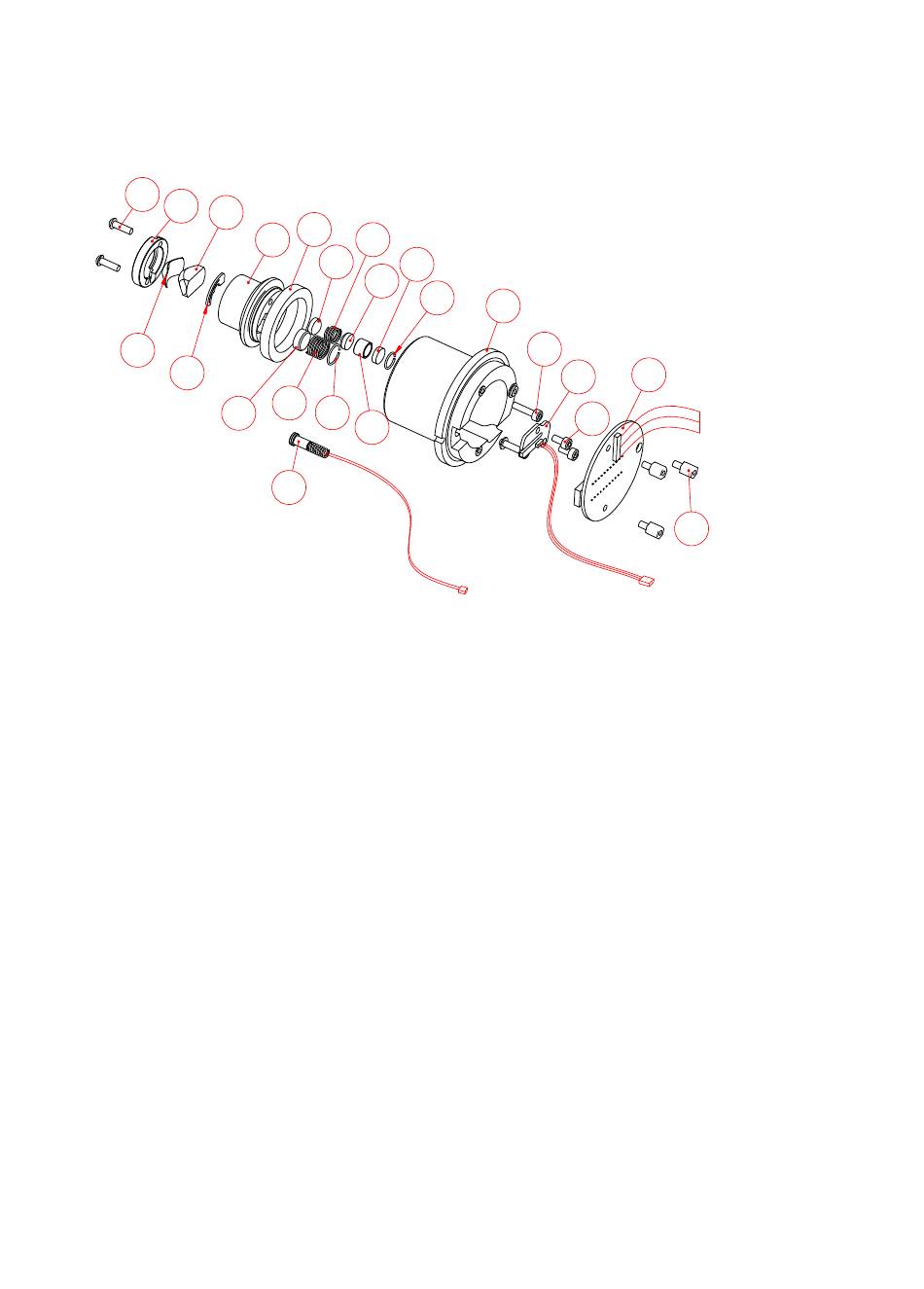

9.8.4 Listado de partes del módulo CORE PR-10012
24
25
27
26
28
33
Item Pcs. Part No. Description
24 2 Screw M3x10 DIN 7380 A2
25 1 Prism support
* 1 PR-9004 H62 prism set
26 1 PR-9003 Prism gasket
27 1 H62 prism
28 1 Prism holder PR-23
29 1 Core tip
30 1 Ceramic insulator PR-23
31 2 Lens 8/10
32 1 Pressure spring 8x6
33 1 Lens 10/60
34 1 Pressure spring 10x13
35 1 Locking ring 10 mm
36 1 LED tube
37 1 Diffuser
38 1 Locking ring 8 mm
30
29 32
31
37
31
38
34
35
36
46
Item
40
41
42
43
44
45
46
Manual de Instrucciónes PR-23
40
41
42
43
Pcs. Part No. Description
1 Camera body
2 Screw M3x12 DIN 912 A2
1 PR-10400 LED card assembly
2 Screw M3x6 DIN 912 A2
1 PR-10200 CCD card
3 Stand off screw M3x6
1 PR-10003 PR-23-C temperature element assembly
44
45
