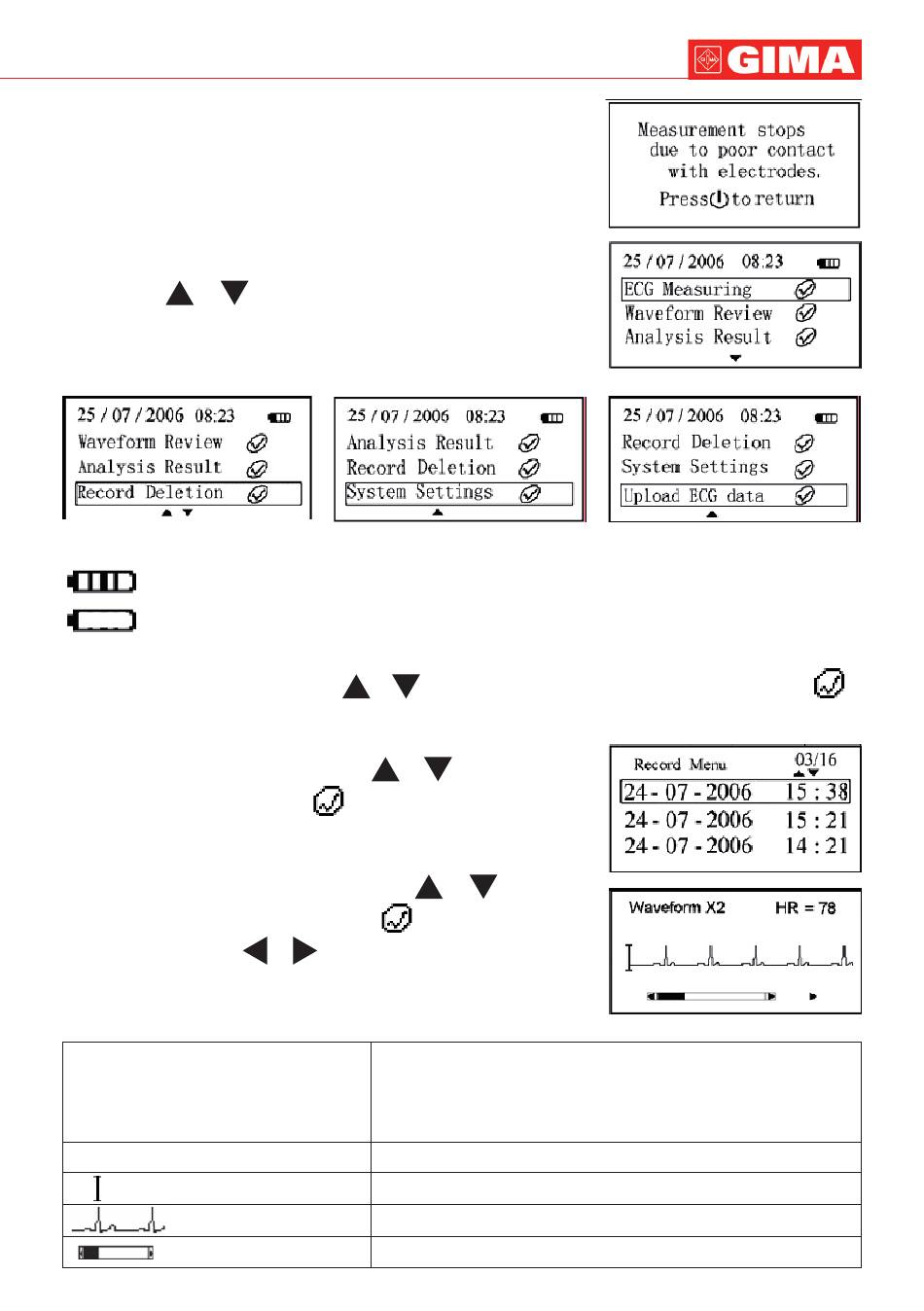

3.2.4 During the measuring preparation, if poor contact with the electrodes,
the screen displays the beside figure. Press the power/back button (or wait
for 6 seconds) to enter the main menu screen.
3.3 Operation of Main Menu
On the measuring preparation screen or on the analysis result screen, press
the power/back button to enter the main menu screen as figure (1). Meanwhile,
press the key
or
(figure (2), (3), (4)).
Figura 2
the display of battery power
indicates low voltage, please replace the batteries with new ones or it will be off automatically.
3.3.1 ECG measurement
On the main menu screen, press the key
measure ECG. Refer to 3.2 for details.
3.3.2 The function of waveform review
1. On the main menu screen, press the key
select Waveform Review and press
the beside figure (The order of the record is that the latest one displays in the
front of the record).
2. On the waveform menu screen, press the key
key to select corresponding record and press
waveform. Press the key
complete waveform. Press the power/back button to return to the previous menu.
On-screen display
X2: ECG waveform amplitude scale
HR = 78
of Navigation key to select corresponding target
or
of Navigation key to select ECG measurement and press
or
to enter the record menu screen as
to view the corresponding
or
of Navigation key to review the current
X1/2
X1
X2
Heart Rate
Scale bar for 1mV amplitude detected ECG
Waveform
Status bar of measurement progress
ENGLISH
Figura 3
of Navigation key to
or
of Navigation
Half size of the nominal scale
Nominal scale
Twice the size of the nominal scale
Figura 1
Figura 4
to
