ENGINE OPERATION
Manual tilt type (*30, 40, 50 only)

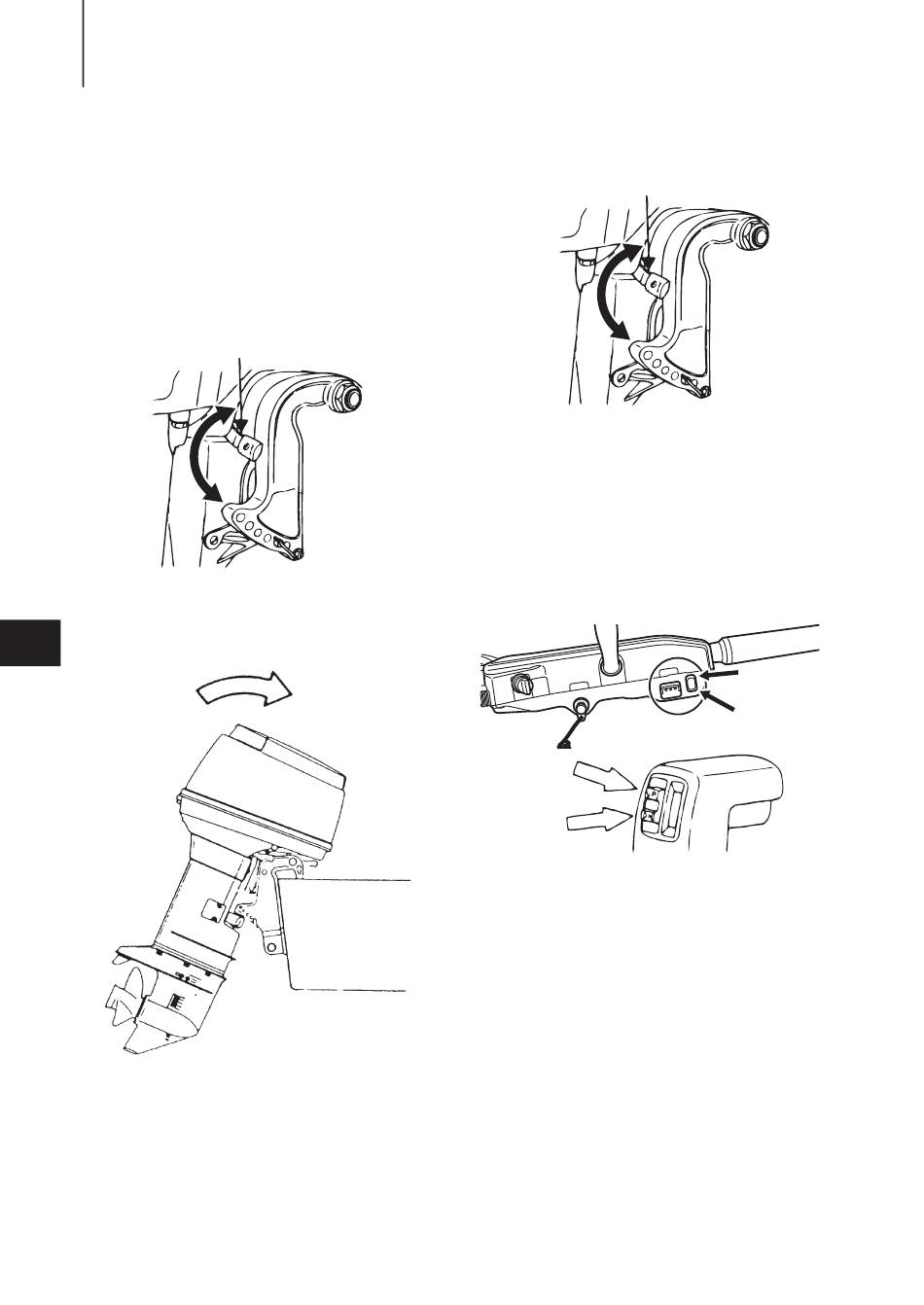

1. Shallow water running position:
Put the reverse lock lever in the tilt up
position, and tilt up the outboard motor
to put the outboard motor in the shal-
low water running position.
3
1. Reverse lock lever
2. Tilt up position
3. Tilt down position
7
2. Return to normal running position:
Put the reverse lock lever in the tilt
down position, slightly lift up the out-
board motor, and then put it down.
1
2
ENOF00059-0
ENOF00668-0
1
2
3
1. Reverse lock lever
2. Tilt up position
3. Tilt down position
ENOM00069-A
Power Tilt type
1. Operate the Power Tilt switch and tilt
the outboard motor up into desired
shallow water running position.
