Recommended sizes for input conductors and line fuses
Input requirement
Volt
230
Supply from power generators
The power source can be supplied from different types of generators. However,
some generators may not provide sufficient power for welding. The generators with
AVR, equivalent or better type of regulation with a min rated power of 10.8 kW are
recommended to supply the power source within it's full capacity.
Start with generator:
1) Start the generator
2) Turn on the power source by mains switch ON
Stop with generator
3) Turn off the power source by mains switch OFF
4) Stop the generator
5.3

Input air connection

Connect your air supply to the inlet connection of the filter. Any cylinder of
compressed air or air from a compressor may be used. The air must be free from
polluting particles. A pressure regulator is provided to ensure the correct air flow rate
on the torch. Set the pressure with the knob on the top of the regulator.
5.4

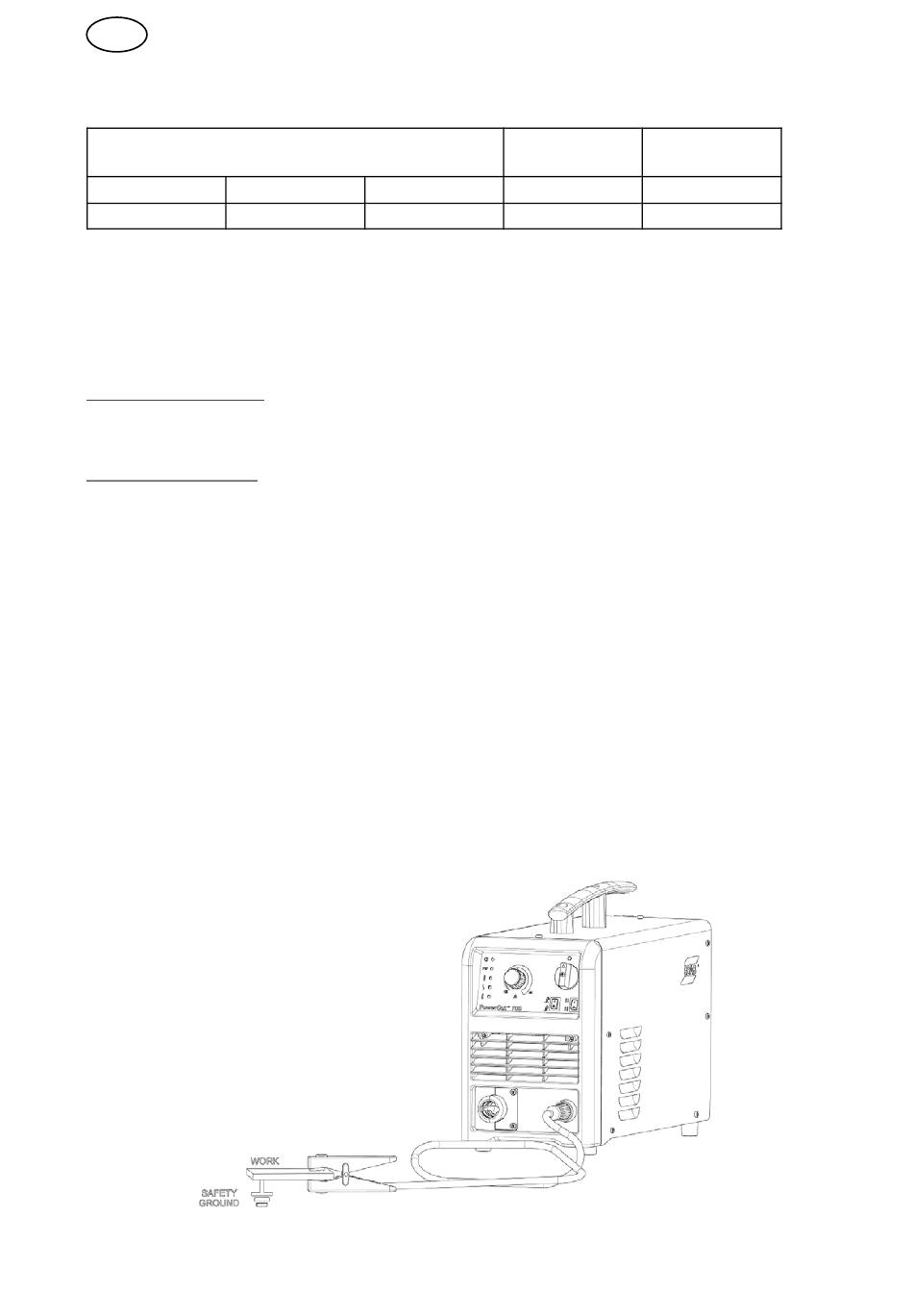

Connection for return cable

Clamp the return cable to the workpiece. Be sure the workpiece is connected to an
approved earth ground with a properly sized ground cable.
bp23aa
Phase Amps
1 41
- 12 -
Input & Gnd Line fuse
conductors
Cu/Awg Amps
8 50
