min 300 mm

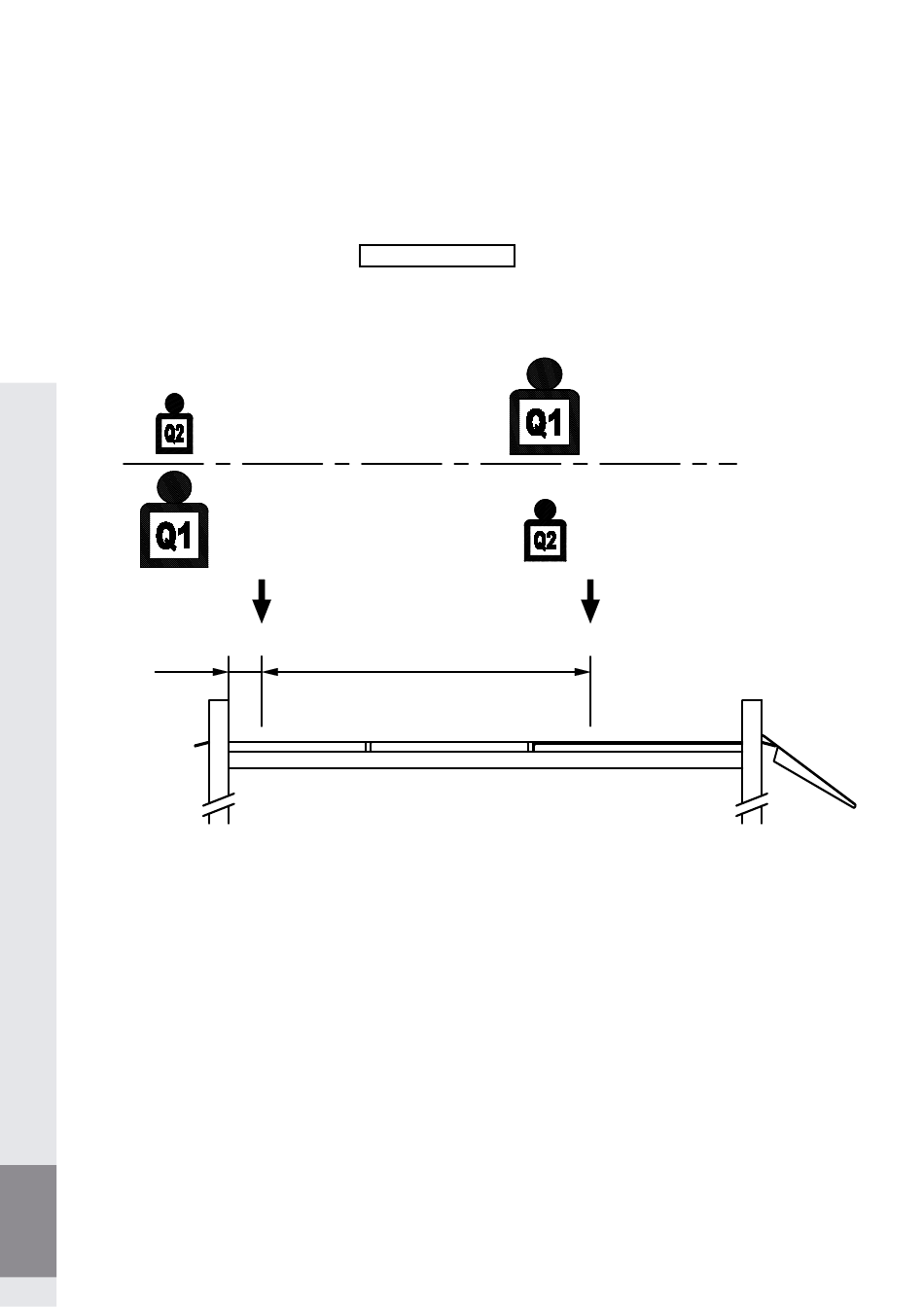

1.3 LOAD DISTRIBUTION

N.B: LOAD ARRANGEMENT CAN BE REVERSED ALWAYS ABIDING TO THE CORRECT PROPORTION AS GIVEN IN FIGURE
min 300 mm
10
min 3000 mm
Q MAX = KG 4000
Q2 LOAD:
MAX 1340 kg
Q1 LOAD:
MAX 2660 kg
min 3000 mm
Q1 LOAD:
MAX 2660 kg
Q2 LOAD:
MAX 1340 kg
Fig.3
