Assembly driven by diesel or gasoline motors

The machine and the motor are installed on a one-piece base.
The Nogueira stand is equipped with special rubber feet which do away for the need of any other base.
FASTENING BASE
1- This base has been designed for diesel or gasoline motors but it also can used for electric motors.

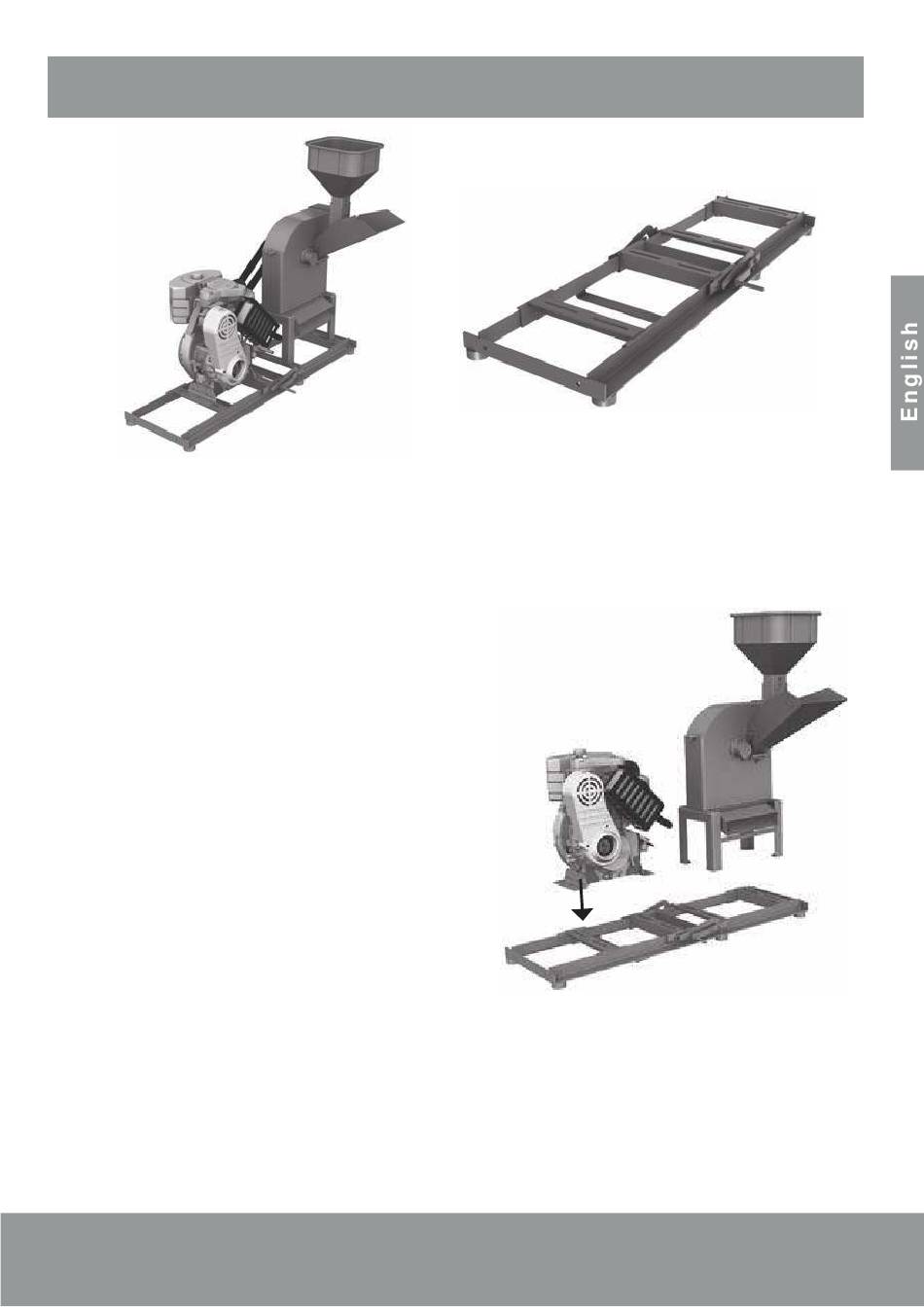

BASIC INSTALLATION SEQUENCE
1- Install the machine and the motor on the base.
The base is already prepared with specific places
for placing the machine and supporting it, as well
as moveable rails for fastening the motor.
Likewise, the motor is placed on the moveable
base.
Once the machine and the motor are placed on the
base, then it is necessary to proceed in aligning
the pulleys.
Following that, install the base feet for the machine
and the motor. Then place the belts and stretch
them adequately, using the lever on the base.
