Operation

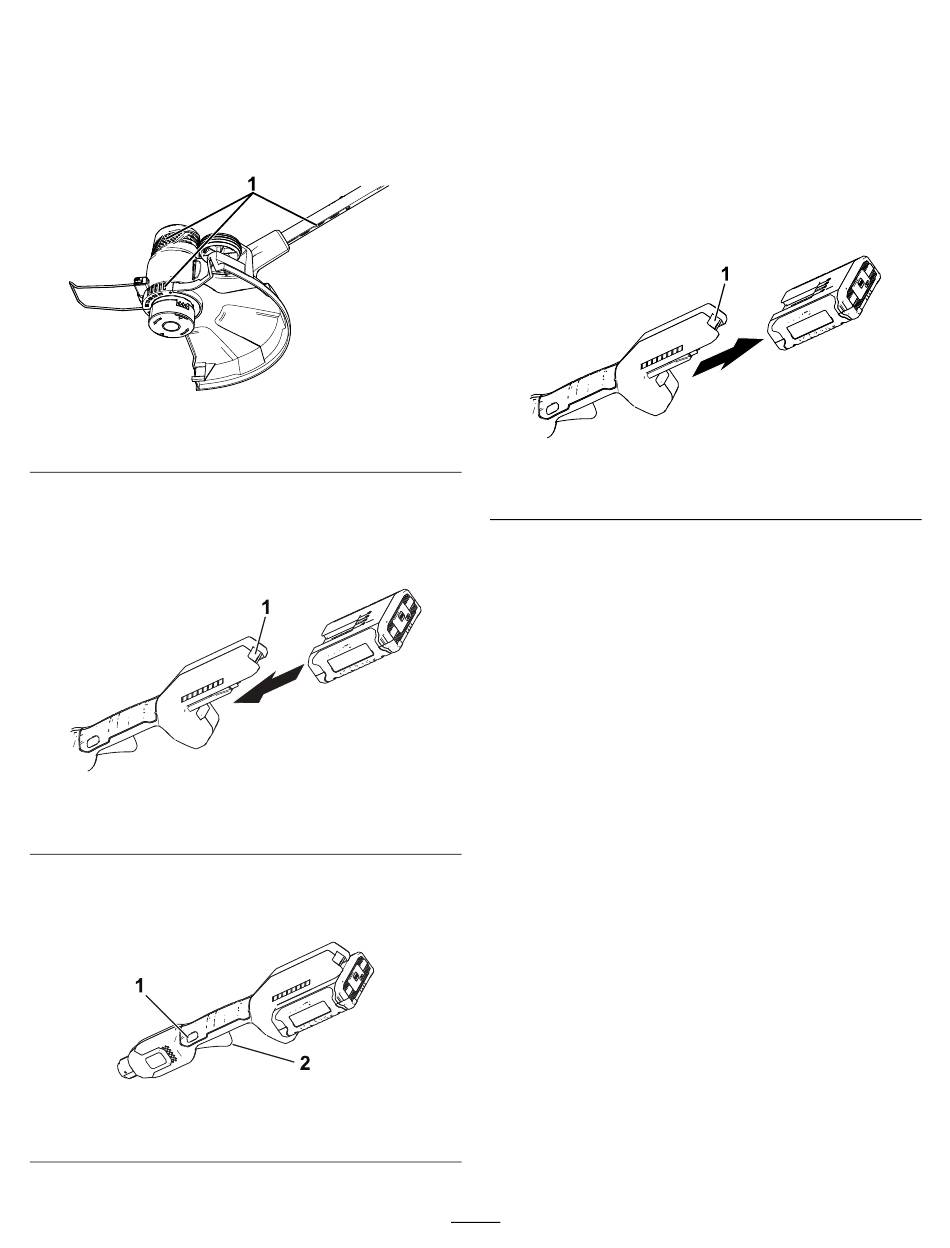

Starting the Trimmer

1. Make sure that the vents on the trimmer are
clear of any dust and debris.
1. Trimmer venting areas
2. Align the cavity in the battery pack with the
tongue on the handle housing
3. Push the battery pack into the handle until the
battery locks into the latch
1. Battery latch
4. To start the trimmer, press the lock-out button,
then squeeze the variable-speed trigger
8).
1. Lock-out button
Figure 6
(Figure 7).
(Figure 7).
Figure 7
Figure 8
2. Variable-speed trigger

Stopping the Trimmer

To stop the trimmer, release the trigger.
Removing the Battery Pack
from the Trimmer
Press the battery latch on the machine to release the
battery pack and slide the battery pack out of the
machine (Figure
g194612
1. Battery latch
g189881
(Figure
g189886
11
9).
Figure 9
g192774
