ADJUSTMENTS
TO ADJUST THE SLIDING TABLE
See Figure 57.
If the table doesn't slide smoothly, seems too loose on the
frame, moves side to side, or is visibly off track, adjustments
may be required.
 Remove frame and sliding table from the saw.
 Turn the frame and sliding table upside down and locate
the adjustable rollers.
 Loosen the adjutsment and pivot screws.
NOTE: The adjustment screws are seated inside slots in
the bracket.
 Move the brackets in or out until the rollers are touching
the frame rails. Tighten adjustment screws and pivot
screws.
 Move the sliding table along the frame to ensure that the
rollers are sliding properly.
 If further adjustments are required, repeat the steps above
until sliding table moves properly.
SLOT
ADJUSTMENT
SCREW
33 — English
ADJUSTMENT
SCREW
PIVOT
SCREW
ADJUSTABLE
ROLLERS
FRAME
RAIL
BRACKET

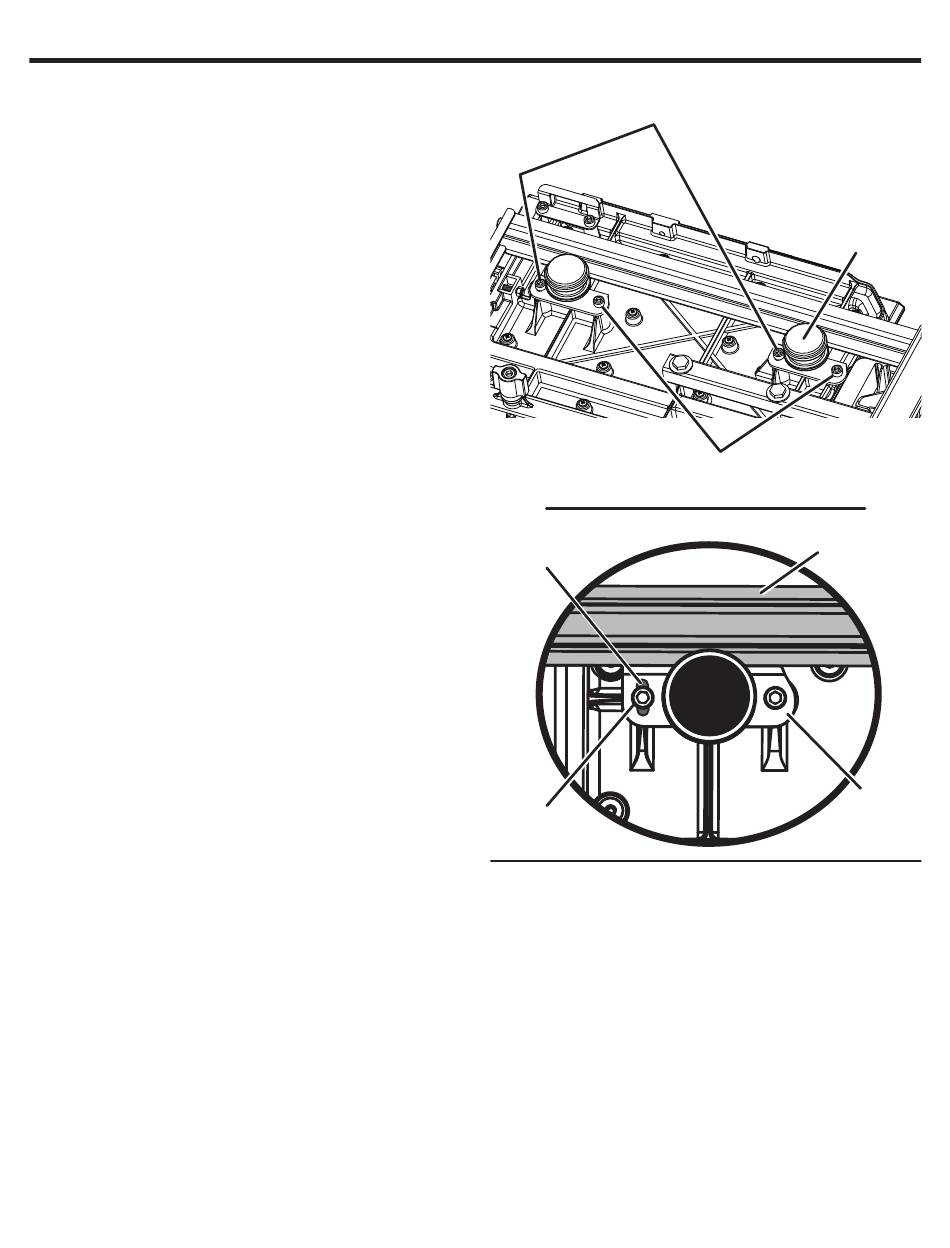

Fig. 57
