1. Mount the tabs (C)
on the base plate (B)
according to the section
profi le (E) height.
2. Mount the HD 2 lift
rotate unit (E) on the
section profi le from
below.
3. Insert the T-bolts into
the section profi les.
4. Gently tighten the
fl ange nuts.
2
2
1

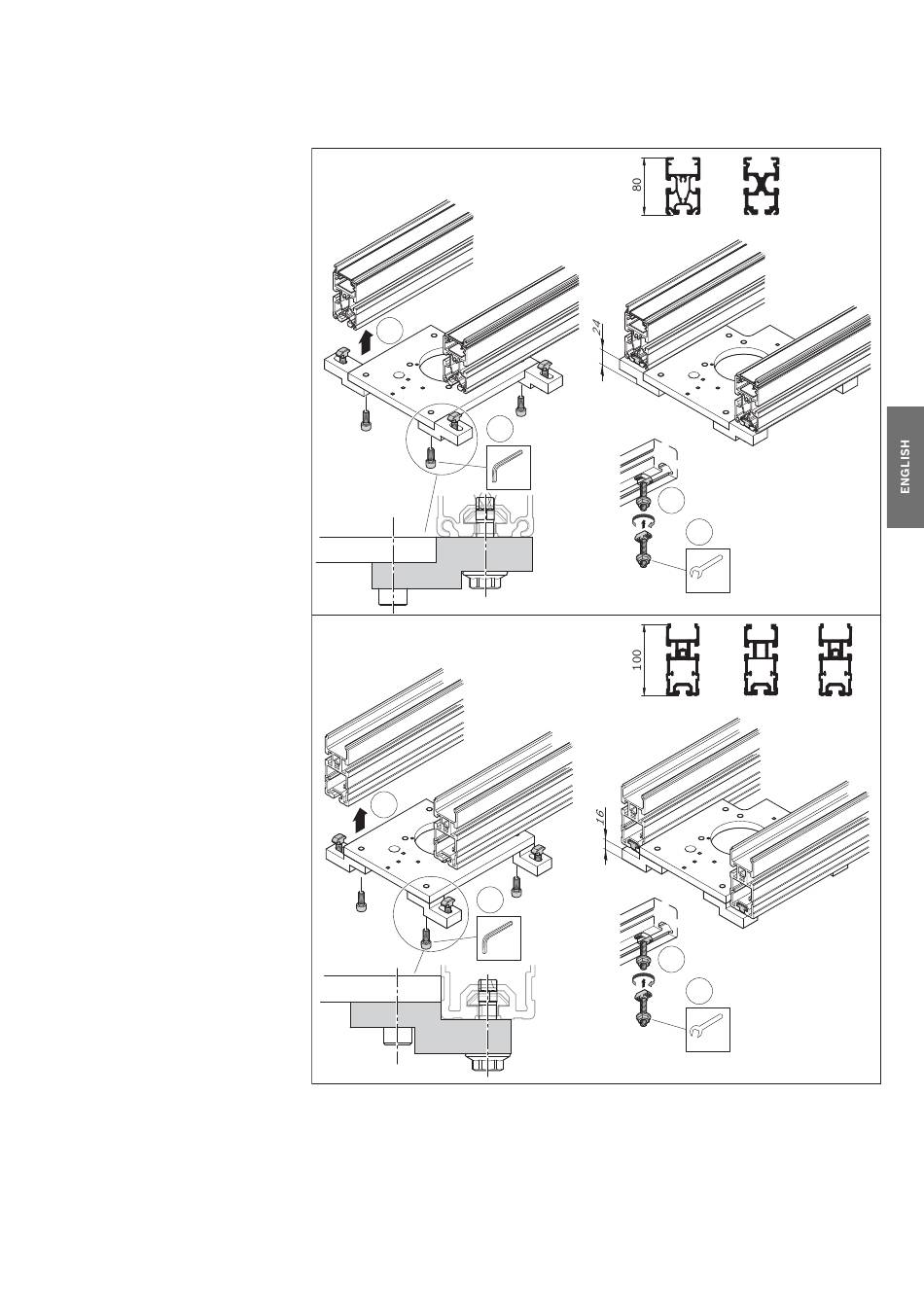

Fig. 5: Assembly on section profi les
SP 2/B
1
SW6
SP 2/B-100
SW6
3 842 358 735/2019-10, MIT: HD 2, Bosch Rexroth AG
Assembly 17/38
SP 2/B-H
3
4
SW13
SP 2/C SP 2/R
3
4
SW13
358 735-04
