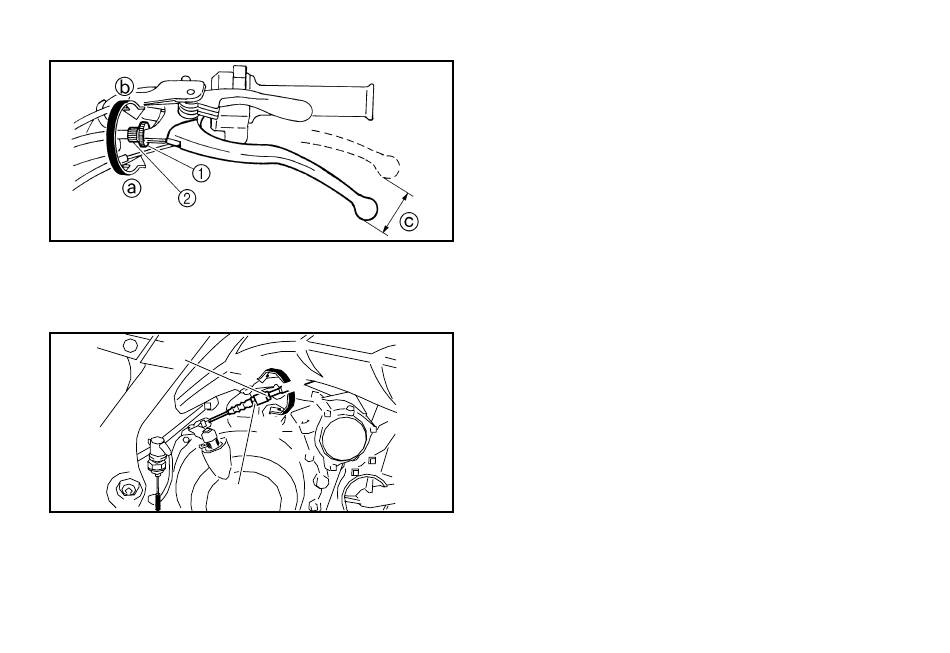

1. Locknut 2. Adjusting bolt
1. Contre-écrou 2. Boulon de réglage
1. Tuerca de bloqueo 2. Perno de adjuste
2
1
1. Locknut 2. Adjusting nut
1. Contre-écrou 2. Écrou de réglage
1. Tuerca de bloqueo 2. Tuerca de adjuste
c. Free play
c. Jeu
c. Juego libre
b
a
EBU07410

Clutch lever free play adjustment

The clutch lever free play should be adjusted to
5–10 mm.
1. Loosen the locknut at the clutch lever.
2. Turn the adjusting bolt at the clutch lever in
direction a to increase the free play or in
direction b to decrease the free play.
3. Tighten the locknut at the clutch lever.
If the specified free play cannot be obtained,
proceed with the following steps.
4. Loosen the locknut at the clutch lever.
5. Turn the adjusting bolt at the clutch lever in
direction a to loosen the cable.
6. Loosen the locknut at the crankcase side.
7. Turn the adjusting nut at the crankcase in
direction a to increase the free play or in
direction b to decrease the free play.
8. Tighten the locknut at the crankcase and
the clutch lever.
8-89
