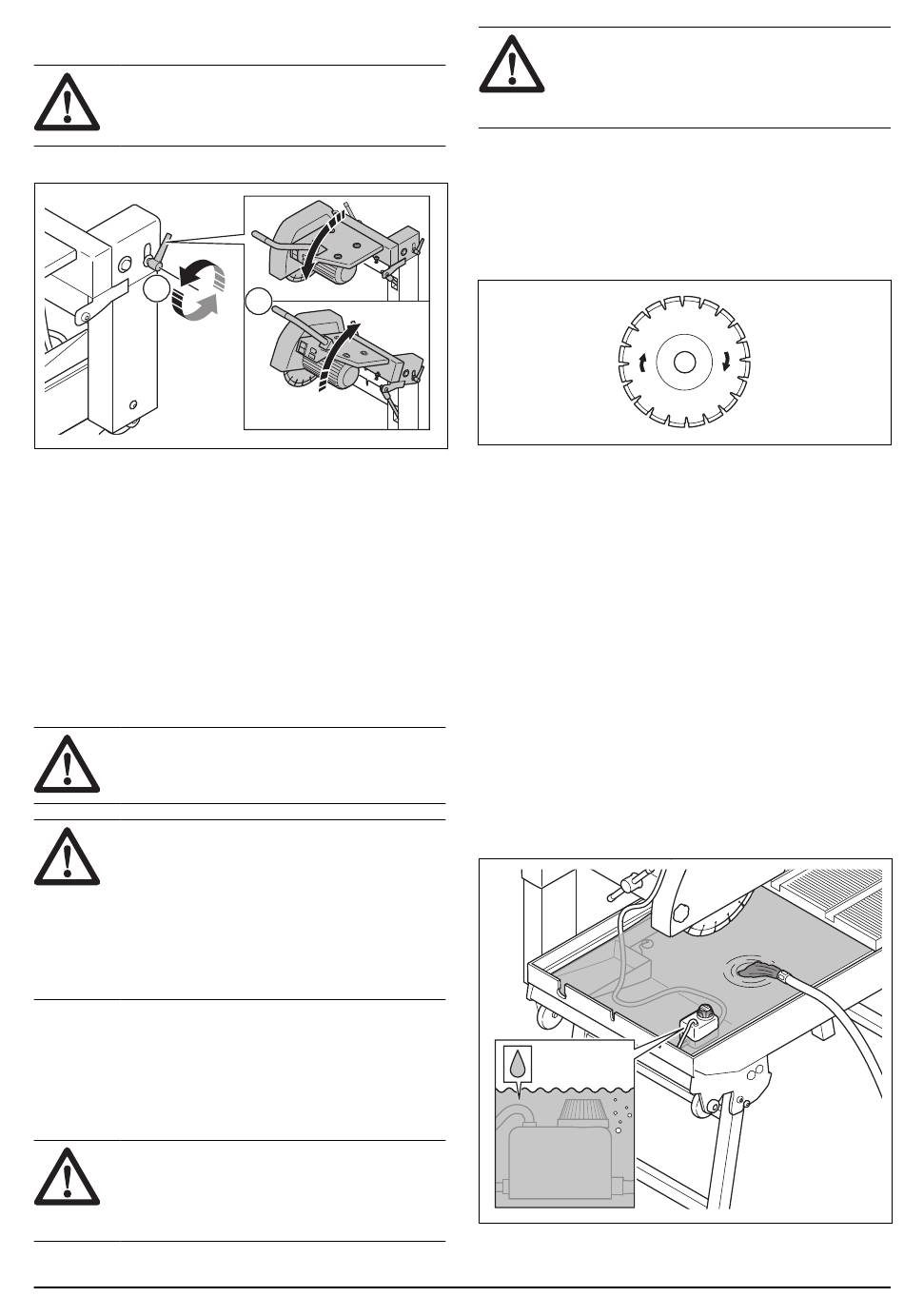

To set the cutting depth

WARNING:
is off and that the power supply is
disconected.
1. Loosen the cutting depth lever (A).
A
2. Move the handle (B) up or down to adjust the cutting
depth.
3. Tighten the cutting depth lever (A) to set the cutting
depth.
To adjust the work height of the product
1. Make sure that the product is in position on flat
ground.
2. Use shim plates to adjust the work height of the
product.

Cutting blades

WARNING:
for other materials than which it is made for.
WARNING:
for wet cutting. The diamond blade must be
applicable to the same speed or a higher
speed than the value given on the product
type plate. Only use diamond blades that
are in compliance with national or regional
standards, for example EN13236 or ANSI
B7.1.
The cutting blade manufacturer gives warnings and
recommendations for the operation and correct
maintenance of the cutting blade. Those warnings are
supplied with the cutting blade.

Diamond blades

WARNING:
very hot when used. A diamond blade that
is too hot gives bad performance, blade
damage and is a safety risk.
2282 - 002 - 07.02.2024
Make sure that the product
B
Do not use a cutting blade
Only use diamond blades
Diamond blades become
WARNING:
blades to cut plastic material. The hot
diamond blade can melt the plastic, which
can cause a kickback.
• Diamond blades have a steel core with segments
that are made of industrial diamonds.
• Diamond blades are used for masonry, reinforced
concrete and stone.
• Make sure that the diamond blade rotates in the
direction of the arrows shown on the diamond blade.
• Always use a sharp diamond blade.
• Diamond blades can become blunt if you use an
incorrect feeding pressure or when you cut materials
such as hard reinforced concrete. If you use a blunt
diamond blade it becomes too hot, which can cause
the diamond segments to come loose.

Water supply

The water supply is used to decrease dust and to keep
the blade temperature down.
The water pump supplies the blade with water.
To fill the frame with water
Make sure that the water level always is above the water
pump.
1. Push the OFF button to stop the product.
2. Fill the frame with water.
3. Make sure that the water pump is below water.
Do not use diamond
11
