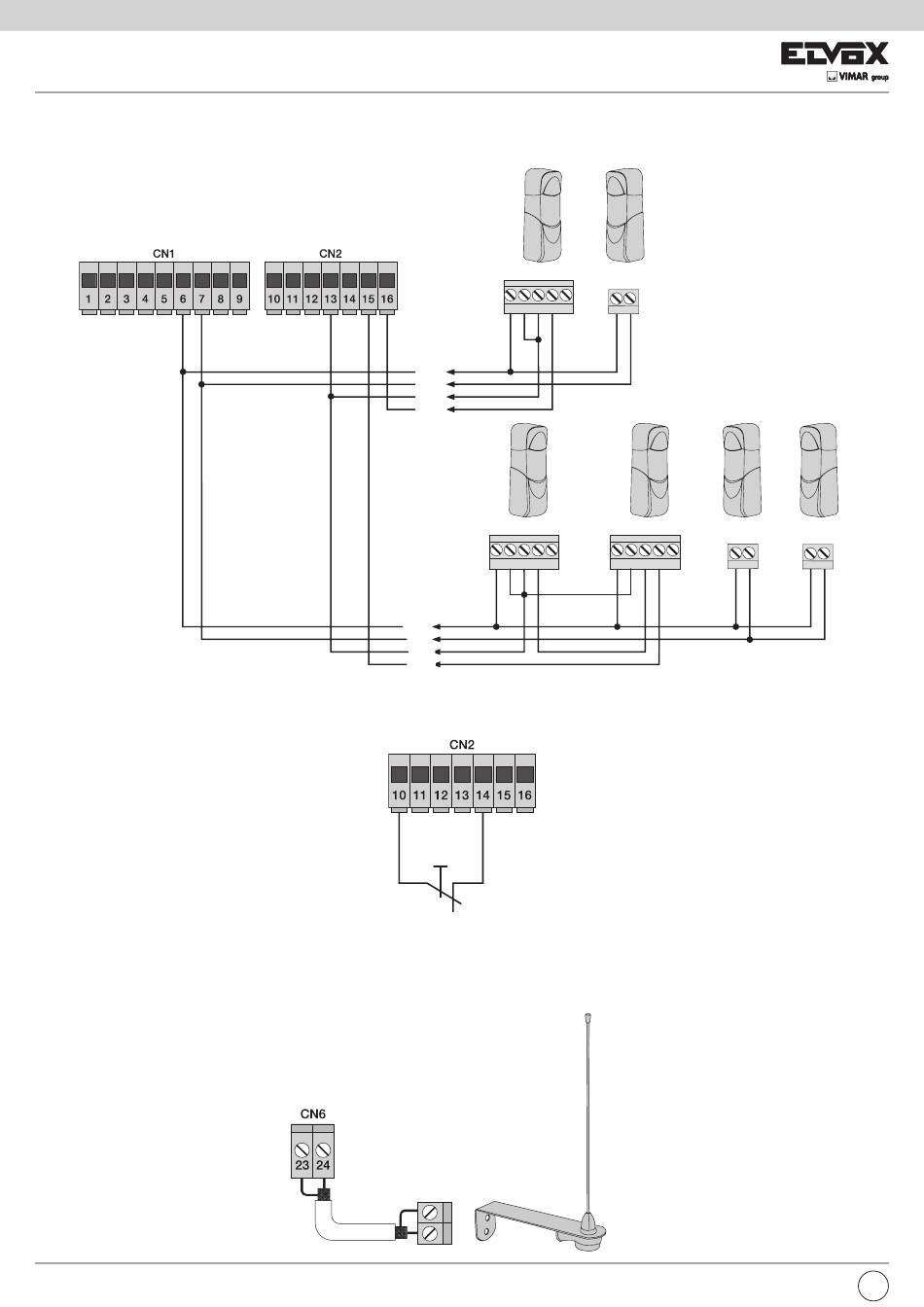

4.6.3 Connecting photocells with photo-test function active
If the photo-test function is activated (the control unit checks the operation of the photocells, see parameter 8), respect the following connection (each time
the motor starts the control unit cuts off power to the transmitter of the photocell to check their operation):
Stop button connection
4.7- Stop button connection, normally closed contact, opening the contact causes the gate to stop and suspends the automatic closing time (when the button
is not engaged, the STOP LED should be lit), if not used then jumper between COM and STOP
N.B. If the system has no photocells, sensitive edges or stop buttons (the PHOTO, STPA and STOP inputs must be jumpered with the common,
terminal 13), do not activate the photo-test function.
4.8 - Connecting the aerial
The 17cm rod is supplied pre-wired, to increase the range connect the aerial art. ZL43, as shown in the figure:
30 30
RX
+ - C NC NA
STPA as
Safety come
internal photocell
fotocellula interna
+
- -
COM
COM
STPA
SAFETY
RX1
+ - C NC NA
+
- -
COM
COM
STPA
FOT
Normally closed button
TX
+ -
RX2 TX1
+ - C NC NA + -
TX2
+ -
EN
