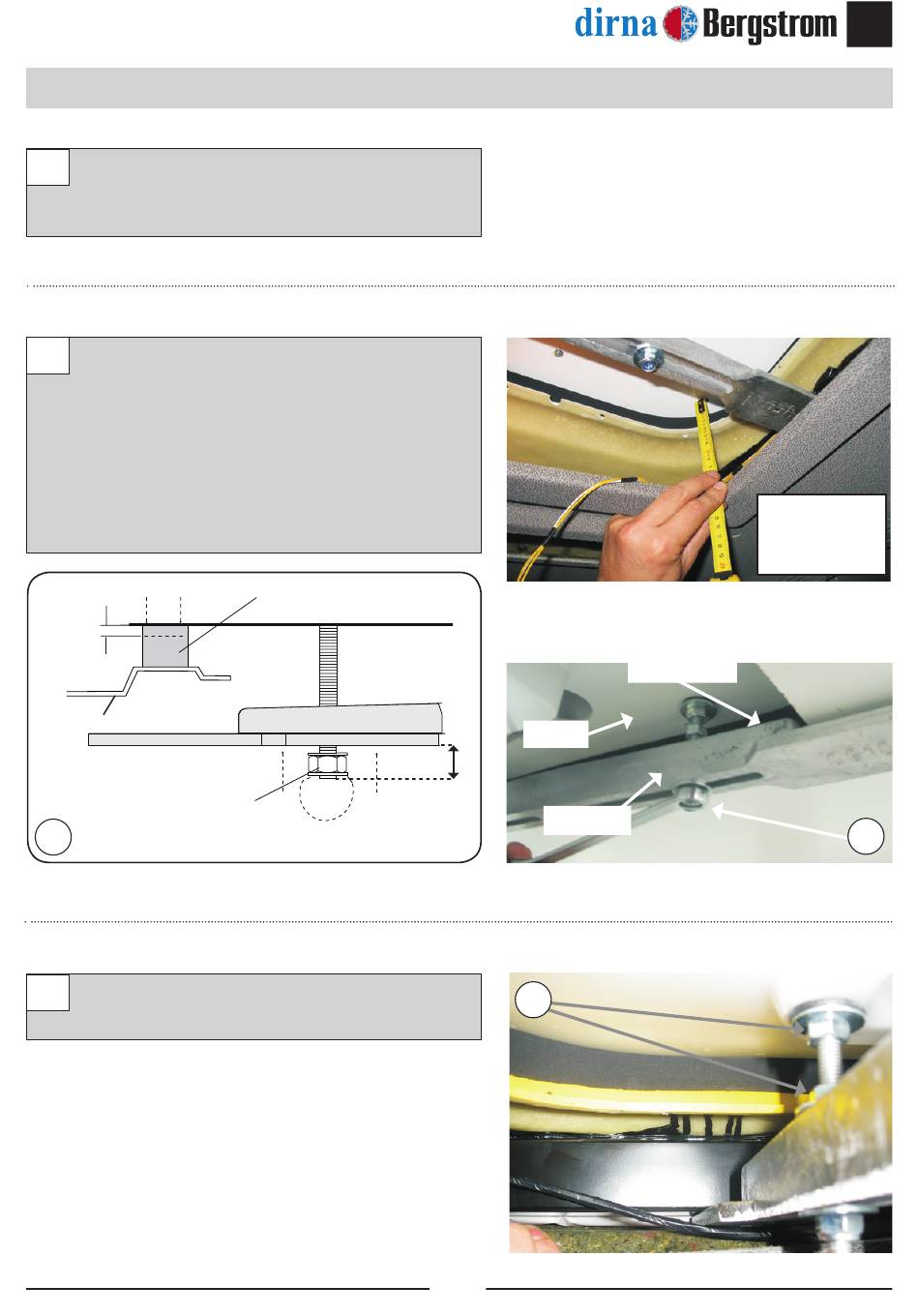

dirna Bergstrom bycool blue line FLAT Instrucciones De Montaje página 41

FLAT
Only for Globetrotter XL cabins (L2H3)
11
Position the console and align the equipment in
the most convenient location in the cabin ceiling.
Once aligned, remove the console.
12
Secure the attachment supports by turning the
nuts to tighten the exterior EPDM seal of the
equipment between 3mm and 6mm.
Important: In order to prevent water from
dripping into the cabin, ensure the EPDM seal is
tight against the base of the Bycool, as shown in
the diagram.
3-6mm.
Cabin ceiling
Tighten the nuts until the
rubber seal is secure
12
between 3 and 6 mm.
13
Tighten (4) the M8 nuts on the bracket and (4)
the base of the Bycool.
EPDM seal
10 mm*
(*) (approx after tightening)
Base
Support
13
41
Check the
compression of the
EPDM seal using
a flexometer in the
four corners.
EPDM seal
EN
®
12
