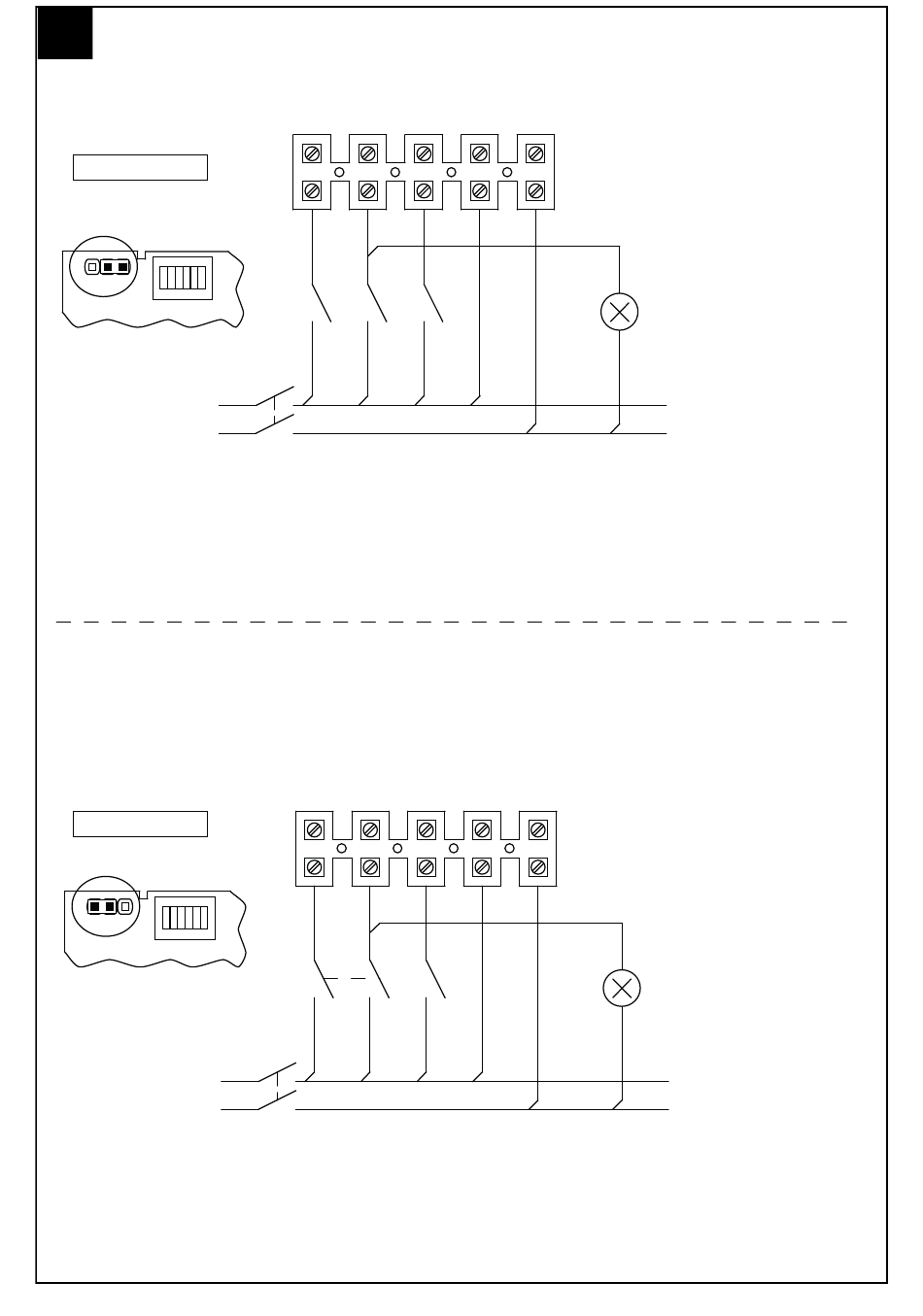

NORMAL MODE

Electronic board
L
N

COMFORT MODE

Electronic board
L
N
A
(*) (**)
1 2 3
B C D
F
A
(*) (**)
1 2 3
B C
E
(*) Prese nce of voltage. Connect room light only by means of two-pole sw itch.
(**) Time d input
L N
L N
QE 60/35 LL TP
A Main terminal block
B 35m3/h switch
C 60m3/h switch
D disable switch
E
E Room light
F Main bipolar switch
A Main terminal block
B 35m3/h - 60m3/h
double pole switch
C disable switch
D D Room light
E Main bipolar switch
