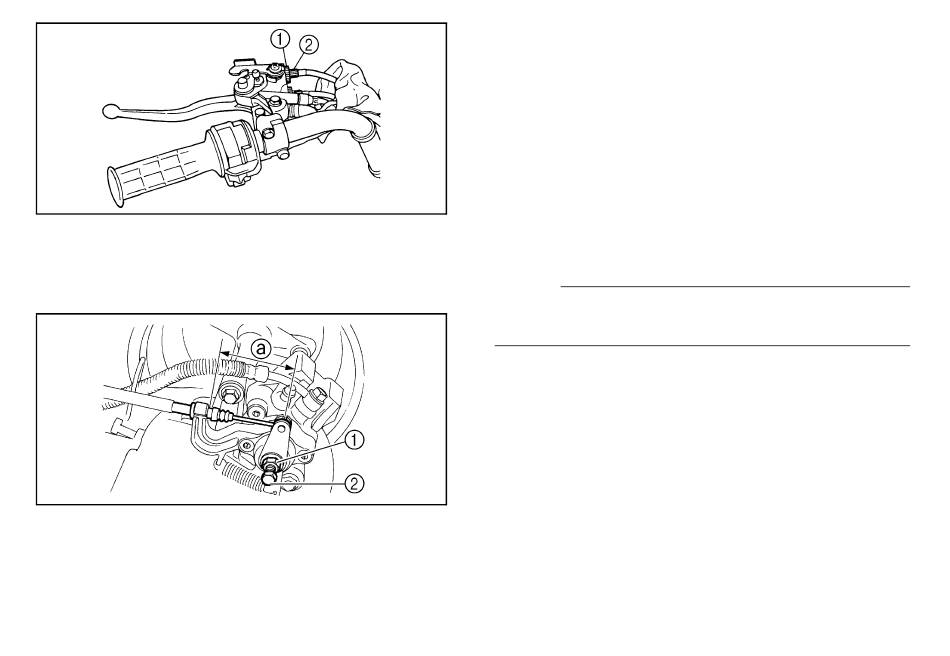

Parking brake adjustment

Parking brake adjustment may be required if the
parking brake does not hold properly.
1. Fully loosen the parking brake cable adjust-
ing bolt locknut and the adjusting bolt on the
clutch lever.
2. Loosen the adjusting bolt locknut and the ad-
justing bolt on the rear brake caliper.
3. Turn the adjusting bolt on the clutch lever so
that cable length a is 64 ~ 68 mm.
NOTE:
If the cable cannot be adjusted to specification,
consult a Yamaha dealer.
_
4. Tighten the adjusting bolt locknut on the
clutch lever.
