ASSEMBLY
FEET
SEE
E
FIGURE
10
FIGURE 11
UPPER STAND ASSEMBLY

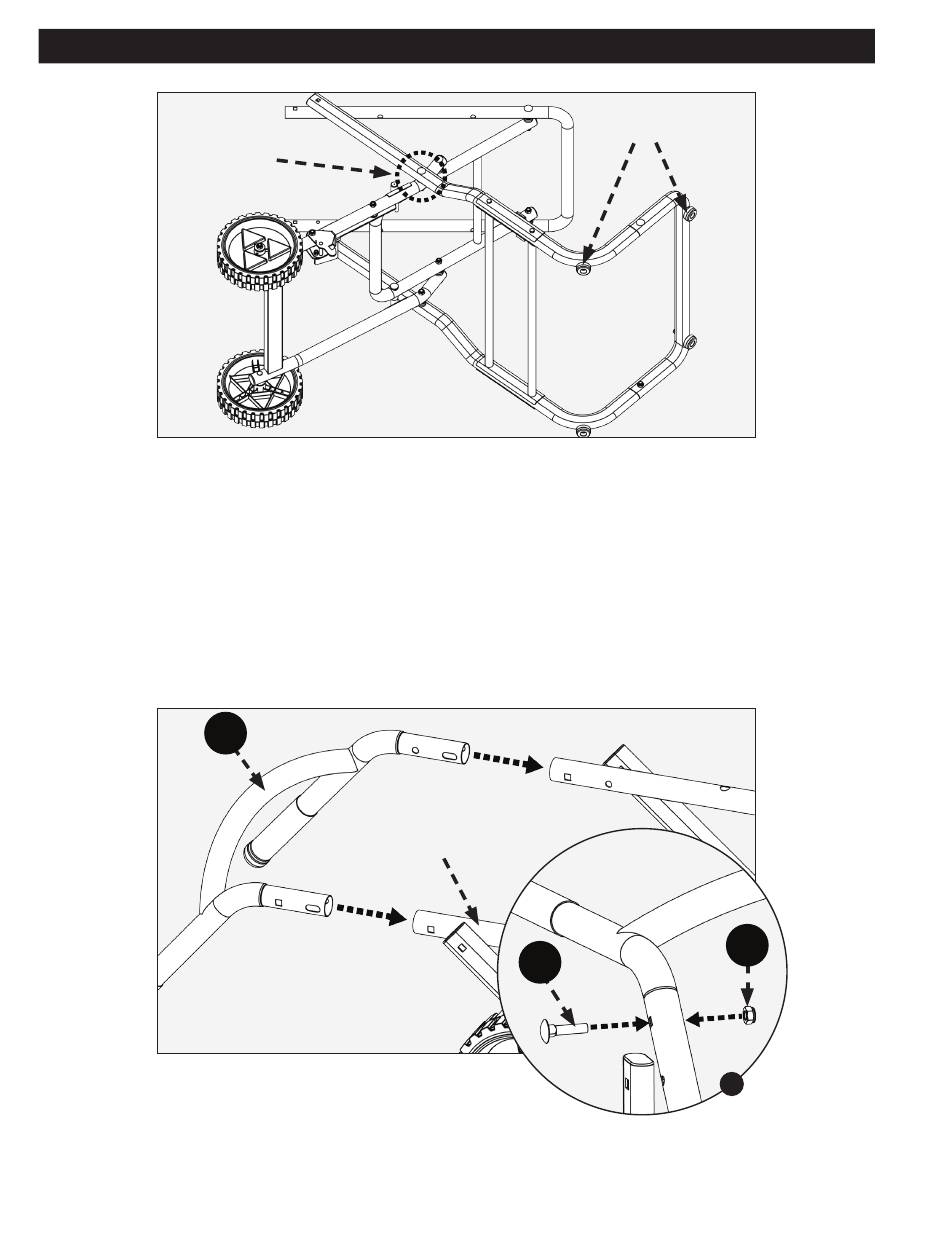

Insert the stand handle (B) into the upper stand assembly as shown in Figure 12.
Insert M8 x 35 carriage screw (ff) into the square hole at the end of the upper stand assembly (square hole at end of tube
see Figure 12a) secure carriage screw (ff) with M8 Locknut (dd). Repeat this step on the other side of the handle.
B
UPPER
STAND
ASSEMBLY
dd
ff
a
FIGURE 12
