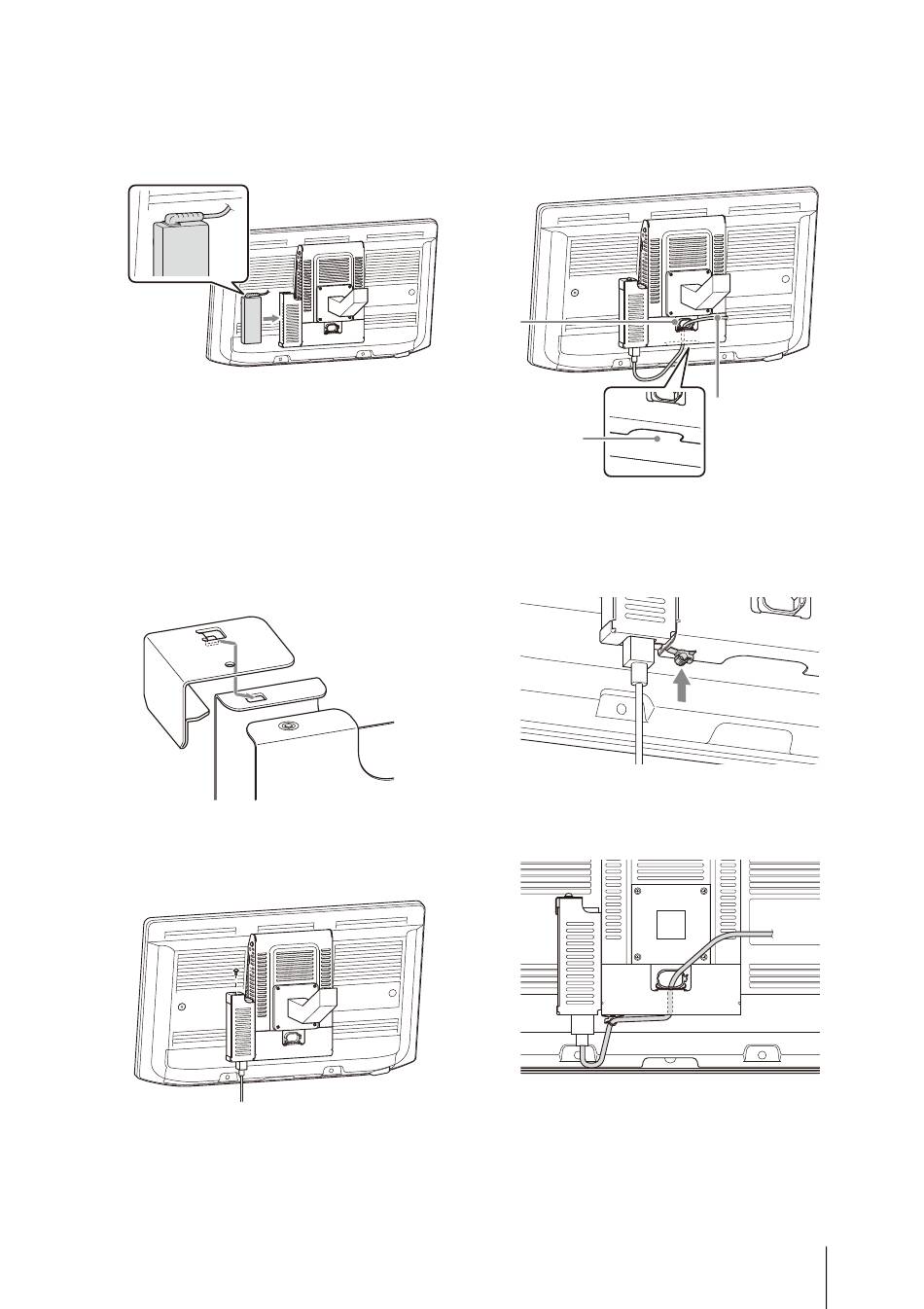

Insert the AC adaptor, without the
power cable connected, into the
AC adaptor bracket.
4
Connect the power cable to the
AC adaptor.
5
Insert and slide the protruding
part of the lid of the AC adaptor
bracket into the hole in the AC
adaptor bracket, as shown in the
following diagram.
6
Attach the lid using the screw
removed in step 1.
7
Route the AC adaptor power
cable through the clamp (A) and
the hole (B) in the cable cover.
(A)
(B)
8
Attach the wiring clamp to the
hole on the AC adaptor side of the
cable cover.
9
Route the AC adaptor power
cable through the wiring clamp.
Power cable
